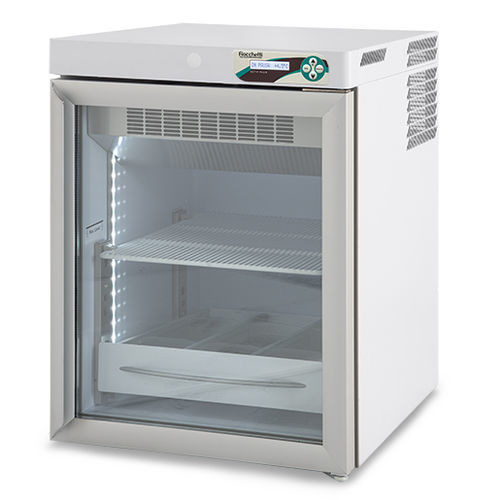

Pharmacy refrigerator MEDIKA 100 ECT-F PLUS

1-doorwith glass doorwith forced air cooling

Product overview
The MEDIKA 100 ECT-F PLUS is a compact undercounter refrigerator for medicines and vaccines with a tempered anti-fog, low-emissivity glass door and a positive temperature range. Designed for pharmacies, laboratories, nursing homes, hospitals and private clinics, it offers adjustable internal compartments and reversible door opening. The door features a full-length ergonomic handle, magnetic gasket on four sides, automatic lock with return spring and a 90° door stop. Available in antibacterial-treated white plastified steel or with 18/10 AISI 304 stainless steel interior.

Key product highlights

• Temperature range: +2 / +15 °C
• Gross capacity (header): 126 L (4.45 cu ft)
• Nominal capacity: 100 L (3.53 cu ft) — Net capacity: 96 L (3.40 cu ft)
• External dimensions (W×D×H): 52 × 63.5 × 71 cm
• Series / Controller: MEDIKA - ECT-F PLUS
• Code on page: MED0103

Structure and refrigeration

• Internal dimensions (W×D×H): 44 × 51.6 × 42.1 cm
• Monocoque construction in white plastified non-toxic steel with certified antibacterial treatment or internal 18/10 AISI 304 stainless steel; rounded corners and tub-shaped bottom
• Injected high-density polyurethane insulation (43 kg/m³), thickness 40 mm; CFC-free water-based injection
• Feet: 4 adjustable feet H = 1.5 cm
• Internal full-height LED lighting
• Professional forced-air ventilation refrigeration; automatic adaptive defrost with condensate evaporation

ECT-F PLUS microprocessor controller
Display resolution 0.1 °C; accuracy ±0.3 °C. Backlit 16-character alphanumeric LCD (customizable in 5 languages) and 4 membrane keys with guided messages. Features password protection for power/set-point changes, configurable display modes, backup battery for power-failure alarm (up to 48 h), min/max temperature recording, storage of alarm events and potential-free dry contact for remote alarms. Signals multiple alarm types including high-temperature events due to power failure.

Refrigerator technical data

• Refrigerant: R290
• Energy consumption: 0.5 kWh / 24 h
• Power absorption / Current: 0.14 kW / 0.9 A; Inrush current: 2.5 A
• Noise level: < 40 dBA
• Heat rejection (EN 12900): 20 W
• Max shelves: 2 (wire shelves 40 × 47 cm)
• Max drawers: 3; drawer inner dims with dividers: 10 × 45 × 7.5 cm (3 lanes); without dividers: 33 × 45 × 7.5 cm

Accessories available on request

• Lock with key
• External terminal board with dry contacts for ECT-F PLUS
• Antifreezing safety device
• DIN 13277 conformity (for ECT-F PLUS)
• Temperature chart recorder
• Shelves and pull-out aluminum drawers (models 100-140-280-300)
• Plexiglass fronts for drawers
• Wheels kit (2 with brakes) and unidirectional rollers
• Internal power socket; access ports Ø 35 mm and Ø 15 mm
• Humidity sensor; PT100 probe (free contacts)
• Power supply options: 220V/1~/60Hz or 115V/1~/60Hz; voltage stabiliser; wooden crate packaging

Technical specifications

• Model: MEDIKA 100 ECT-F PLUS
• Brand: Fiocchetti
• Temperature range: +2 / +15 °C
• Gross / Nominal / Net capacity: 126 L / 100 L / 96 L
• External dimensions: 52 × 63.5 × 71 cm
• Internal dimensions: 44 × 51.6 × 42.1 cm
• Insulation: injected polyurethane 43 kg/m³, 40 mm thickness
• Refrigerant: R290; Energy consumption: 0.5 kWh/24 h
• Noise: <40 dBA; Heat rejection EN12900: 20 W
• Controller: ECT-F PLUS (0.1 °C resolution, ±0.3 °C accuracy, backup battery up to 48 h, dry contact for remote alarms)
