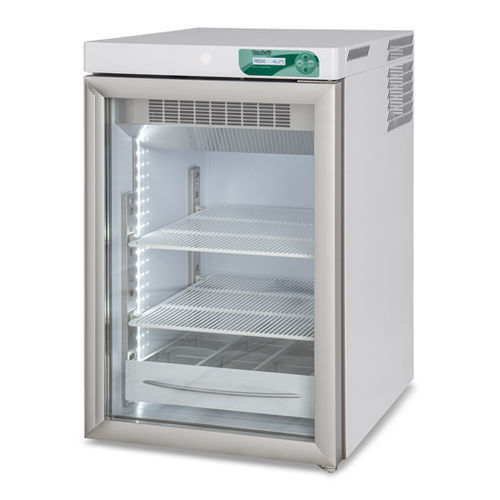

Pharmacy refrigerator MEDIKA 140 ECT-F

1-doorwith glass doorwith forced air cooling

Short description
Small undercounter refrigerator for drugs and vaccines with glass door and positive temperature range +2 / +15 °C, designed for pharmacies, laboratories, hospitals and private clinics.

MEDIKA series - design and door
The MEDIKA® pharmacy refrigerators feature a clean, functional design with a tempered triple-layer glass door (anti-fog, low emissivity) and anodized aluminium profiles. Full-length ergonomic handle. Magnetic gasket sealing on all four sides. Automatic return lock and door stop at 90°. Reversible door opening.

Interior and usability

• Adjustable compartments to optimise storage for drugs and vaccines
• Full-height internal LED lighting for clear visibility
• Inner bottom with rounded corners for easy cleaning and spill containment
• Customisable internal fittings: shelves, drawers and dividers available

Controller and alarms

• Controller: ECT-F microprocessor
• Temperature display resolution: 0.1 °C; accuracy ±0.3 °C
• 16-character backlit alphanumeric LCD, configurable in 5 languages
• Keyboard: 4 membrane keys; configurable display modes
• Password protection for power on/off and set-point changes
• Alarms: multiple temperature alarm types and event log (12 records)

Accessories (available on request)

• Lock with key
• DMLP digital monitor
• DMLP printer
• Shelf for models 100-140-280-300
• Pull-out aluminium drawer with dividers for models 100-140-280
• Pull-out aluminium drawer without dividers for models 100-140-280
• Plexiglass front for drawers
• Wheels kit (2 with brakes) for models 100-140-280
• Undirectional rollers
• Internal power socket
• Access port ø 35 mm with stopper
• Port hole ø 15 mm
• Humidity sensor
• PT100 probe (free contacts)
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Wooden crate packaging

Technical specifications

• Model: MEDIKA 140 ECT-F
• Intended use: storage of drugs and vaccines at positive temperature
• Temperature range: +2 / +15 °C
• External dimensions (W x D x H): 52 x 63.5 x 83 cm
• Internal dimensions (W x D x H): 44 x 51.6 x 56 cm
• Capacity: nominal 140 L; net 128 L (additional nominal value listed: 153 L)
• Insulation: injected PUF at 43 kg/m3, water-foam based, CFC-free; thickness 40 mm
• Structure: monocoque; exterior/interior plasticized white steel with antibacterial film or inner AISI 304 stainless steel; inner rounded corners; 4 feet H = 1.5 cm
• Internal lighting: full-height LED
• Refrigeration: professional ventilated, refrigerant R290
• Defrost: automatic adaptive with condensate evaporation
• Energy consumption: 0.6 kWh/24h
• Power / current: 0.14 kW / 0.9 A; inrush current 2.5 A
• Noise level: <40 dBA
• Heat rejection (EN 12900): 20 W
• Max shelves: 3 (wire shelf size 40 x 47 cm)
• Max drawers: 3; drawer internal dimensions with dividers (each compartment): 10 x 45 x 7.5 cm; without dividers: 33 x 45 x 7.5 cm
