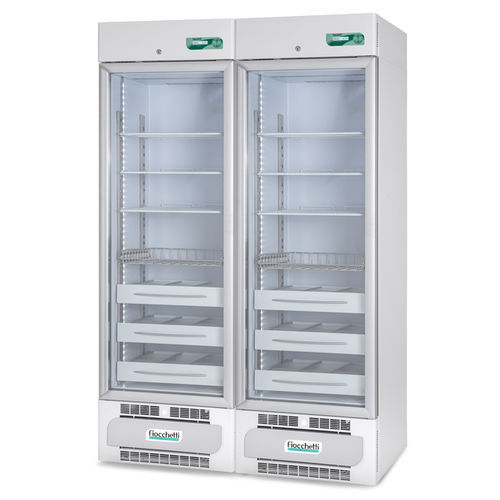

Pharmacy refrigerator MEDIKA 2T 800 ECT-F

for hospitalslaboratoryfor vaccines

Overview
Model composed of 2 adjacent biological refrigerators of 400 L each, with two opposite glass doors, two displays and positive temperature in both compartments. Ideal for storage of medicines and vaccines in pharmacies, hospitals and laboratories.

Main data

• Temperature range: +2/+15°C
• Total capacity / litres: 694 L (24.51 cu ft)
• Nominal capacity: 400+400 L (14.12 + 14.12 cu ft)
• Net capacity: 347+347 L (12.26+12.26 cu ft)
• External dimensions (W x D x H): 1200 x 66 x 196 cm
• Internal dimensions (single module): 50 x 48.5 x 140 cm (x2)
• Electronics type: ECT-F

Construction and refrigeration

• Insulation: injected polyurethane foam with very high density (43 kg/m3), CFC-free, water-based ecological injection.
• Insulation thickness: 70 mm rear / 50 mm sides.
• Structure: one-piece cabinet in white plastic-coated non-toxic steel inside/outside with certified antibacterial treatment or internal AISI 304 18/10 stainless steel. Rounded corners and basin-shaped bottom.
• Mobility: 4 unidirectional rollers included and two front feet for stability.
• Interior lighting: full-height LED.
• Refrigeration type: professional forced-air ventilation.
• Defrost: automatic, adaptive with evaporation of condensate water.

ECT-F electronic controller

• Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C.
• 16-character backlit alphanumeric LCD display, configurable in 5 languages; display configurable in four reading modes.
• Keypad: 4 membrane keys; password option to protect power on/off and set-point changes.
• Alarms: signals three main types of temperature alarm and records 12 events.

Refrigerator technical data

• Refrigerant type: R290
• Consumption: 0.7 + 0.7 kWh/24h
• Power absorbed / Current: kW 0.17 + 0.17 / A 1 + 1
• Inrush current: A 3
• Noise level: <45 dBA
• Heat emitted EN 12900: W 30+30
• Max no. of shelves: 7+7 (shelf size: 46 x 45 cm)
• Max no. of drawers: 14+14
• Internal drawer size with dividers (W x D x H) (x n.spaces): 11 x 40 x 7.5 cm (3)
• Internal drawer size without dividers (W x D x H): 39 x 40 x 7.5 cm
• Max no. of wire drawers h=62 mm: 14+14 (wire drawer internal size h=62 mm: 43.5 x 40.5 cm)

Accessories available on request

• Lock with key
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless shelf for models 170-200-250-400
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Sliding wire drawer on guides for models 170-200-250-400
• Plexiglass front riser for drawer
• Lockable drawer for narcotics
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for models 170-200-250-400
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Crate packing

Features / technical specifications

• Series / product name: MEDIKA 2T 800 ECT-F
• Application: storage of medicines and vaccines (pharmacy, hospital, laboratories)
• Configuration: 2 side-by-side refrigerators, opposite glass doors, 2 compressors, 2 displays with alarms
• Temperature range: +2/+15°C
• Nominal capacity: 400+400 L; net capacity: 347+347 L; total volume: 694 L
• External dimensions: 1200 x 66 x 196 cm; internal module dimensions: 50 x 48.5 x 140 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 70 mm (rear) / 50 mm (sides)
• Refrigerant: R290
• Energy consumption: 0.7 + 0.7 kWh/24h
• Power / Current: kW 0.17 + 0.17 / A 1 + 1; inrush A 3
• Noise: <45 dBA
• Defrost: automatic adaptive with condensate evaporation
• Interior lighting: full-height LED
• Internal accessories: shelves and drawers (see specifications above)
