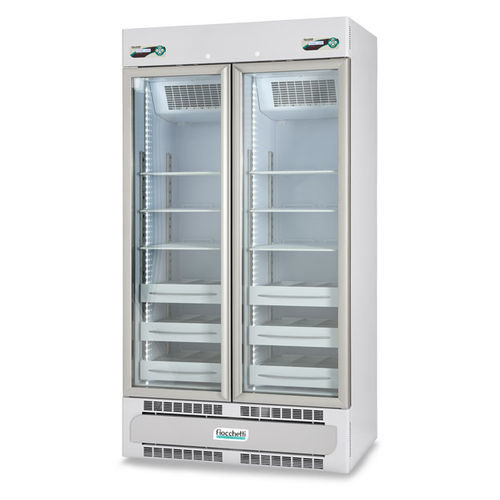

Pharmacy refrigerator MEDIKA 2T 600 ECT-F PLUS

upright2 doorswith glass door

Brief description
Pharmaceutical and vaccine refrigerator with double compartment and dual compressors 600 liters (300+300) with two adjacent glass doors and positive temperature in both compartments, suitable for pharmacies.

Main features

• Double compartment and dual compressor (300+300 L)
• 2 tempered anti-fog, low-emissivity glass doors with anodized aluminum profiles
• Full-length ergonomic handle
• Magnetic gasket on all four sides, automatic closing with return spring and 90° door stop
• Full-height internal LED lighting
• Refrigeration type: professional forced-air
• Defrost type: adaptive automatic with condensate evaporation

Key technical data
Temperature range: +2/+15°C | +2/+15°C
Capacity/Volume: 604 L (300+300 nominal) — net capacity 265+265 L
External dimensions (WxDxH): 104 x 66 x 196 cm
Controller type: ECT-F PLUS

Construction and refrigeration
Internal dimensions: 44 x 48.5 x 140 cm (x2)
Nominal capacity: 300+300 L (10.59+10.59 cu ft)
Net capacity: 265+265 L (9.35+9.35 cu ft)
Insulation type: high-density injected polyurethane (43 kg/m3), CFC-free with water-blown injection.
Insulation thickness: 70 mm rear / 40 mm sides.
Structure: monoblock in white coated steel internal/external with certified antibacterial treatment; rounded corners and sump base. 4 unidirectional rollers included and two front adjustable feet for stability.
Internal lighting: full-height LED.
Refrigeration type: professional forced-air.
Defrost type: adaptive automatic with condensate evaporation.

ECT-F PLUS electronic controller
Temperature display and setting with 0.1°C resolution, accuracy +/- 0.3°C with 16-character alphanumeric backlit LCD display configurable in 5 languages.
Keypad: 4 membrane keys; display configurable in four reading modes; password protection for switch on/off and set-point changes.
Buffer battery for power failure alarm up to 48 hours; min/max temperature memory and 16 event logs, user-resettable; clean contact on the electronic board for remote alarm.

Refrigerator technical data
Refrigerant: R290
Consumption: 1.8 kWh/24h
Power / Current: 0.19 + 0.19 kW / 1.3 + 1.3 A
Inrush current: 3 + 3 A
Noise: <50 dBA
Heat emission EN 12900: 75 W
Max shelf number: 6+6
Shelf dimensions: 40 x 47 cm
Max drawers: 12+12
Internal drawer dimensions with dividers (LxDxH) (x n.spaces): 10 x 45 x 7.5 cm (3)
Internal drawer dimensions without dividers (LxDxH): 33 x 45 x 7.5 cm

Available accessories on request

• Lock with key
• External clean contacts ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for model 600 2T
• Sliding aluminum drawer with dividers for model 600 2T - 300
• Sliding aluminum drawer without dividers for model 600 2T - 300
• Plexiglass front riser for drawer
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe clean contacts
• Power supply 220V/1~/50-60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packing

Notes
Series: MEDIKA 2T®; tempered glass doors according to IEC 61010-1, anti-fog and low-emissivity; fully customizable interiors for pharmaceutical and vaccine stock management.

Technical specifications

• Model: MEDIKA 2T 600 ECT-F PLUS
• Product code: MET0603
• Series: MEDIKA 2T®
• Gross capacity: 604 L (300+300 nominal)
• Net capacity: 265+265 L
• Temperature range: +2/+15°C in both compartments
• External dimensions: 104 x 66 x 196 cm (WxDxH)
• Internal dimensions per compartment: 44 x 48.5 x 140 cm
• Insulation: polyurethane 43 kg/m3; thickness 70 mm rear / 40 mm sides
• Refrigerant: R290
• Consumption: 1.8 kWh/24h
• Power input: 0.19 + 0.19 kW
• Current: 1.3 + 1.3 A
• Noise: <50 dBA
• Control type: ECT-F PLUS - 16-char alphanumeric LCD, 0.1°C resolution, battery backup for alarms (up to 48 h)
• Max shelves: 6+6 (40x47 cm)
• Max drawers: 12+12
• Door type: tempered anti-fog, low-emissivity glass with anodized aluminum profiles
• Structure: white coated steel with antibacterial treatment
