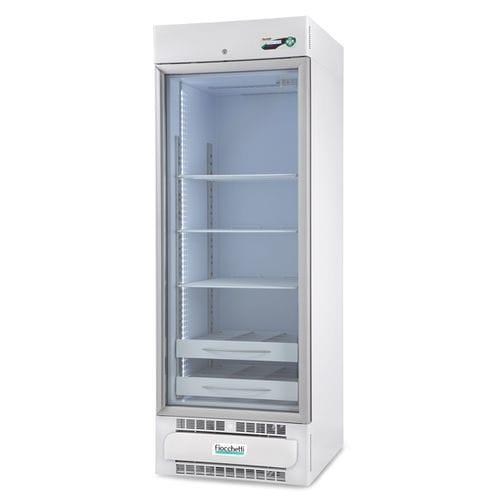

Pharmacy refrigerator MEDIKA 500 ECT-F PLUS

upright1-doorwith glass door

Description
The MEDIKA 500 ECT-F PLUS is a vertical pharmaceutical and vaccine refrigerator designed for controlled storage environments. It features a tempered glass door, adjustable compartments and professional ventilated refrigeration suitable for pharmacies, laboratories, hospital wards and clinics. Available with multiple internal configurations and compliant with international standards.

Main features

• Tempered safety glass door compliant with IEC 61010-1, anti-condensation and low-emissivity glass with anodized aluminum profiles
• Full-length ergonomic handle
• Four-sided magnetic gasket, automatic return spring closing with 90° hold-open; reversible door
• Adjustable shelves and compartments to optimize storage
• Full-height adjustable internal Full LED lighting
• Professional ventilated refrigeration
• Adaptive automatic defrost with condensate evaporation
• Night & Day function for reduced energy consumption

Structure and refrigeration
Single-shell structure in white coated steel with certified antibacterial treatment, optional 18/10 AISI 304 stainless steel interior. Rounded corners and tank base. Includes 4 unidirectional rollers for easy movement and two front adjustable feet for stability.
Injected high-density polyurethane insulation (43 kg/m3), CFC-free, water-blown ecological injection. Insulation thickness: back 75 mm / sides 60 mm.
Internal dimensions and capacity: internal 60 x 58 x 150 cm; nominal capacity 500 L; net capacity 527 L.

ECT-F PLUS controller
Temperature display and setting with 0.1°C resolution, accuracy +/- 0.3°C. Alphanumeric backlit LCD display (16 characters) configurable in 5 languages; 4-button membrane keypad. Backup battery for power-failure alarm up to 48 hours; min/max temperature memory; clean contact on the electronic board for remote alarm. Display configurable in multiple modes. Password protection available for power on/off and set-point changes. Records alarm events (16 events) and resettable min/max temperatures.

Technical data

• Temperature range: +2 / +15 °C
• Refrigerant gas: R290
• Consumption: 1 kWh/24h
• Power input / Current: 0.17 kW / 1 A
• Inrush current: 3 A
• Noise level: <45 dBA
• Heat emission (EN 12900): 40 W
• Max number of shelves: 7
• Shelf dimensions: 56 x 55 cm
• Max number of drawers: 14
• Internal drawer with dividers (L x D x H) (x n.spaces): 15 x 50 x 7.5 cm (3)
• Internal drawer without dividers (L x D x H): 49 x 50 x 7.5 cm

Accessories available on request

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 conformity (for ECT-F PLUS)
• Chart recorder
• Shelf for model 500
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Sliding aluminum drawer with dividers for model 500
• Sliding aluminum drawer without dividers for model 500
• Lockable narcotics drawer
• Plexiglass front riser for drawer
• Wheel kit (2 with brake) for model 500
• Internal power outlet
• Cable gland hole diameter 35 mm with plug
• Hole diameter 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Characteristics / technical specifications

• Model: MEDIKA 500 ECT-F PLUS
• Indicative product code: Cod. MED0503
• Temperature range: +2 / +15 °C
• Nominal capacity: 500 L
• Net capacity: 527 L
• External dimensions (W x D x H): 72 x 76 x 208 cm
• Internal dimensions (W x D x H): 60 x 58 x 150 cm
• Insulation: injected polyurethane 43 kg/m3 (back 75 mm / sides 60 mm)
• Refrigerant type: R290
• Energy consumption: 1 kWh/24h
• Power input: 0.17 kW / Current: 1 A / Inrush: 3 A
• Noise level: <45 dBA
• Heat emission: 40 W
• Refrigeration type: professional ventilated
• Defrost type: automatic, adaptive
• Lighting: adjustable internal Full LED
• Max shelves: 7 (shelf size 56 x 55 cm)
• Max drawers: 14
