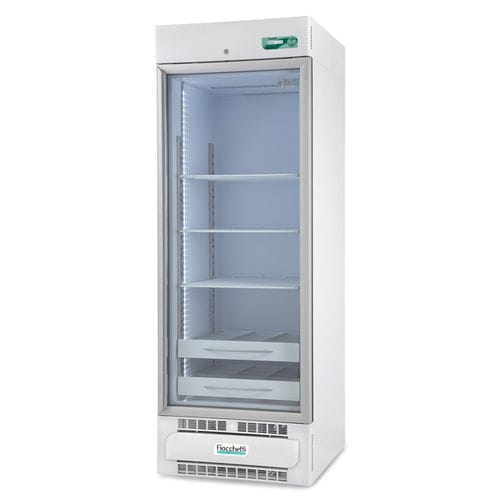

Pharmacy refrigerator MEDIKA 500 ECT-F

upright1-doorwith glass door

Description
Column refrigerator for medicines and vaccines with glass door and positive temperature range, suitable for pharmacies, laboratories, hospitals and private clinics.

Series
MEDIKA®: clean, functional design; tempered glass door with anti-condensation and low-emissivity glazing; adjustable compartments to optimise storage; internal finish available in 18/10 AISI 304 stainless steel or white plastified steel with certified antibacterial treatment.

Main structural and refrigeration features

• Internal dimensions: 60 x 58 x 150 cm
• Rated capacity: 500 L (17.65 cu ft)
• Net capacity: 527 L (18.61 cu ft)
• Insulation: injected high-density polyurethane (43 kg/m3), CFC-free; insulation thickness: 75 mm (back) / 60 mm (sides)
• Structure: monocoque in white plastified steel internal/external with certified antibacterial treatment or internal AISI 304 18/10 stainless steel; rounded corners and tub-shaped bottom
• Handling: 4 unidirectional rollers included and two front feet
• Door: tempered glass compliant with IEC 61010-1, anti-condensation and low-emissivity glass; anodised aluminium profiles; full-length ergonomic handle; magnetic gasket on four sides; automatic return spring closure with 90° door stop; reversible opening
• Internal lighting: full-height LED with adjustable intensity
• Refrigeration type: professional ventilated
• Defrosting: automatic adaptive with condensation water evaporation
• Energy saving functions: Night & Day function

Operating range and external dimensions
Temperature: +2 / +15°C
Capacity/Litreage: 527 L (18.61 cu ft)
External dimensions (WxDxH): 72 x 76 x 208 cm
Electronics type: ECT-F

ECT-F electronic controller
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C. Alphanumeric backlit LCD display (16 characters), customisable in 5 languages. 4-button membrane keypad; display configurable in four reading modes; password protection available for power on/off and set-point changes. Alarms: mainly three types of temperature alarms and logging of up to 12 events.

Accessories available on request

• Lock with key
• Shelf for model 500
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Sliding aluminium drawer with dividers for model 500
• Sliding aluminium drawer without dividers for model 500
• Drawer with lock for narcotics
• Front plexiglass riser for drawer
• Wheel kit (2 wheels with brake) for model 500
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with potential-free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Crate packaging

Technical characteristics / specifications

• Refrigerant gas type: R290
• Consumption: 1 kWh/24h
• Power input / Current: kW 0.17 / A 1
• Inrush current: A 3
• Noise level: <45 dBA
• Heat emitted (EN 12900): W 40
• Maximum number of grids: 7
• Grid dimensions: 56 x 55 cm
• Maximum number of drawers: 14
• Internal drawer size with dividers (LxDxH) (per n. spaces): 15 x 50 x 7.5 cm (3)
• Internal drawer size without dividers (LxDxH): 49 x 50 x 7.5 cm
• Insulation thickness: 75 mm (back) / 60 mm (sides)
• Insulation density: 43 kg/m3
• Rated / net capacity: 500 L / 527 L
