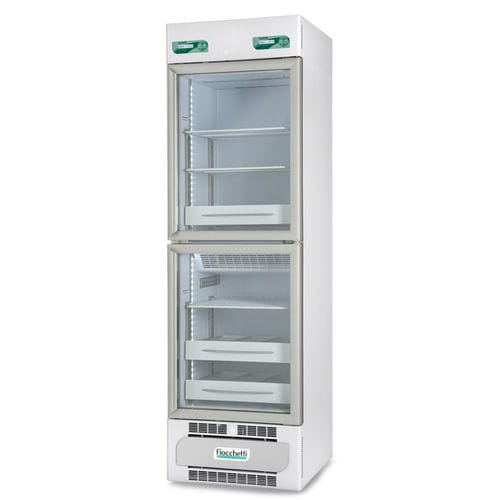

Pharmacy refrigerator MEDIKA 2T 400 ECT-F

upright2 doorswith glass door

Description
Medium-size refrigerator, 400 liters (200+200) with double compartment and dual compressors, designed for storage of pharmaceuticals and vaccines at different positive temperatures. Tempered anti-condensation low-emissivity glass doors; fully customizable interior for stock organization. Code MET0401

Main features

• Temperature range: +2/+15°C | +2/+15°C
• Capacity: 358 L (12.64 cu ft) as indicated in the specification
• Two independent compartments with dual compressors for two positive temperatures
• Two tempered glass doors compliant with IEC 61010-1, anti-condensation
• Full-length ergonomic handle; magnetic gasket on four sides; automatic closing with return spring and 90° door stop; reversible door opening

Structure and refrigeration

• Internal dimensions: 50 x 49.5 x 68.5 cm / 50 x 49.5 x 73 cm
• Nominal capacity: 200+200 L (7.06+7.06 cu ft)
• Net capacity: 170+160 L (6.01 + 5.66 cu ft)
• Insulation type: high-density injected polyurethane foam (43 kg/m3), CFC-free, eco-friendly water-blown injection
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Construction: single-shell painted non-toxic white steel inside/outside with certified antibacterial treatment; interior optionally available in AISI 304 18/10 stainless steel; rounded corners and basin-shaped bottom
• Mobility: 4 unidirectional rollers included and two front adjustable feet
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air ventilation
• Defrost type: automatic, adaptive with condensate water evaporation

ECT-F electronic controller

• Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C
• 16-character backlit alphanumeric LCD display, configurable in 4 reading modes and customizable in 5 languages
• Keypad: 4 membrane keys; option to set password to protect power on/off and set-point changes
• Alarms: primarily signals three types of temperature alarms and records 12 events

Technical data

• Refrigerant type: R290
• Consumption: 1.4 kWh/24h
• Power input / Current: kW 0.17+0.17 / A 1+1
• Inrush current: A 3+3
• Noise level: <50 dBA
• Heat emission (EN 12900): W 58
• Max number of shelves: 3+3 (shelf dimensions: 46 x 45 cm)
• Max number of drawers: 5+5
• Internal drawer dimensions with dividers (LxDxH) (x no. spaces): 11.8 x 40 x 7.5 cm (3)
• Internal drawer dimensions without dividers (LxDxH): 39 x 40 x 7.5 cm
• Max number of wire drawers: 5+5
• Wire drawer internal dimensions (LxDxH): 43.5 x 40.5 x 6.2 cm

Accessories available on request

• Lock with key
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Aluminium sliding drawer with dividers for models 170-200-250-400
• Aluminium sliding drawer without dividers for models 170-200-250-400
• Sliding wire drawer on guides for models 170-200-250-400
• Drawer with lock for narcotics
• Front plexiglass riser for drawer
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for models 170-200-250-400
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity sensor
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Characteristics / Technical specifications

• Series: MEDIKA 2T ®
• Product name: MEDIKA 2T 400 ECT-F
• Product code: MET0401
• Temperature range: +2/+15°C
• Indicated capacity: 358 L (12.64 cu ft); configuration nominal 200+200 L
• External dimensions (WxDxH): 60 x 66 x 202 cm
• Internal dimensions: 50 x 49.5 x 68.5 / 50 x 49.5 x 73 cm
• Insulation: polyurethane foam 43 kg/m3; thickness 70 mm (back) / 50 mm (sides)
• Refrigerant: R290
• Consumption: 1.4 kWh/24h
• Power input: kW 0.17+0.17; Current: A 1+1; Inrush current: A 3+3
• Noise level: <50 dBA
• Lighting: full-height LED
• Materials: optional interior in AISI 304 18/10 stainless steel; exterior painted non-toxic white steel with antibacterial treatment
• Doors: tempered anti-condensation glass, anodized aluminium profiles
• Refrigeration type: professional forced-air; defrost: automatic adaptive
• Control: ECT-F, 16-character alphanumeric LCD, resolution 0.1°C, accuracy ±0.3°C, 4-key keypad, alarms and event logging
