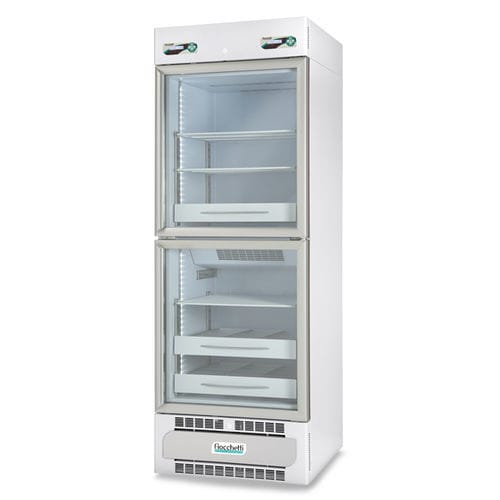

Pharmacy refrigerator MEDIKA 2T 500 ECT-F PLUS

uprightvertical2 doors

Overview Medium-size medical refrigerator widely used in pharmacies and clinics. Total nominal capacity 510 L (250+250 nominal), double compartment with independent motors for storage of drugs and vaccines at different positive temperature ranges; two tempered glass doors, customizable interiors. Indicative code: MET0503.

Key features and benefits

• Independent dual positive temperature zones: +2/+15°C | +2/+15°C (indicative range)
• Two compartments and two compressors for separate, secure storage of products requiring different temperature bands
• Anti-fog tempered low-emissivity glass doors with anodized aluminum profiles
• Full-length ergonomic handle, magnetic gasket on four sides, automatic spring return door closing with 90° stay; reversible opening
• Fully customizable interiors with shelves and drawers (sizes and quantities variable)
• Full-height internal LED lighting

Structure and refrigeration

• Internal dimensions: 60 x 58.8 x 70 cm / 60 x 58.8 x 74 cm
• Nominal capacity: 250 + 250 L (8.82 + 8.82 cu ft)
• Net capacity: 249 + 230 L (8.80 + 8.13 cu ft)
• Insulation type: high-density injected polyurethane (43 kg/m3), CFC-free, water-blown ecological injection
• Insulation thickness: back 75 mm / sides 60 mm
• Monocoque structure in white plastic-coated non-toxic steel, internal/external with certified antibacterial treatment; rounded corners and sump-shaped base
• 4 unidirectional rollers included for easy movement and two front levelling feet for stability
• Refrigeration type: professional fan-assisted
• Defrost type: automatic, adaptive with condensate evaporation

ECT-F PLUS electronic controller

• 16-character backlit alphanumeric LCD display, configurable in 5 languages
• Resolution to 0.1°C, accuracy ±0.3°C
• Membrane keypad with 4 keys, display configurable in four readout modes
• Puffer battery for power-failure alarm signaling up to 48 hours
• Minimum/maximum temperature memory and a 16-event log resettable by the user
• Cleans contact on the electronic board for remote alarm integration
• Multiple alarms (including high temperature due to power failure) visible even without main power
• Customizable display and password protection for power on/off and set-point change

Main technical data

• Refrigerant gas: R290
• Energy consumption: 1.4 kWh/24h
• Power absorbed / Current: kW 0.17+0.17 / A 1+1
• Inrush current: A 3+3
• Noise level: <50 dBA
• Heat emission (EN 12900): W 58
• Max no. of shelves: 3+3 (shelf size: cm 56 x 55)
• Max no. of drawers: 5+5
• Internal drawer size with dividers (LxPxH) (x n.spaces): cm 15 x 50 x 7.5 (3)
• Internal drawer size without dividers (LxPxH): cm 49 x 50 x 7.5

Available accessories (on request)

• Key lock
• External clean contacts for ECT-F PLUS (for remote alarms)
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for model 500
• Sliding aluminum drawer with dividers for model 500
• Sliding aluminum drawer without dividers for model 500
• Lockable drawer for controlled substances
• Front plexiglass riser for drawer
• Wire rack cm 14 x 42 x 15 H (max 3 per shelf)
• Wire rack cm 14 x 50 x 15 H (max 3 per shelf)
• Wheel kit (n.2 with brake) for model 500
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug / hole Ø 15 mm
• Humidity probe / PT100 probe with free contacts
• 220V/1~/60Hz or 115V/1~/60Hz power supply / Voltage stabilizer / Crate packing

Characteristics / technical specifications

• Commercial denomination (model): MEDIKA 2T 500 ECT-F PLUS
• Indicative product code: MET0503
• Reported total capacity: 510 L (18.01 cu ft)
• Temperature range: +2/+15°C | +2/+15°C
• External dimensions (LxPxH): 72 x 76 x 208 (values shown on the datasheet)
• Electronics/controller type: ECT-F PLUS
• Refrigerant gas: R290
• Energy consumption: 1.4 kWh/24h
• Noise level: <50 dBA
