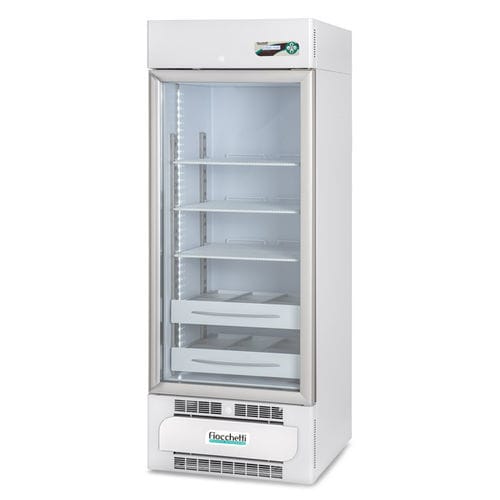

Pharmacy refrigerator MEDIKA 250 ECT-F PLUS

cabinetupright1-door

Brief description
Medium-size medical refrigerator for medicines and vaccines with glass door and positive temperature range, suitable for pharmacies, laboratories, hospitals and private clinics.

Product and series
The MEDIKA® series refrigerators for medicines and vaccines feature a clean, functional design with a glass door and adjustable compartments to optimise storage. Designed for use in pharmacies, hospital wards, medical, aesthetic, dental and ophthalmic practices, laboratories and the pharmaceutical industry. Compliant with international standards and available in various capacities with customizable internal configurations.

Doors, gaskets and handle

• Tempered glass door compliant with IEC 61010-1 safety standards, anti-fog and low-emissivity glass for improved thermal performance.
• Anodized aluminium profiles.
• Full-length ergonomic handle for secure grip.
• Magnetic gasket on all four sides, automatic spring-assisted closing with 90° catch and reversible door opening.

Structure and refrigeration

• Internal dimensions: 50 x 48.5 x 107.5 cm.
• Nominal capacity: 250 L (8.82 cu ft).
• Net capacity: 264 L (9.33 cu ft).
• Monocoque structure in white coated steel, non-toxic inside/outside with certified antibacterial treatment; rounded corners and tub-shaped bottom.
• 4 unidirectional castors included and two front feet for stability.
• Internal lighting: full-height LED.
• Type of refrigeration: professional forced-air ventilation.
• Defrost type: automatic adaptive with condensation water evaporation.
• Insulation: high-density (43 kg/m3) injected polyurethane between panels, CFC-free, eco-friendly water-blown injection.
• Insulation thickness: 70 mm rear / 50 mm sides.

ECT-F PLUS controller
Temperature display and setting with 0.1 °C resolution, accuracy ±0.3 °C, alphanumeric backlit LCD 16-character display configurable in 5 languages. 4-key membrane keypad. Backup battery for alarm in case of power failure up to 48 hours. Min/max temperature memory and 16-event log resettable by the user. Clean contact on the electronic board for remote alarm connection. Display configurable in four reading modes. Option to set password to protect power on/off and set-point changes.

Main technical data

• Refrigerant type: R290.
• Consumption: 0.6 kWh/24h.
• Power input / Current: kW 0.17 / A 1.
• Starting current: A 3.
• Noise level: <45 dBA.
• Heat emission (EN 12900): W 25.
• Max number of shelves: 6; shelf size: 46 x 45 cm.
• Max number of drawers: 10; internal drawer size with dividers (LxDxH) (per n.spaces): cm 11.8 x 40 x 7.5 (3).
• Internal drawer size without dividers (LxDxH): cm 39 x 40 x 7.5.
• Max number of wire drawers: 10; internal wire drawer size (LxDxH): cm 43.5 x 40.5 x 6.2.

Accessories available on request

• Lock with key.
• External clean contacts for ECT-F PLUS (for remote alarms).
• Anti-freeze safety device.
• DIN 13277 compliance (for ECT-F PLUS).
• Chart recorder.
• Additional shelf for models 170-200-250-400; stainless steel shelf and perforated stainless steel shelf for models 170-200-250-400.
• Wire rack 14 x 42 x 15 cm (max 3 per shelf).
• Sliding aluminium drawers with/without dividers; drawer with lock for narcotics; plexiglass front riser for drawer; wheel kit (2 with brake) for models 170-200-250-400.
• Internal power outlet; cable gland hole Ø 35 mm with plug; hole Ø 15 mm; humidity probe; PT100 probe with free contacts.
• Alternative power supplies: 220V/1~/60Hz or 115V/1~/60Hz; voltage stabilizer; crate packaging.

Application notes
Ideal for storage of medicines and vaccines at positive temperature (+2 / +15 °C). Available with multiple internal configurations to meet different storage needs.

Features / technical specifications

• Model: MEDIKA 250 ECT-F PLUS.
• Series: MEDIKA® (ECT-F PLUS).
• Temperature range: +2 / +15 °C.
• Gross/nominal capacity: 250 L (8.82 cu ft) – Net capacity: 264 L (9.33 cu ft).
• External dimensions (WxDxH): 60 x 66 x 163.5 cm.
• Internal dimensions (WxDxH): 50 x 48.5 x 107.5 cm.
• Insulation: injected polyurethane 43 kg/m3; thickness: 70 mm (rear) / 50 mm (sides).
• Refrigerant type: R290.
• Energy consumption: 0.6 kWh/24h.
• Power input: 0.17 kW – Rated current: 1 A – Starting current: 3 A.
• Noise level: <45 dBA.
• Heat emission EN12900: 25 W.
• Lighting: full-height internal LED.
• Refrigeration type: professional forced ventilation; defrost: automatic adaptive, condensate evaporation.
• Control: ECT-F PLUS – 16-character alphanumeric LCD, 0.1 °C resolution, accuracy ±0.3 °C, backup battery for alarms up to 48 h, min/max memory and event log (16 events), clean contact for remote alarms.
• Door: tempered anti-fog low-emissivity glass; magnetic gasket; automatic closing with 90° catch; reversible opening.
• Max shelves: 6 (46 x 45 cm); max drawers: 10 (internal dimensions specified).
