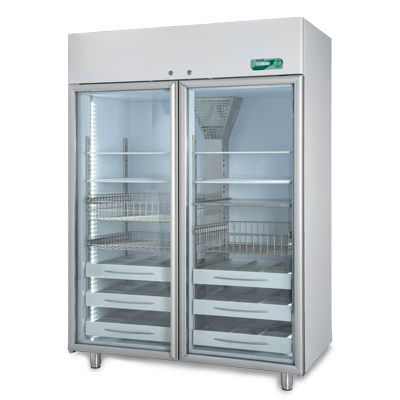

Pharmacy refrigerator MEDIKA 1500 ECT-F

for hospitalslaboratoryupright

Description
Large-capacity pharmaceutical and vaccine refrigerator from the MEDIKA® series with two tempered glass doors and positive-temperature control, designed for pharmacies, laboratories, hospitals and private clinics. Clean, functional design with internal layout configurable via shelves, drawers or baskets to optimise storage.

Main features

• Tempered glass doors (anti-fog, low-emissivity glass) with anodized aluminium profiles.
• Full-length ergonomic handle.
• Magnetic gasket sealing on four sides; automatic return-spring door closing and 90° door stop.
• Customisable internal arrangement (shelves, drawers, baskets, wire racks).

Structure and refrigeration
Internal dimensions: 130 x 67 x 150 cm
Nominal capacity: 1500 L (52.97 cu ft)
Net capacity: 1355 L (48.87 cu ft)
Insulation type: high-density injected polyurethane (43 kg/m3), CFC-free, ecological water-blown injection
Insulation thickness: 70 mm
Structure: single-shell body in white plastic-coated steel, non-toxic inside/outside with certified antibacterial treatment or internal AISI 304 18/10 stainless steel; rounded corners and a tray-style bottom
Feet: 4 height-adjustable feet for maximum stability
Internal lighting: full-height internal LED lighting
Refrigeration type: professional forced-air ventilation
Defrost type: automatic adaptive defrost with condensation water evaporation

Electronic controller ECT-F
Temperature display and setting with 0.1 °C resolution and ±0.3 °C accuracy via a 16-character backlit alphanumeric LCD. Keypad with 4 membrane keys; display configurable in five languages and four reading modes. Password protection configurable for power on/off and set-point changes. Alarms: three main temperature alarm types and recording of 12 events.

Main technical data
Refrigerant type: R290
Consumption: 2.5 kWh/24h
Power input / Current: 0.4 kW / 1.8 A
Starting current: 6 A
Noise level: <55 dBA
Heat emission (EN 12900): 125 W
External dimensions (see data sheet): 144 x 83 x 207 cm (W x D x H)
Internal dimensions: 130 x 67 x 150 cm (W x D x H)
Capacity/Litreage: 1355 L (net) / 1500 L (nominal)

Internal configurations and storage

• Max number of wire grids: 14 — grid size: 56 x 65 cm
• Max number of drawers: 28 — internal drawer size with dividers (W x D x H) (x n.spaces): 15 x 60 x 7.5 cm (3)
• Internal drawer size without dividers (W x D x H): 49 x 60 x 7.5 cm
• Max number of wire baskets: 14 — internal basket size (W x D x H): 53.8 x 60.5 x 14.8 cm
• Max number of wire drawers: 28 — internal wire drawer size (W x D x H): 53.8 x 60.5 x 6.2 cm

Accessories available on request

• Key lock
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Shelf for models 700–1500
• Stainless steel shelf for models 700–1500
• Perforated stainless steel shelf for models 700–1500
• Wire rack cm 14 x 50 x 15 H (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 700–1500
• Sliding aluminium drawer without dividers for models 700–1500
• Front plexiglass riser for drawer
• Sliding wire basket
• Sliding wire drawer on guides for models 700–1500
• Wheel kit (2 with brake) for model 1500
• Internal power outlet
• Cable gland hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Cage packaging

Characteristics / technical specifications

• Temperature range: +2 / +15 °C
• Nominal capacity: 1500 L
• Net capacity: 1355 L (47.85 cu ft indicated on the data sheet)
• External dimensions (W x D x H): 144 x 83 x 207 cm
• Internal dimensions (W x D x H): 130 x 67 x 150 cm
• Insulation type: injected polyurethane 43 kg/m3, CFC-free
• Insulation thickness: 70 mm
• Internal material: white plastic-coated steel with antibacterial treatment or AISI 304 18/10 stainless steel
• Internal lighting: full-height LED
• Controller: ECT-F — 0.1 °C resolution, ±0.3 °C accuracy, 16-character LCD, 4-key keypad, alarms and event recording
• Refrigerant: R290
• Consumption: 2.5 kWh/24h
• Power input: 0.4 kW — Current: 1.8 A — Starting current: 6 A
• Noise level: <55 dBA
• Heat emission (EN12900): 125 W
• Internal storage capacity: up to 14 grids (56 x 65 cm), up to 28 drawers (various sizes), or 14 wire baskets (53.8 x 60.5 x 14.8 cm)
