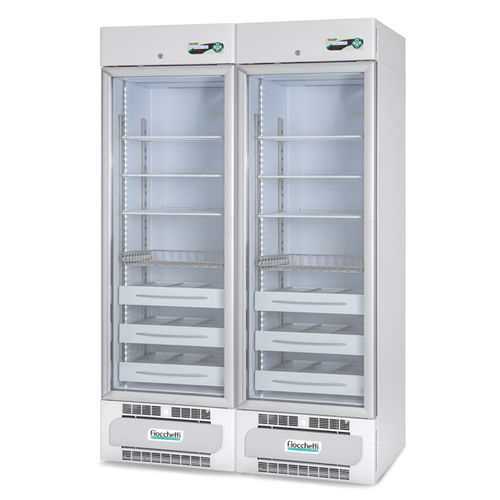

Laboratory refrigerator MEDIKA 2T 800 ECT-F PLUS

for vaccinesfor pharmaciesfor hospitals

Overview
Model composed of two adjacent biological refrigerators of 400 L each, with two opposing glass doors, two displays and positive temperature in both units, ideal for storage of medicines and vaccines in pharmacies and hospitals.

Applications
Suitable for pharmacies, hospital wards, medical practices, aesthetic, dental and ophthalmic clinics, laboratories and the pharmaceutical industry.

Main features

• Tempered anti-fog, low-emissivity glass doors with anodized aluminum profiles
• Full-length ergonomic handle
• Magnetic gasket sealing on four sides, automatic spring-return closing and 90° door stop
• Full-height internal Full LED lighting
• One-piece white plastified steel cabinet with certified antibacterial treatment or interior in 18/10 AISI 304 stainless steel
• 4 unidirectional rollers included and two front leveling feet for stability
• Adjustable compartments to optimize storage

Controller
ECT-F PLUS electronic controller with backlit alphanumeric LCD (16 characters) configurable in 5 languages. Temperature display and setting with 0.1°C resolution and ±0.3°C accuracy. Backup battery for power-failure alarm up to 48 hours; min/max temperature memory; clean contact for remote alarm integration; 4-button membrane keypad; customizable password to lock power on/off and set-point changes; event recording (16 events) and multiple temperature alarm types.

Structure and refrigeration

• Internal dimensions (per unit): 50 x 48.5 x 140 cm
• Nominal capacity: 400 + 400 L
• Net capacity: 347 + 347 L
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water-based ecological injection
• Insulation thickness: 70 mm back / 50 mm sides
• Refrigeration type: professional ventilated
• Defrost type: automatic adaptive with condensate evaporation

Accessories available on request

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti-freeze protection
• DIN 13277 compliance (for ECT-F PLUS)
• Shelves and stainless-steel shelves (various types and sizes for models 170-200-250-400)
• Sliding aluminium drawers with or without dividers and wire drawers on guides
• Front plexiglass riser for drawer
• Wire racks (various sizes)
• Lockable drawer for controlled substances
• Wheel kit (2 wheels with brake)
• Internal power socket, cable feed-through holes (15 mm / 35 mm), probes (humidity, PT100), power supplies 220V/115V, voltage stabilizer, crate packing

Technical specifications

• Series: MEDIKA 2T
• Commercial model: MEDIKA 2T 800 ECT-F PLUS
• Product code shown on sheet: Cod. MED0403 (x2)
• Temperature range: +2/+15°C | +2/+15°C (for the two units)
• Declared total capacity: 694 L (24.51 cu ft)
• Nominal capacity per unit: 400 + 400 L (14.12 + 14.12 cu ft)
• Net capacity per unit: 347 + 347 L (12.26 + 12.26 cu ft)
• External dimensions (LxDxH): 1200 x 66 x 196 cm
• Internal dimensions (per unit): 50 x 48.5 x 140 cm
• Insulation type and density: injected polyurethane, 43 kg/m3
• Insulation thickness: back 70 mm / sides 50 mm
• Door type: tempered anti-fog, low-emissivity glass
• Internal lighting: Full-height Full LED
• Refrigerant type: R290
• Energy consumption: 0.7 + 0.7 kWh/24h
• Power absorption: 0.17 + 0.17 kW (Current: Amp 1 + 1)
• Inrush current: 3 Amp
• Noise level: <45 dBA
• Heat emitted (EN 12900): 30 + 30 W
• Max grids: 7 + 7 (grid size: 46 x 45 cm)
• Max drawers: 14 + 14
• Internal drawer size with dividers (LxDxH): 11 x 40 x 7.5 cm (3 compartments)
• Internal drawer size without dividers (LxDxH): 39 x 40 x 7.5 cm
• Wire drawer internal size h=62 mm (LxDxH): 43.5 x 40.5 cm
• Electronics / controller type: ECT-F PLUS (alphanumeric LCD, 0.1°C resolution, ±0.3°C accuracy, backup battery for power-failure alarm up to 48 hours, min/max memory, clean contact for remote alarm)
