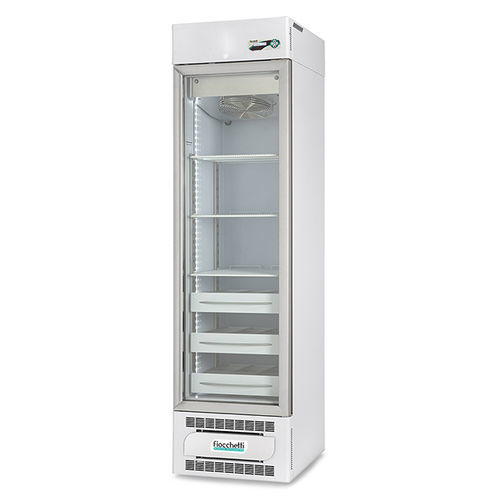

Pharmacy refrigerator MEDIKA 300 ECT-F PLUS

for hospitalslaboratorycabinet

Brief description
Medium-size refrigerator for medicines and vaccines with glass door and positive temperature range, suitable for pharmacies, laboratories, hospitals and private clinics. Code MED0303

Design and use
The MEDIKA® series features a clean, functional design with anti-fog, low-emissivity tempered glass door, anodized aluminium profiles and adjustable compartments to optimise storage. Intended for pharmacy use, hospital wards, medical practices, laboratories and the pharmaceutical industry. Full-length ergonomic handle, magnetic gasket on four sides, automatic spring-return closing with 90° door stop, reversible opening direction.

Main compartment and refrigeration characteristics

• Internal dimensions: 44 x 48.5 x 140 cm
• Nominal capacity: 300 L (10.6 cu ft)
• Net capacity: 265 L (9.4 cu ft)
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water-based ecological injection
• Insulation thickness: 70 mm (back) / 40 mm (sides)
• Structure: single-shell construction in white coated non-toxic steel inside/outside with certified antibacterial treatment; option for 18/10 AISI 304 stainless steel interior; rounded corners and sump-shaped base
• 4 unidirectional rollers included and 2 front feet
• Internal lighting: full-height LED
• Cooling type: professional fan-assisted refrigeration
• Defrost: automatic, adaptive with condensate evaporation

Main features (visual summary)
Temperature range: +2 / +15°C
Capacity: 265 L (9.4 cu ft)
External dimensions (WxDxH): 52 x 66 x 196 cm
Electronics type: ECT-F PLUS

Controller ECT-F PLUS
Temperature display and setting with 0.1°C resolution and ±0.3°C accuracy. 16-character backlit alphanumeric LCD, configurable in 5 languages; membrane keypad with 4 keys. Backup batteries for power-failure alarm up to 48 hours; min/max temperature memory; clean contact on board for remote alarm. Display configurable in four reading modes; password protection for power on/off and set-point change. 16 event log entries, user-resettable min/max table.

TECHNICAL DATA
Refrigerant type: R290
Consumption: 1.2 kWh/24h
Power absorbed / Current: 0.19 kW / 1.3 A
Starting current: 3 A
Noise level: <50 dBA
Heat emission (EN 12900): 30 W
Max number of shelves: 6 (shelf size: 40 x 47 cm)
Max number of drawers: 12
Internal drawer dimension with dividers (WxDxH) (per n.spaces): 9.8 x 40 x 7.5 cm (3 spaces)
Internal drawer dimension without dividers (WxDxH): 33 x 40 x 7.5 cm

Available accessories (excerpt)

• Lock with key
• Plexiglass front riser for drawer
• Shelf for models 100-140-280-300
• Sliding aluminium drawer with/without dividers for models 600 2T - 300
• Internal power outlet
• Cable pass-through holes (ø 35 mm and ø 15 mm)
• Humidity probe
• PT100 probe with free contacts
• Alternative power supplies 220V/115V and voltage stabilizer
• Cage packaging

Characteristics / Technical specifications

• Model: MEDIKA 300 ECT-F PLUS
• Product code: MED0303
• Operating temperature: +2 / +15°C
• Net capacity: 265 L (nominal 300 L)
• Internal dimensions: 44 x 48.5 x 140 cm
• External dimensions (WxDxH): 52 x 66 x 196 cm
• Refrigerant type: R290
• Energy consumption: 1.2 kWh/24h
• Power absorbed: 0.19 kW (current 1.3 A)
• Insulation: polyurethane foam 43 kg/m3 (thickness 70/40 mm)
• Lighting: internal full LED
• Door: anti-fog, low-emissivity tempered glass (standard IEC 61010-1)
• Controller: ECT-F PLUS (16-char LCD, 0.1°C resolution, 48h backup battery, event log)
• Noise level: <50 dBA
