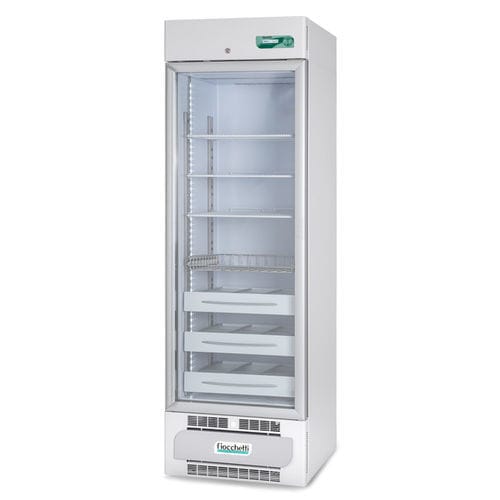

Pharmacy refrigerator MEDIKA 400 ECT-F

uprighton casters1-door

Description
Mid-size best-selling refrigerator for medicines and vaccines with a tempered glass door and positive temperature range, suitable for pharmacies, laboratories, hospitals and private clinics. Part of the MEDIKA® series, featuring a clean, functional design and adjustable compartments to optimize storage. Tempered anti‑condensation low‑emissivity glass door compliant with IEC 61010-1; anodized aluminum profiles. Full‑length ergonomic handle. Magnetic gasket on all four sides, automatic spring‑return door closing with 90° hold. Reversible door opening.

Applications

• Pharmacies
• Hospital wards
• Medical, dental, aesthetic and ophthalmic offices
• Laboratories and pharmaceutical industry

Control
Electronic controller ECT-F with temperature display and setting at 0.1°C resolution, accuracy ±0.3°C. Backlit alphanumeric LCD (16 characters), configurable in multiple display modes and customizable in 5 languages. 4‑key membrane keypad with optional password protection for power on/off and set‑point modification. Temperature alarm signaling (main types) and logging of up to 12 events.

Main features

• Temperature range: +2 / +15°C
• Net capacity: 347 L (12.26 cu ft) - nominal capacity: 400 L (14.12 cu ft)
• External dimensions (W×D×H): 60 × 66 × 196 cm
• Internal dimensions: 50 × 48.5 × 140 cm
• Cooling type: professional forced‑air refrigeration
• Defrost type: adaptive automatic with condensation water evaporation
• Insulation: high‑density injected polyurethane (43 kg/m3), CFC‑free, eco water‑based injection
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Structure: monocoque white plastic coated steel internal/external with certified antibacterial treatment; optional stainless steel 18/10 AISI 304 interior; rounded corners and tank base
• Mobility: 4 unidirectional rollers included and 2 front feet
• Interior lighting: full‑height LED
• Door: tempered anti‑condensation low‑emissivity glass, anodized aluminum profiles; reversible opening; 90° door hold

Accessories (available on request)

• Lock with key
• Shelves (steel and stainless steel, perforated)
• Wire racks, sliding aluminum drawers with/without dividers
• Plexiglass front riser for drawer
• Lockable drawers for narcotics
• Wheel kit (2 with brake)
• Internal power outlet, cable feedthroughs (Ø 35 mm and Ø 15 mm)
• Probes (humidity, PT100 with potential‑free contacts)
• Alternative power supplies and voltage stabilizer

Safety and standards
Tempered glass door compliant with IEC 61010-1; insulation and components designed for pharmaceutical and healthcare use. MEDIKA® series conforms to applicable international standards.

Technical specifications

• Commercial name: MEDIKA 400 ECT-F
• Product code: Cod. MED0401
• Refrigerant type: R290
• Consumption: 0.7 kWh/24h
• Rated power / Current: 0.17 kW / 1 A
• Start‑up current: 3 A
• Noise level: <45 dBA
• Heat released (EN 12900): 30 W
• Max no. of grids: 7
• Grid dimensions: 46 × 45 cm
• Max no. of drawers: 14
• Internal drawer dimensions with dividers (W×D×H) (x no. spaces): 11 × 40 × 7.5 cm (3)
• Internal drawer dimensions without dividers (W×D×H): 39 × 40 × 7.5 cm
• Max no. of wire drawers: 14
• Internal wire drawer dimensions (W×D×H): 43.5 × 40.5 × 6.2 cm
• Gross / net capacity: 400 L / 347 L
• Internal dimensions: 50 × 48.5 × 140 cm
• External dimensions (W×D×H): 60 × 66 × 196 cm
• Control type: Electronic controller ECT-F, 0.1°C resolution, accuracy ±0.3°C, 16‑character LCD, 5 languages, 4‑key membrane
