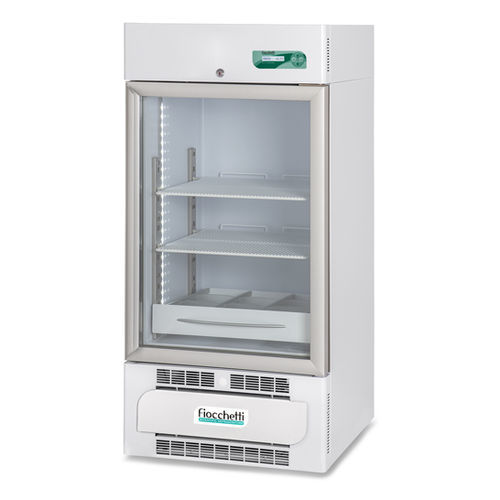

Pharmacy refrigerator MEDIKA 170 ECT-F

compacton casters1-door

Product overview
The MEDIKA 170 ECT-F is a compact refrigerator for medicines and vaccines with a tempered glass door and positive temperature range, intended for pharmacies, laboratories, hospitals and private clinics. The MEDIKA® series offers adjustable internal compartments and a full-height ergonomic handle. The door complies with IEC 61010-1 and features anti-fog and low-emissivity glass with anodized aluminium profiles. The gasket is magnetic on all four sides and the door opening is reversible; the automatic lock includes a return spring and a 90° door stop.

Key data

• Temperature range: +2 / +15 °C
• Nominal capacity: 170 L — Net capacity: 179 L
• External dimensions (WxDxH): 60 x 66 x 128.5 cm
• Inner dimensions (WxDxH): 50 x 48.5 x 73 cm
• Controller: ECT-F electronic microprocessor

Structure and refrigeration (features)

• Monocoque structure; interior/exterior in white plastified steel with antibacterial film or inner 18/10 AISI 304 stainless steel
• Rounded inner corners and sump-shaped bottom to avoid liquid accumulation
• Insulation: high-density injected PUF (43 kg/m3), CFC-free, water-foam injection; thickness 70 mm (back) / 50 mm (sides)
• Professional ventilated refrigeration; adaptive automatic defrost with condensate vaporization
• Full-height internal LED lighting
• Mobility: 4 unidirectional rollers included and 2 front feet for stability

ECT-F microprocessor controller
Display and setting with 0.1 °C resolution and ±0.3 °C accuracy on a backlit 16-character alphanumeric LCD configurable in 5 languages. Four membrane keys provide intuitive operation; display configurable in four reading modes. Password protection available for power and set-point changes. The controller reports three types of temperature alarms and records 12 events.

Technical data

• Refrigerant: R290
• Energy consumption: 0.5 kWh/24 h
• Power absorption/current: 0.17 kW / 1 A — Inrush current: 3 A
• Noise level: <45 dBA
• Heat rejection (EN 12900): 20 W
• Max shelves: 4 — Shelf dimensions (wire): 46 x 45 cm
• Max drawers: 6; drawer dimensions with dividers: 11.8 x 40 x 7.5 cm (per compartment)

Accessories available on request

• Lock with key
• Standard and stainless steel shelves (for models 170-200-250-400)
• Perforated stainless steel shelves
• Stainless steel wire racks and extractible drawers
• Aluminium pull-out drawers with or without dividers
• Lockable drawer for narcotics
• Wheels kit (2 with brakes)
• Internal power socket, access ports (Ø 15 mm, Ø 35 mm), humidity sensor, PT100 probe
• Voltage options: 220 V/1~/60 Hz or 115 V/1~/60 Hz; voltage stabiliser; wooden crate packaging

Remarks / technical specifications

• Model series: MEDIKA® — Model: MEDIKA 170 ECT-F
• Temperature range: +2 / +15 °C — Net capacity: 179 L — Nominal capacity: 170 L
• External dimensions: 60 x 66 x 128.5 cm — Inner dimensions: 50 x 48.5 x 73 cm
• Insulation: injected PUF 43 kg/m3; thickness 70 mm (back) / 50 mm (sides)
• Controller: ECT-F — resolution 0.1 °C, accuracy ±0.3 °C, alarms and event log
• Refrigeration: professional ventilated; refrigerant R290; consumption 0.5 kWh/24 h
