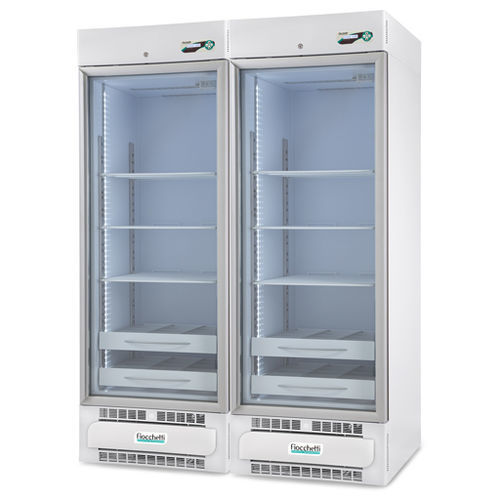

Pharmacy refrigerator MEDIKA 2T 1000 ECT-F PLUS

for hospitalscabineton casters

Summary
Model composed of two side-by-side biological refrigerators of 500 L each, each with one tempered glass door, two displays and positive temperature range in both compartments. Intended for storage of medicines and vaccines in pharmacies and hospitals.

Series
The refrigerators of the MEDIKA 2T® series feature a double compartment and dual compressors to store medicines and vaccines at different setpoints. Tempered glass doors and fully customizable interiors for organized pharmaceutical stock control.

Construction and refrigeration

• Internal dimensions (per compartment): 60 x 58 x 150 cm (x2)
• Nominal capacity: 500+500 L
• Net capacity: 527+527 L
• Insulation type: injected high-density polyurethane foam (43 kg/m3), CFC-free, eco water injection
• Insulation thickness: 75 mm back / 60 mm sides
• Structure: single-shell painted stainless-steel-effect steel, interior/exterior with certified antibacterial treatment or interior in AISI 304 stainless steel; rounded corners and basin-shaped bottom
• Mobility: 4 single-direction rollers included and two front feet
• Internal lighting: full-height LED
• Refrigeration type: professional ventilated
• Defrost type: automatic adaptive with condensate evaporation
• Doors: two tempered glass doors complying with IEC 61010-1, anti-condensation and low-emissivity glass with anodized aluminium profiles; full-length ergonomic handle; magnetic gasket on four sides; automatic spring return closure and 90° hold-open

ECT-F PLUS electronic controller
Temperature display and setpoint with 0.1°C resolution, accuracy +/-0.3°C; backlit 16-character alphanumeric LCD display configurable in 5 languages; 4-button membrane keyboard. Backup battery for power-failure alarm up to 48 hours; min/max temperature memory; free contact on the electronic board for remote alarm. Display configurable in four reading modes. Keyboard with configurable password to protect power on/off and set-point changes. Alarm log: 16 events recordable plus user-resettable min/max temperature.

Technical data

• Refrigerant type: R290
• Consumption: 1+1 kWh/24h
• Power input / Current: kW 0.17 + 0.17 / A 1 + 1
• Starting current: A 3 + 3
• Noise level: <45 dBA
• Heat emission (EN 12900): W 40+40
• Max number of shelves: 7+7
• Shelf dimensions: 56 x 55 cm
• Max number of drawers: 14+14
• Internal drawer size with dividers (LxDxH) (per n.spaces): 15 x 50 x 7.5 cm (3)
• Internal drawer size without dividers (LxDxH): 49 x 50 x 7.5 cm

Accessories available on request

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti-freeze protection
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for model 500
• Sliding aluminium drawer with dividers for model 500
• Sliding aluminium drawer without dividers for model 500
• Drawer with lock for narcotics
• Front plexiglass riser for drawer
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for model 500
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packing

Characteristics / Technical specifications

• Model: double side-by-side refrigerator (nr.02) with dual compressors
• Operating temperature: +2/+15°C in both compartments
• Total capacity: 1054 L
• External dimensions (WxDxH): 144 x 76 x 208 cm
• Electronic controller type: ECT-F PLUS
• Product code indicated on data sheet: Cod. MED0503 (x2)
