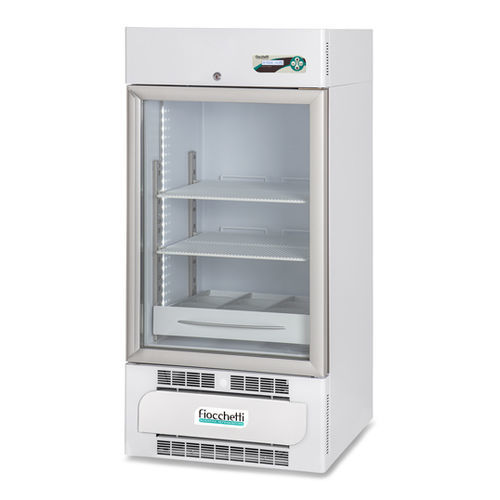

Pharmacy refrigerator MEDIKA 170 ECT-F PLUS

cabinetuprightvertical

Overview
Small refrigerator for medicines and vaccines with glass door and positive temperature range, suitable for pharmacies, laboratories, hospitals and private clinics.

Line and uses
The MEDIKA series medical refrigerators feature a clean, functional design with a glass door and adjustable compartments to optimize storage of pharmaceutical material. Designed for pharmacies, hospital departments, medical and dental offices, ophthalmology, aesthetic clinics, laboratories and the pharmaceutical industry; compliant with international standards and configurable internally.

Key features

• Tempered glass door compliant with IEC 61010-1, anti-fog and low-emissivity glass with anodized aluminium profiles.
• Full‑length ergonomic handle.
• Magnetic gasket on four sides; automatic return-closing with 90° door stop; reversible door opening.
• Full-height internal LED lighting.

Structure and refrigeration specifications

• Internal dimensions: 50 x 48.5 x 73 cm
• Nominal capacity: 170 L (6.00 cu ft)
• Net capacity: 179 L (6.32 cu ft)
• Insulation: high‑density injected polyurethane (43 kg/m3), CFC‑free, water‑based ecological injection
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Structure: single‑piece white coated steel body internally/externally with certified antibacterial treatment or internal AISI 304 18/10 stainless steel; rounded corners and tray base; 4 unidirectional rollers included and two front feet
• Refrigeration type: professional forced‑air ventilation
• Defrost type: automatic, adaptive with condensate evaporation

Electronic controller ECT-F PLUS

• Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C
• 16‑character backlit alphanumeric LCD display, configurable in 5 languages
• Keyboard: 4 membrane keys; display configurable in four readout modes
• Backup battery for power‑failure alarm up to 48 hours
• Min/max temperature memory; 16‑event log resettable by user
• Clean contact on board for remote alarms; remote notification capability
• Protection functions: customizable password for power on/off and set‑point change

Refrigerator technical data

• Refrigerant gas: R290
• Consumption: 0.5 kWh/24h
• Power / Current: 0.17 kW / 1 A
• Inrush current: 3 A
• Noise level: <45 dBA
• Heat emission EN 12900: 20 W
• Max number of shelves: 4
• Shelf dimensions: 46 x 45 cm
• Max number of drawers: 6
• Internal drawer with dividers (LxDxH) (x n.spaces): 11.8 x 40 x 7.5 cm (3)
• Internal drawer without dividers (LxDxH): 39 x 40 x 7.5 cm
• Max number of wire drawers: 6
• Internal wire drawer (LxDxH): 43.5 x 40.5 x 6.2 cm

Available accessories on request

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti‑freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Graphic chart recorder
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Wire rack 14 x 42 x 15 cm H (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Plexiglass front riser for drawer
• Sliding wire drawer on guides for models 170-200-250-400
• Drawer with lock for narcotics
• Wheel kit (2 with brake) for models 170-200-250-400
• Internal power outlet
• Cable gland hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Features / technical specifications

• Model: MEDIKA 170 ECT-F PLUS
• Product code: Cod. MED0173
• Temperature range: +2 / +15°C
• Net capacity: 179 L (6.32 cu ft)
• External dimensions (WxDxH): 60 x 66 x 128.5 cm
• Internal dimensions: 50 x 48.5 x 73 cm
• Insulation: polyurethane 43 kg/m3 (70 mm back / 50 mm sides)
• Refrigerant: R290
• Consumption: 0.5 kWh/24h
• Power consumption: 0.17 kW (1 A); inrush: 3 A
• Noise level: <45 dBA
• Lighting: Full LED
• Controller: ECT-F PLUS with 16‑character LCD, backup battery for alarms up to 48 h, event memory and clean contact for remote alarm
