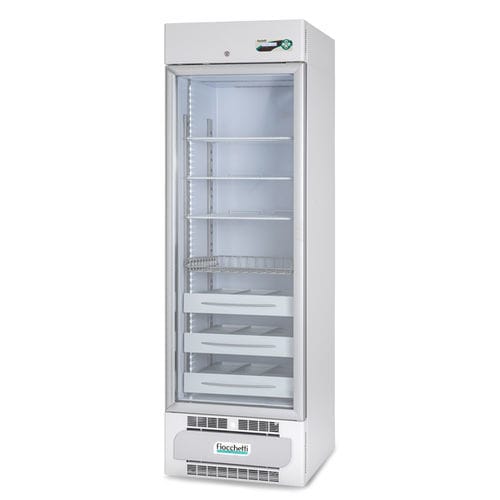

Pharmacy refrigerator MEDIKA 400 ECT-F PLUS

upright1-doorwith glass door

Overview
Best-selling medium-size refrigerator for medicines and vaccines with glass door and positive temperature range, ideal for pharmacies, laboratories, hospitals and private clinics. MEDIKA® series with clean, functional design: tempered anti-fog low-emissivity glass door with anodized aluminium profiles. Full-length ergonomic handle, magnetic gasket on four sides, automatic spring-return closing with 90° door stop, reversible opening.

Structure and refrigeration
Internal dimensions: 50 x 48.5 x 140 cm
Nominal capacity: 400 L (14.12 cu ft)
Net capacity: 347 L (12.26 cu ft)
Insulation: injected high-density polyurethane foam between walls (43 kg/m3), CFC-free, eco water-based injection
Insulation thickness: 70 mm back / 50 mm sides
Construction: one-piece white coated steel monocoque internal/external with certified antibacterial treatment; interior also available in AISI 304 18/10 stainless steel. Rounded corners and sump base. 4 unidirectional rollers included and two adjustable front feet.
Internal lighting: full-height LED
Refrigeration type: professional ventilated
Defrost: automatic adaptive with condensate evaporation

Electronic controller ECT-F PLUS
Temperature display and setting with 0.1°C resolution, accuracy +/- 0.3°C. 16-character backlit alphanumeric LCD display, configurable in 5 languages; 4-button membrane keypad.
Battery backup for power-failure alarm up to 48 hours. Tmin/Tmax memory and 16-event log resettable by the user. Clean contact on the electronic board for remote alarms. Display configurable in four reading modes. Keypad with customizable password to protect power on/off and set-point change.
Alarms: multiple temperature alarm types including high temperature due to power failure; event recording and possibility to remote alarms via clean contact.

Available accessories

• Lock with key
• External clean contacts ECT-F PLUS
• Anti-freeze protection
• DIN 13277 compliance (for ECT-F PLUS)
• Chart recorder (disk)
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Wire rack 14 x 42 x 15 cm H (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Plexiglass front riser for drawer
• Sliding wire drawer on guides for models 170-200-250-400
• Drawer with lock for narcotics
• Wheel kit (2 wheels with brake) for models 170-200-250-400
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz (opt.)
• Power supply 115V/1~/60Hz (opt.)
• Voltage stabilizer
• Cage packing

Technical characteristics / specifications

• Series/model name: MEDIKA® 400 ECT-F PLUS
• Product code: Cod. MED0403
• Temperature range: +2 / +15 °C
• Net capacity: 347 L (12.26 cu ft)
• Nominal capacity: 400 L (14.12 cu ft)
• External dimensions (W x D x H): 60 x 66 x 196 cm
• Internal dimensions: 50 x 48.5 x 140 cm
• Refrigerant type: R290
• Consumption: 0.7 kWh/24h
• Power absorbed / Current: kW 0.17 / A 1
• Starting current: A 3
• Noise level: <45 dBA
• Heat emitted (EN 12900): W 30
• Insulation type: injected polyurethane foam 43 kg/m3 (CFC-free)
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Materials: white coated steel internal/external (antibacterial) or internal AISI 304 18/10 stainless steel
• Refrigeration type: professional ventilated
• Defrost: automatic adaptive with condensate evaporation
• Internal lighting: Full-height LED
• Max no. of shelves: 7 (shelf size: 46 x 45 cm)
• Max no. of drawers: 14
• Internal drawer size with dividers (LxDxH) (x n.spaces): 11 x 40 x 7.5 cm (3 spaces)
• Internal drawer size without dividers (LxDxH): 39 x 40 x 7.5 cm
• Max no. of wire drawers: 14
• Internal wire drawer size (LxDxH): 43.5 x 40.5 x 6.2 cm
• Controller: ECT-F PLUS with 16-character LCD, 0.1°C resolution, accuracy ±0.3°C, 48 h battery backup for power-failure alarm, Tmin/Tmax memory, 16-event log, clean contact for remote alarms
• Door: tempered anti-fog low-emissivity glass (IEC 61010-1), anodized aluminium profiles, 90° door stop
