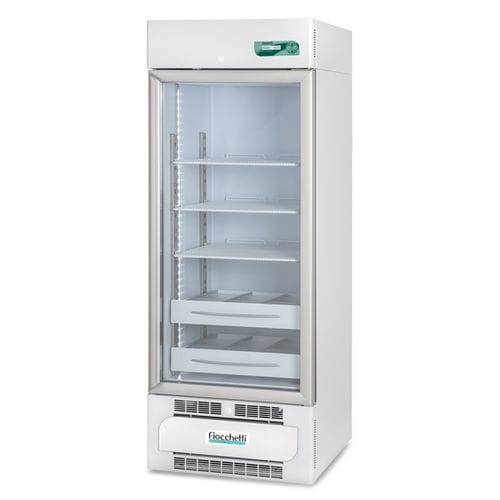

Laboratory refrigerator MEDIKA 250 ECT-F

for vaccinesfor pharmaciesfor hospitals

Brief description
Medium-capacity medical refrigerator for vaccines and pharmaceuticals with glass door and positive temperature control, suitable for pharmacies, laboratories, hospitals and private clinics.

Series and use
The MEDIKA® series of refrigerators for pharmaceuticals and vaccines features a clean, functional design with glass door and adjustable compartments to optimise storage. Designed for use in pharmacies, hospital wards, medical practices, aesthetic and dental clinics, ophthalmology, laboratories and the pharmaceutical industry. Compliant with current international standards and available in multiple capacities with optional internal configuration.

Door and closure
The door is made of tempered glass in compliance with IEC 61010-1, anti-fog and low-emissivity for improved thermal performance, with anodized aluminium profiles. Full-length ergonomic handle. Magnetic gasket on four sides, automatic closing with return spring and 90° door stop. Reversible opening.

Accessories available on request

• Lock with key
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Wire rack 14 x 42 x 15 cm H (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Plexiglass front riser for drawer
• Drawer with lock for narcotics
• Sliding wire drawer on guides for models 170-200-250-400
• Wheel kit (2 with brake) for models 170-200-250-400
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Controller
Electronic controller ECT-F: temperature display and setting with 0.1 °C resolution, accuracy ±0.3 °C. 16-character backlit alphanumeric LCD, configurable in 5 languages. 4-button membrane keyboard, option to set password to protect power on/off and set-point changes. Alarms: three main temperature alarm types; recording of 12 events.

Structure and refrigeration

• Internal dimensions: 50 x 48.5 x 107.5 cm
• Nominal capacity: 250 L (8.82 cu ft)
• Net capacity: 264 L (9.33 cu ft)
• Insulation: injected polyurethane foam between walls, very high density (43 kg/m3), CFC-free, water-blown
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Structure: one-piece shell in white plastic-coated steel, internal/external non-toxic finish with certified antibacterial treatment; rounded corners and sump base
• Movement: 4 unidirectional rollers included and two front feet for stability
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air ventilation
• Defrosting: automatic adaptive with condensate evaporation

Application areas
Ideal for pharmacies, laboratories, hospitals and private clinics; also suitable for medical practices, aesthetic, dental and ophthalmic clinics and the pharmaceutical industry.

Features / technical specifications

• Model: MEDIKA 250 ECT-F
• Brand: Fiocchetti
• Code: MED0251
• Temperature range: +2 / +15 °C
• Capacity / Volume: 264 L (9.32 cu ft)
• External dimensions (W x D x H): 60 x 66 x 163.5 cm
• Internal dimensions: 50 x 48.5 x 107.5 cm
• Nominal capacity: 250 L (8.82 cu ft)
• Net capacity: 264 L (9.33 cu ft)
• Electronics type: ECT-F (electronic controller)
• Insulation type: injected polyurethane foam (density 43 kg/m3), CFC-free
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Door: tempered anti-fog low-emissivity glass, anodized aluminium profiles, reversible opening
• Gasket: magnetic on four sides; automatic closing with spring and 90° door stop
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air ventilation
• Defrosting: automatic adaptive with condensate evaporation
• Refrigerant gas: R290
• Consumption: 0.6 kWh/24h
• Power / Current: 0.17 kW / 1 A
• Inrush current: 3 A
• Noise level: <45 dBA
• Heat emitted (EN 12900): 25 W
• Max number of shelves: 6 (shelf size: 46 x 45 cm)
• Max number of drawers: 10
• Internal drawer size with dividers (W x D x H) (x n. spaces): 11.8 x 40 x 7.5 cm (3 spaces)
• Internal drawer size without dividers (W x D x H): 39 x 40 x 7.5 cm
• Max number of wire drawers: 10
• Wire drawer internal size (W x D x H): 43.5 x 40.5 x 6.2 cm
• Display and controls: 0.1 °C resolution, accuracy ±0.3 °C, 16-character alphanumeric LCD, 4-button membrane keyboard, configurable in 5 languages
• Alarms: main signalling of 3 types of temperature alarms; recording of 12 events
