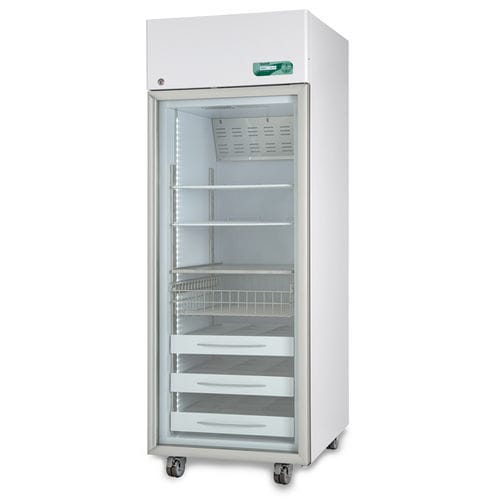

Pharmacy refrigerator MEDIKA 700 ECT-F

upright1-doorwith glass door

Summary
Column refrigerator designed for medicines and vaccines with a tempered glass door and positive temperature range. Suitable for pharmacies, laboratories, hospitals and private clinics. Code MED0701.

Main data
Temperature range: +2 / +15°C
Net capacity: 620 L (21.89 cu ft) - Nominal capacity: 700 L (24.72 cu ft)
External dimensions (WxDxH): 75 x 84.5 x 210 cm
Internal dimensions: 60 x 68 x 150 cm
Electronic type: ECT-F

Main features

• Tempered glass door compliant with IEC 61010-1, anti-condensation low-emissivity glass with anodized aluminium profiles.
• Full-length ergonomic handle; magnetic gasket on all four sides; automatic return spring closing with 90° door stop; reversible door opening.
• Single-shell white coated steel structure with certified antibacterial treatment internal/external or internal AISI 304 18/10 stainless steel; rounded corners and basin-type floor.
• High-density injected polyurethane insulation (43 kg/m3), CFC-free, eco water-injection; insulation thickness 75 mm.
• 4 height-adjustable feet for maximum stability; wheel kit available as accessory.
• Full-height internal Full LED lighting.
• Professional forced-air refrigeration.
• Automatic adaptive defrost with condensate water evaporation.

ECT-F electronic controller
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C. 16-character backlit alphanumeric LCD configurable in 5 languages. 4-button membrane keypad, configurable password to protect power on/off and set-point changes. Temperature alarms (three main types) and 12-event log.

Accessories available on request

• Lock with key
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Shelf for models 700-1500
• Stainless steel shelf for models 700-1500
• Perforated stainless steel shelf for models 700-1500
• Wire rack 14 x 50 x 15 cm H (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 700-1500
• Sliding aluminium drawer without dividers for models 700-1500
• Plexiglass front riser for drawer
• Sliding wire basket
• Sliding wire drawer on runners for models 700-1500
• Drawer with lock for narcotics
• Wheel kit (2 with brake) for model 700
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Characteristics / Technical specifications

• Refrigerant type: R290.
• Consumption: 1 kWh/24h.
• Power absorbed / Current: kW 0.12 / A 0.7.
• Starting current: A 2.5.
• Noise level: 50 dBA.
• Heat emitted EN 12900: W 40.
• Max number of shelves: 7; shelf size: 56 x 65 cm.
• Max number of drawers: 14; internal drawer size with dividers (LxDxH) (x n.spaces): 15 x 60 x 7.5 cm (3).
• Internal drawer size without dividers (LxDxH): 49 x 60 x 7.5 cm.
• Max number of wire baskets: 7; internal basket size (LxDxH): 53.8 x 60.5 x 14.8 cm.
• Max number of wire drawers: 14; internal wire drawer size (LxDxH): 53.8 x 60.5 x 6.2 cm.
• Insulation thickness: 75 mm.
• Defrost type: automatic, with condensate water evaporation.
• Lighting: Full-height internal Full LED.
