Vaccine refrigerator MEDIKA 2T 1000 ECT-F

for pharmaciesfor hospitalsmedical

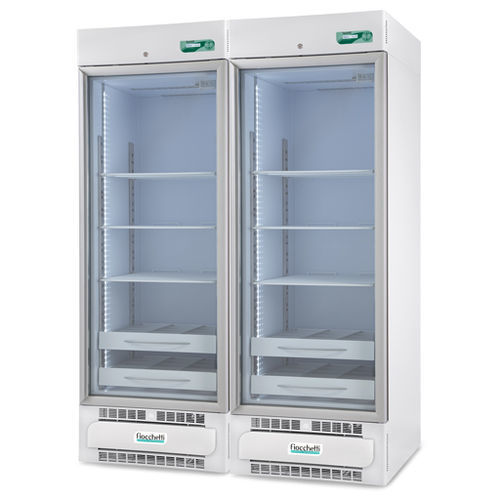

Overview MEDIKA 2T 1000 ECT-F refrigerators consist of two adjacent biological refrigeration units of 500 L each (model composed of 2 refrigerators), with two opposite tempered glass doors, two displays and positive temperature in both compartments. Designed for storage of medicines and vaccines in pharmacies and hospitals. Model code: MED0501 (x2).

Main functional features The MEDIKA 2T® series features dual compartments and dual compressors allowing differentiated positive temperatures; anti-condensation, low-emissivity tempered glass doors compliant with IEC 61010-1; full-length ergonomic handles; magnetic gasket on four sides; automatic closing with return spring and 90° door stop; customizable interior for organized stock storage.

Structure and refrigeration Internal dimensions: 60 x 58 x 150 cm (x2). Nominal capacity: 500+500 L (17.65+17.65 cu ft). Net capacity: 527+527 L (18.61+18.61 cu ft). Insulation type: high-density injected polyurethane (43 kg/m3), CFC-free, ecological water-based injection. Insulation thickness: 75 mm rear / 60 mm sides. Structure: single-shell painted non-toxic white steel internal/external with certified antibacterial treatment or internal AISI 304 18/10 stainless steel; rounded corners and tray base. Mobility: 4 unidirectional rollers included and two front feet. Internal lighting: full-height LED. Refrigeration type: professional forced-air. Defrost type: automatic adaptive with condensate water evaporation.

Electronic controller ECT-F Temperature display and setting with 0.1°C resolution and ±0.3°C accuracy via 16-character backlit alphanumeric LCD, configurable in 5 languages. 4-key membrane keypad with user interaction and configurable password to protect power on/off and set-point changes. Display configurable in four reading modes. Alarms: the controller signals three types of temperature alarms and logs 12 events.

Main technical data
Temperature range: +2/+15°C | +2/+15°C
Reported total capacity: 1054 L (37.22 cu ft)
External dimensions (LxDxH): 144 x 76 x 208 cm
Controller type: ECT-F
Refrigerant gas type: R290
Consumption: 1+1 kWh/24h
Power absorbed / Current: kW 0.17 + 0.17 / A 1 + 1
Inrush current: A 3 + 3
Noise: <45 dBA
Heat emitted EN 12900: W 40+40
Max number of shelves: 7+7 (shelf size: 56 x 55 cm)
Max number of drawers: 14+14
Internal drawer dimensions with dividers (LxDxH) (n.spaces): 15 x 50 x 7.5 cm (3)
Internal drawer dimensions without dividers (LxDxH): 49 x 50 x 7.5 cm

Accessories available on request

• Lock with key
• Shelf for model 500
• Sliding aluminium drawer with dividers for model 500
• Sliding aluminium drawer without dividers for model 500
• Drawer with lock for narcotics
• Plexiglass front riser for drawer
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for model 500
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packing

Recommended uses Suitable for pharmacies, hospitals and other healthcare facilities where dual positive temperatures are required for ordered and secure storage of medicines and vaccines.

Characteristics / technical specifications

• Model: MEDIKA 2T 1000 ECT-F
• Code: MED0501 (x2)
• Construction: single-shell painted steel white or internal AISI 304 18/10 stainless steel
• Nominal volume capacity: 500+500 L (net 527+527 L)
• Total capacity: 1054 L (37.22 cu ft)
• Internal dimensions (x2): 60 x 58 x 150 cm
• External dimensions (LxDxH): 144 x 76 x 208 cm
• Operating temperature: +2/+15°C
• Insulation: injected polyurethane 43 kg/m3, CFC-free
• Insulation thickness: 75 mm rear / 60 mm sides
• Doors: tempered anti-condensation low-emissivity glass
• Lighting: full-height LED
• Refrigerant: R290
• Energy consumption: 1+1 kWh/24h
• Power absorbed: 0.17+0.17 kW
• Current: 1+1 A
• Inrush current: 3+3 A
• Noise: <45 dBA
• Heat emitted (EN 12900): 40+40 W
• Max shelves: 7+7 (56 x 55 cm)
• Max drawers: 14+14 (internal drawer with dividers 15 x 50 x 7.5 cm / without dividers 49 x 50 x 7.5 cm)
• Controller: ECT-F, resolution 0.1°C, accuracy ±0.3°C, 16-character LCD, 5 languages, 4 keys
• Alarms: three types and 12-event log
