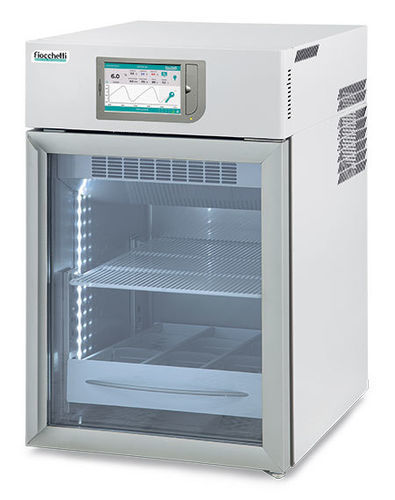

Hospital refrigerator MEDIKA 100 TOUCH

for pharmaciesfor laboratoryfor dental offices

Overview Small professional undercounter pharmacy refrigerator with glass door, integrated 7" full touchscreen controller and temperature data recording. Certified as a Medical Device Risk Class I. Designed for safe storage of medicines and vaccines with adjustable compartments to optimize space.

Main application areas

• Pharmacies
• Hospital wards and clinics
• Physicians', aesthetic medicine, dental and ophthalmology practices
• Laboratories and pharmaceutical industry

Key features

• Tempered glass door compliant with IEC 61010-1; anti-fog low-emissivity glass with anodized aluminium profiles
• Full-length ergonomic handle; magnetic gasket sealing all round; reversible door opening; automatic return spring and door stop at 90°
• Full-height LED interior lighting with adjustable brightness
• Adaptive automatic defrost with condensate evaporation
• Energy saving Night & Day function
• Professional forced-air refrigeration

Structure and refrigeration

• Inner dimensions: 44 x 51.6 x 42.1 cm
• Nominal capacity: 100 L (3.53 cu ft)
• Net capacity: 96 L (3.40 cu ft)
• Insulation: high-density injected PUF (43 kg/m3), CFC-free, water-foam injection
• Insulation thickness: 40 mm
• Structure: monocoque type with atoxic white plastified steel interior/exterior and special antibacterial film; optional inner 18/10 AISI 304 stainless steel; inner bottom with rounded corners
• 4 feet H = 1.5 cm for maximum stability

Performance and capacity (page highlights)

• Temperature range: +2 / +15 °C
• Capacity (listed on page): 126 L (4.45 cu ft)
• External dimensions (WxDxH): 52 x 63.5 x 81.5 cm
• Wire shelves max no.: 2 (wire shelf dimensions: 40 x 47 cm)
• Drawers max no.: 3 (inner compartment dimensions with dividers: 10 x 45 x 7.5 cm; without dividers: 33 x 45 x 7.5 cm)

Refrigerator technical data

• Refrigerant gas: R290
• Energy consumption: 0.5 kWh/24h
• Power absorption / current: 0.14 kW / 0.9 A
• Inrush current: 2.5 A
• Noise level: <40 dBA
• Heat rejection EN 12900: 20 W

Controller (7" FULL TOUCH SCREEN)

• Microprocessor controller with 7" full touchscreen; 0.1 °C resolution and ±0.3 °C accuracy
• Standard temperature and alarm recording; simultaneous multi-trace real-time graph display of temperature, setpoint (editable), alarm limits (editable), energy consumption and battery status (optional)
• Controller panel with 3 slots: SD card for data history, USB port for download/update, SIM card slot for GSM module (optional)
• Integrated web server for LAN (RJ45) and MODBUS TCP/IP connection
• Anti-freeze and anti-overheating protection; dry contact for remote alarm
• Acoustic and visual alarms, silenceable, with automatic recording

Optional accessories and add-ons (available on request)

• Electronic lock
• Acoustic and visual power-failure alarm
• DMLP TOUCH module for independent temperature recording
• GSM module
• Wi‑Fi module
• Gateway IoT
• Local monitoring system FIOCCHETTI LAN SUPERVISOR
• Power-failure alarm kit
• External terminal board for ECT‑F TOUCH
• Digital electric key
• 4‑20 mA converter module
• Shelf for models 100‑140‑280‑300
• Pull-out aluminium drawer with dividers for models 100‑140‑280
• Pull-out aluminium drawer without dividers for models 100‑140‑280
• Plexiglass front for drawers
• Wheels kit (2 with brakes) for mod.100‑140‑280
• Undirectional rollers
• Internal power socket
• Access port Ø 35 mm with stopper
• Port hole Ø 15 mm
• Humidity sensor
• PT100 probe (free contacts)
• Power supply 220 V / 1~ / 60 Hz
• Power supply 115 V / 1~ / 60 Hz
• Voltage stabilizer
• Wooden crate packaging
• Temperature product simulation
• DIN 13277 conformity (for ECT‑F TOUCH)

Notes The product is part of the MEDIKA® pharmacy refrigerators family by Fiocchetti and is specifically configured for safe storage of medicines and vaccines with data logging and connectivity options.

Technical specifications

• Model family: MEDIKA®
• Model: MEDIKA 100 TOUCH
• Code on page: MED0102
• Temperature range: +2 / +15 °C
• Capacity (page stats): 126 L (4.45 cu ft)
• Nominal capacity: 100 L (3.53 cu ft); Net capacity: 96 L (3.40 cu ft)
• External dimensions (WxDxH): 52 x 63.5 x 81.5 cm
• Inner dimensions: 44 x 51.6 x 42.1 cm
• Insulation: PUF injected 43 kg/m3, thickness 40 mm, CFC-free
• Refrigerant: R290
• Energy consumption: 0.5 kWh/24h
• Power absorption/current: 0.14 kW / 0.9 A; Inrush current: 2.5 A
• Noise level: <40 dBA
• Shelves max nr.: 2; Wire shelves dims: 40 x 47 cm
• Drawers max nr.: 3; Drawers compartments with dividers: 10 x 45 x 7.5 cm; without dividers: 33 x 45 x 7.5 cm
• Controller: 7" full touchscreen, 0.1 °C resolution, ±0.3 °C accuracy; SD / USB / optional SIM; LAN RJ45 and MODBUS TCP/IP; alarms and logging
