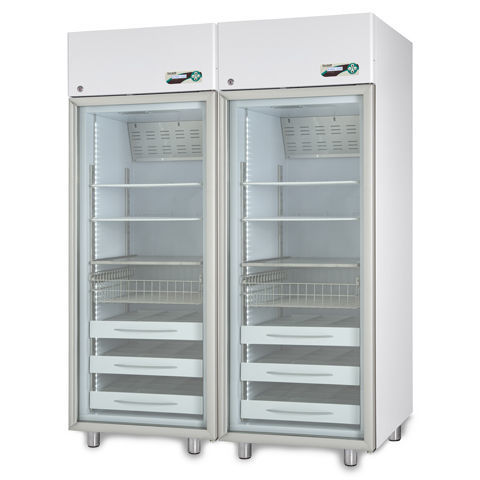

Pharmacy refrigerator MEDIKA 2T 1500 ECT-F PLUS

for hospitalsupright2 doors

Overview
Model consisting of two large biological refrigerators side-by-side, 700 L each, with two opposing glazed doors, two displays and positive temperature operation in both compartments. Designed for storage of medicines and vaccines in pharmacies and hospitals.

Main features

• Dual compartment and dual compressors to maintain two positive temperature zones.
• 2 tempered anti-fog, low-emissivity glass doors (IEC 61010-1) with anodized aluminium profiles.
• Full‑length ergonomic handles; four‑side magnetic gasket; automatic door closing with return spring and 90° hold-open.
• Fully customizable interior (shelves, drawers, baskets, racks).
• Internal lighting: full-height LED.
• Refrigeration type: professional forced-air ventilation.
• Defrost: automatic adaptive with condensate evaporation.

Structure and refrigeration specifications
Internal dimensions (each compartment): 60 x 68 x 150 cm
Nominal capacity: 700+700 L (24.72+24.72 cu ft)
Net capacity: 620+620 L (21.89+21.89 cu ft)
Insulation: injected high-density polyurethane (43 kg/m3), CFC-free with eco water-based injection.
Insulation thickness: 75 mm
Structure: single-shell painted steel white non-toxic inside/outside with certified antibacterial treatment; interior also available in AISI 304 stainless steel 18/10; rounded corners and sump base; 4 adjustable feet.

ECT-F PLUS controller
Temperature display and setting with 0.1°C resolution and ±0.3°C accuracy; 16-character backlit alphanumeric LCD configurable in 5 languages; 4-button membrane keypad. Buffer battery for power-failure alarm up to 48 h; min/max temperature memory; clean contact on the electronic board for remote alarms; display configurable in various modes; option to set password for protection of power on/off and set-point change. Controller logs up to 16 events plus absolute min/max temperature, resettable by user.

Technical data (excerpt)

• Refrigerant gas: R290.
• Consumption: 1+1 kWh/24h.
• Power absorbed / Current: 0.12+0.12 kW / 0.7+0.7 A.
• Starting current: 2.5+2.5 A.
• Noise level: <50 dBA.
• Heat emitted (EN 12900): 40+40 W.
• Max shelves: 7+7; shelf size: 56 x 65 cm.
• Max drawers: 14+14; drawer internal size with dividers (LxDxH): 15 x 60 x 7.5 cm (3 spaces).
• Drawer internal size without dividers (LxDxH): 49 x 60 x 7.5 cm.
• Max wire baskets: 7+7; basket internal size (LxDxH): 53.8 x 60.5 x 14.8 cm.
• Max wire drawers: 14+14; wire drawer internal size (LxD): 53.8 x 60.5 cm.

Additional information
Temperature range: +2/+15°C | +2/+15°C
Indicated total capacity on data sheet: 1240 L (43.79 cu ft)
External dimensions (WxDxH): 150 x 84.5 x 210 cm
Electronics type: ECT-F PLUS
Product code shown on page: Cod. MED0703 (x2)

Characteristics / technical summary

• Model: MEDIKA 2T 1500 ECT-F PLUS (unit composed of 2 refrigerators of 700 L each)
• Operating temperature: +2/+15°C (both units)
• Nominal capacity: 700+700 L; stated capacity 1240 L
• Internal dimensions (per compartment): 60 x 68 x 150 cm
• Total external dimensions: 150 x 84.5 x 210 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 75 mm
• Door: tempered anti-fog, low-emissivity glass
• Refrigerant: R290
• Power consumption: 1+1 kWh/24h
• Power absorbed: 0.12+0.12 kW (0.7+0.7 A); starting 2.5+2.5 A
• Noise: <50 dBA
• Internal lighting: full LED
• Controller: ECT-F PLUS with 0.1°C resolution, 48 h buffer battery, min/max memory, clean contact for remote alarm, 16-event log
• Interior configurations: max 7+7 shelves, max 14+14 drawers; baskets and racks available as accessories
