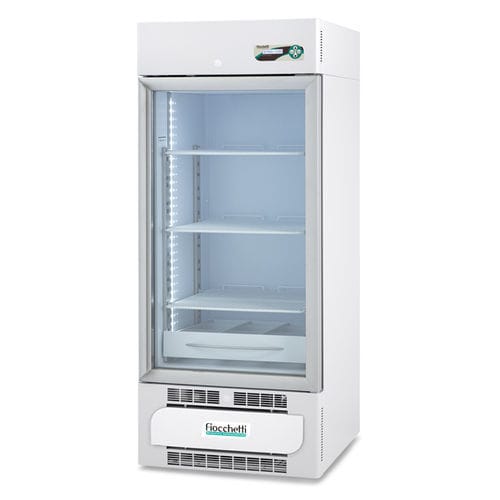

Pharmacy refrigerator MEDIKA 200 ECT-F PLUS

upright1-doorwith glass door

Overview
Medium-size medical refrigerator for vaccines and pharmaceuticals with glass door and positive temperature range, suitable for pharmacies, laboratories, hospitals and private clinics.

Series
MEDIKA® – clean, functional design with anti‑fog low‑emissivity tempered glass door and anodized aluminium profiles; adjustable compartments and customizable internal configuration.

Key data
Temperature range: +2 / +15°C
Net capacity: 221 L
External dimensions (W x D x H): 60 x 66 x 146 cm
Electronics type: ECT-F PLUS

Structure and refrigeration

• Internal dimensions: 50 x 48.5 x 90 cm
• Nominal capacity: 200 L
• Net capacity: 221 L
• Insulation: high‑density injected polyurethane (43 kg/m³), CFC‑free, water‑blown
• Insulation thickness: 70 mm (back) / 50 mm (sides)
• Construction: one‑piece white plastic‑coated steel interior/exterior with certified antibacterial treatment; optional 18/10 AISI 304 stainless steel interior; rounded corners and tank base
• 4 unidirectional rollers included for easy handling and two front feet for stability
• Internal lighting: full‑height LED
• Refrigeration type: professional forced‑air ventilation
• Defrost: adaptive automatic with condensate evaporation

Door and accessibility
Tempered glass door compliant with IEC 61010‑1, anti‑fog low‑emissivity glass; full‑length ergonomic handle; magnetic gasket on four sides; automatic return spring closure with 90° hold‑open; reversible door hinge.

ECT-F PLUS electronic controller
Temperature display and set‑point with 0.1°C resolution and ±0.3°C accuracy. 16‑character backlit alphanumeric LCD configurable in multiple languages; 4‑key membrane keypad. Backup batteries for alarm memory up to 48 hours during power loss; min/max temperature memory; clean contact for remote alarms. Configurable display modes and password protection for power on/off and set‑point changes. Event logging and multiple temperature alarms, including high‑temperature alarm on power failure.

Available accessories on request

• Lock with key
• External clean contacts for ECT‑F PLUS
• Anti‑freeze safety
• DIN 13277 compliance (for ECT‑F PLUS)
• Chart recorder
• Shelf (models 170‑200‑250‑400)
• Stainless steel shelf (models 170‑200‑250‑400)
• Perforated stainless steel shelf (models 170‑200‑250‑400)
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Aluminium sliding drawer with dividers (models 170‑200‑250‑400)
• Aluminium sliding drawer without dividers (models 170‑200‑250‑400)
• Plexiglass front lip for drawer
• Sliding wire drawer on guides
• Lockable narcotics drawer
• Wheel kit (2 wheels with brake) for models 170‑200‑250‑400
• Internal power outlet
• Cable pass‑through Ø35 mm with plug
• Hole Ø15 mm
• Humidity probe
• PT100 probe with free contacts
• 220V/1~/60Hz power supply
• 115V/1~/60Hz power supply
• Voltage stabilizer
• Cage packing

Characteristics / Technical specifications

• Refrigerant gas: R290
• Consumption: 0.6 kWh/24h
• Power input: 0.17 kW (Current: 1 A)
• Inrush current: 3 A
• Noise level: <45 dBA
• Heat emission (EN 12900): 25 W
• Max number of shelves: 5 (shelf size: 46 x 45 cm)
• Max number of drawers: 8
• Internal drawer size with dividers (W x D x H): 11.8 x 40 x 7.5 cm (for 3 spaces)
• Internal drawer size without dividers (W x D x H): 39 x 40 x 7.5 cm
• Max number of wire drawers: 8
• Internal wire drawer size (W x D x H): 43.5 x 40.5 x 6.2 cm
