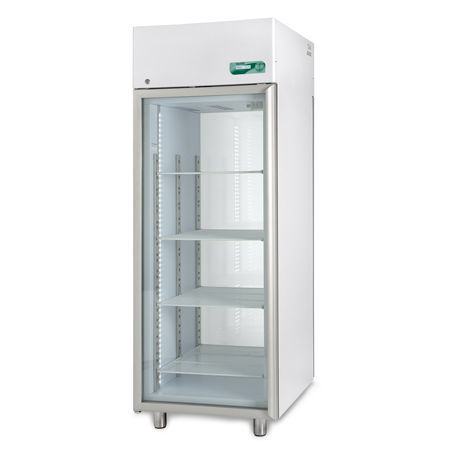

Laboratory refrigerator MEDIKA 700 PT ECT-F

for vaccinesfor pharmaciesfor hospitals

Summary
Pass-through refrigerator for pharmaceuticals and vaccines with 2 glass doors and positive temperature range, suitable for transfer positions between rooms in pharmacies, laboratories, hospitals and private clinics.

Series
The MEDIKA® series refrigerators for pharmaceuticals and vaccines feature a clean, functional design with glass doors and adjustable compartments to optimise storage. Designed for use in pharmacies, hospital departments, medical, aesthetic, dental and ophthalmic practices, laboratories and the pharmaceutical industry; compliant with international standards and available in multiple capacities and configurable interiors.

Door and closing
Doors are tempered glass compliant with IEC 61010-1 safety standards, anti-fog and low-emissivity glass for improved thermal performance with anodised aluminium profiles. Full-length ergonomic handle; magnetic gasket on four sides; automatic closing with return spring and 90° door stop. Reversible opening direction.

Structure and refrigeration

• Internal dimensions: 60 x 74 x 150 cm
• Nominal capacity: 700 L (24.7 cu ft)
• Net capacity: 600 L (21.19 cu ft)
• Insulation type: high-density injected polyurethane (43 kg/m3), CFC-free, ecological water-blown injection
• Insulation thickness: 75 mm
• Construction: single-shell white plastified steel internal/external with certified antibacterial treatment or internal 18/10 AISI 304 stainless steel; rounded corners and basin-shaped floor
• 4 height-adjustable feet
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost type: automatic adaptive with condensate evaporation

Main operating characteristics
Temperature range +2 / +15°C; indicated capacity on product sheet 668 L (23.59 cu ft) (values on the site: 668 L and nominal 700 L, net capacity 600 L). External dimensions: 75 x 90.5 x 210 cm.

Controller
Electronic controller ECT-F: temperature display and setting with 0.1°C resolution, accuracy ±0.3°C, 16-character backlit alphanumeric LCD configurable in 5 languages. 4-button membrane keypad, option to set a password for power on/off and set-point change protection. Alarms: three types of temperature alarm and recording of 12 events.

Accessories available on request

• Lock with key
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Shelf for models 700-1500
• Wire rack 14 x 50 x 15 cm H (max 3 per shelf)
• Wheel kit (2 with brake) for model 700
• Internal power outlet
• Cable passthrough hole diameter 35 mm with plug
• Hole diameter 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Cage packaging

Technical characteristics / specifications

• Model: MEDIKA 700 PT ECT-F
• Type: Pass-through refrigerator for pharmaceuticals and vaccines, 2 glass doors
• Temperature range: +2 / +15°C
• Reported capacities: 668 L (23.59 cu ft) - Nominal capacity 700 L - Net capacity 600 L
• External dimensions (W×D×H): 75 x 90.5 x 210 cm
• Internal dimensions: 60 x 74 x 150 cm
• Electronics/controller type: ECT-F
• Refrigerant gas: R290
• Consumption: 3 kWh / 24h
• Power input / Current: 0.27 kW / 1.7 A
• Start-up inrush current: 6 A
• Noise level: <55 dBA
• Heat emission (EN 12900): 125 W
• Max no. of grids: 7
• Grid dimensions: 56 x 66 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 75 mm, CFC-free
• Refrigeration type: professional forced-air
• Defrost: automatic adaptive with condensate evaporation
• Internal lighting: full-height LED
• Structure: white plastified non-toxic steel internal/external with certified antibacterial treatment or internal 18/10 AISI 304 stainless steel; rounded corners, basin floor
• Feet: 4 adjustable feet
• Doors: tempered anti-fog low-emissivity glass, anodised aluminium profiles, full-length ergonomic handle, magnetic gasket, automatic closing with spring and 90° door stop; reversible opening
