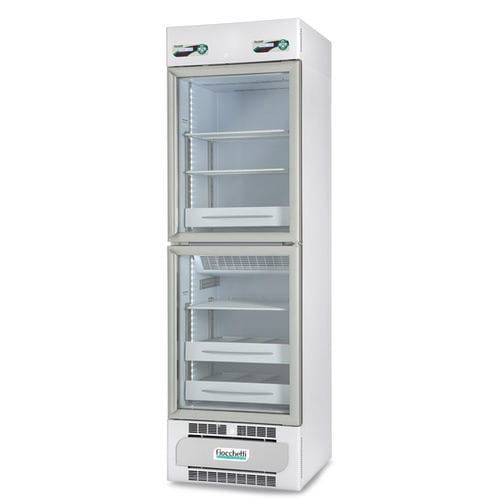

Pharmacy refrigerator MEDIKA 2T 400 ECT-F PLUS

cabinetupright2 doors

Brief description
Mid-size refrigerator with dual compartments and dual motors, designed for storage of medicines and vaccines at different positive temperatures. Nominal capacity 200+200 L (400 L total declared), tempered glass doors, two displays with alarms including during power failure. Code on site: MET0403.

Quick overview

• Temperature range: +2/+15°C | +2/+15°C
• Declared capacity: 358 L (12.64 cu ft) – nominal capacity 200+200 L
• External dimensions (W×D×H): 60 × 66 × 202 cm
• Controller type: ECT-F PLUS

Structure and refrigeration

• Internal dimensions: 50 × 49.5 × 68.5 / 50 × 49.5 × 73 cm
• Nominal capacity: 200+200 L (7.06+7.06 cu ft)
• Net capacity: 170+160 L (6.01 + 5.66 cu ft)
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water-based ecological injection
• Insulation thickness: 70 mm rear / 50 mm sides
• Structure: one-piece shell in white plastified non-toxic steel internal/external with certified antibacterial treatment; interior also available in AISI 304 18/10 stainless steel; rounded corners and tank base
• Mobility: 4 unidirectional rollers included and two front adjustable feet
• Internal lighting: full-height LED inside compartments
• Refrigeration type: professional ventilated
• Defrost type: automatic, adaptive with condensation water evaporation

Doors and accessibility

• Two tempered glass doors according to IEC 61010-1, anti-condensation and low-emissivity
• Anodized aluminium profiles
• Ergonomic full-length handle
• Magnetic gasket sealing on four sides, automatic closing with return spring and 90° door stop
• Reversible door opening

Controller ECT-F PLUS

• Temperature display and setting with 0.1°C resolution, accuracy +/- 0.3°C
• 16-character backlit alphanumeric LCD, configurable in 5 languages and 4 different display modes
• 4-key membrane keyboard; configurable password to protect switch-on/off and set-point changes
• Buffer battery for power-failure alarm up to 48 hours
• Minimum/maximum temperature memory and logging of 16 events resettable by the user
• Clean contact on the electronic board for remote alarm integration
• Management and signalling of multiple alarms, including high-temperature alarm due to power failure

Main technical data

• Refrigerant gas: R290
• Consumption: 1.4 kWh/24h
• Power absorbed: 0.17+0.17 kW
• Current: Amp 1+1
• Starting current: Amp 3+3
• Noise level: <50 dBA
• Heat emitted (EN 12900): 58 W
• Max no. of shelves: 3+3 (shelf size 46×45 cm)
• Max no. of drawers: 5+5
• Internal drawer size with dividers (W×D×H) (× n.slots): 11.8 × 40 × 7.5 cm (3)
• Internal drawer size without dividers (W×D×H): 39 × 40 × 7.5 cm
• Wire drawer max no.: 5+5
• Wire drawer internal size (W×D×H): 43.5 × 40.5 × 6.2 cm

Accessories available on request

• Lock with key
• ECT-F PLUS external clean contacts
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless shelf for models 170-200-250-400
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Sliding wire drawer on guides for models 170-200-250-400
• Plexiglass front riser for drawer
• Drawer with lock for narcotics
• Wire rack 14 × 42 × 15 cm (max 3 per shelf)
• Wire rack 14 × 50 × 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for models 170-200-250-400
• Internal power outlet
• Cable gland hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Characteristics / technical specifications

• Series: MEDIKA 2T ®
• Model on site / code: MET0403
• Type: positive dual-temperature refrigerator with 2 glass doors and 2 motors
• Nominal capacity: 200+200 L (7.06+7.06 cu ft)
• Net capacity: 170+160 L (6.01 + 5.66 cu ft)
• Declared capacity (on site): 358 L (12.64 cu ft)
• Temperature range: +2/+15°C | +2/+15°C
• External dimensions (W×D×H): 60 × 66 × 202 cm
• Internal dimensions per compartment: 50 × 49.5 × 68.5 / 50 × 49.5 × 73 cm
• Insulation: injected polyurethane density 43 kg/m3, CFC-free
• Insulation thickness: 70 mm (rear) / 50 mm (sides)
• Structure: plastified white non-toxic steel or interior in AISI 304 18/10 stainless steel
• Doors: tempered anti-condensation, low-emissivity glass, aluminium anodized profiles
• Handle: ergonomic full-length
• Gasket: magnetic on four sides; automatic closing with spring and 90° door stop; reversible opening
• Lighting: full-height LED
• Refrigeration: professional ventilated
• Defrost: adaptive automatic with condensate evaporation
• Controller: ECT-F PLUS (16-character LCD, 5 languages, 0.1°C resolution, accuracy +/-0.3°C, buffer battery for alarms up to 48 h, Tmin/Tmax memory, clean contact for remote alarms, 16-event logging, configurable password)
• Refrigerant gas: R290
• Energy consumption: 1.4 kWh/24h
• Power absorbed: 0.17+0.17 kW
• Current/Starting current: Amp 1+1; starting Amp 3+3
• Noise: <50 dBA
• Heat emitted EN12900: 58 W
• Max no. of shelves: 3+3 (46×45 cm)
• Max no. of drawers: 5+5; drawer sizes with dividers: 11.8 × 40 × 7.5 cm (×3); drawer without dividers: 39 × 40 × 7.5 cm; wire drawers: 5+5 (43.5 × 40.5 × 6.2 cm)
• Accessory types available (shelves, stainless shelves, perforated shelves, drawers with/without dividers, racks, wheel kits, outlets, probes, alternative power supplies, stabilizer, cage packaging)
