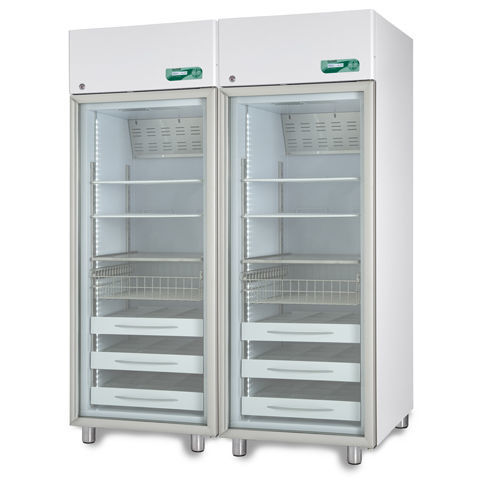

Vaccine refrigerator MEDIKA 2T 1500 ECT-F

for pharmacieshospitalmedical

Overview
Large-format unit composed of two side-by-side biological refrigerators of 700 L each with opposing glass doors, dual displays and positive temperature control in both compartments. Ideal for the storage of medicines and vaccines in pharmacies and hospitals.

Key features summary
Temperature range: +2/+15°C | +2/+15°C
Capacity: 1240 L total (700+700 L nominal)
External dimensions (W×D×H): 150 x 84.5 x 210 cm
Controller type: ECT-F

Detailed description
The MEDIKA 2T® series refrigerators feature dual compartments and dual compressors to store pharmaceuticals and vaccines at different positive temperatures. Tempered glass doors and a fully customizable interior ensure orderly stock management and easy access. Designed for pharmacy and hospital use where dual positive temperature zones are required and compliant with international standards and pharmacopeia.

Door and locking features
Doors in tempered safety glass compliant with IEC 61010-1, anti-fog and low-emissivity for improved thermal performance, with anodized aluminium profiles. Full‑length ergonomic handle. Magnetic gasket on all four sides, automatic return closing spring and 90° door stay.

Structure and refrigeration
Internal dimensions: 60 x 68 x 150 cm (x2)
Nominal capacity: 700 + 700 L
Net capacity: 620 + 620 L
Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water‑blown injection
Insulation thickness: 75 mm
Construction: one-piece cabinet in white coated steel with certified antibacterial treatment, or inner lining in AISI 304 stainless steel. Rounded corners and sump base. 4 adjustable feet.
Internal lighting: full-height LED
Cooling type: professional forced-air ventilation
Defrost: automatic adaptive with condensate evaporation

Controller ECT-F
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C on a 16-character backlit alphanumeric LCD. 4-button membrane keypad providing clear user feedback and four configurable display modes. Password protection for power, shutdown and set-point changes. Alarms: three types of temperature alarm and a 12-event log.

Technical data
Refrigerant: R290
Consumption: 1+1 kWh/24h
Power absorbed: 0.12+0.12 kW
Starting current: 2.5+2.5 A
Noise: <50 dBA
Heat emission (EN 12900): 40+40 W
Max shelves: 7+7 (56×65 cm)
Max drawers: 14+14
Wire baskets max: 7+7 (53.8×60.5×14.8 cm)

Accessories available on request

• Key lock
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Shelf for models 700–1500
• Stainless steel shelf for models 700–1500
• Sliding aluminium drawer with dividers for models 700–1500
• Sliding aluminium drawer without dividers for models 700–1500
• Plexiglass front riser for drawer
• Drawer with lock for narcotics
• Sliding wire basket
• Wire rack 14×42×15 cm (max 3 per shelf)
• Wire rack 14×50×15 cm (max 3 per shelf)
• Sliding wire drawer on guides for models 700–1500
• Wheel kit (2 with brake) for model 700
• Internal power outlet
• Cable gland hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Crate packing

Notes
Model engineered for safe conservation and orderly management of medicines and vaccines with dual positive temperature zones and dual compressors; interior fully customizable for shelves, drawers and racks.

Technical specifications

• Model: MEDIKA 2T 1500 ECT-F
• Series: MEDIKA 2T®
• Number of units: 2 side-by-side refrigerators (x2)
• Nominal capacity: 700 + 700 L (1240 L total)
• Net capacity: 620 + 620 L
• Temperature range: +2/+15°C
• External dimensions: 150 x 84.5 x 210 cm
• Internal dimensions (per compartment): 60 x 68 x 150 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 75 mm
• Refrigerant: R290
• Consumption: 1+1 kWh/24h
• Power absorbed: 0.12+0.12 kW
• Noise: <50 dBA
• Controller: ECT-F, 16-character backlit alphanumeric LCD, 0.1°C resolution, ±0.3°C accuracy, 5 languages, alarms and event log
• Doors: tempered anti‑fog low‑emissivity glass, anodized aluminium profiles
• Internal finish: antibacterial white coated steel or AISI 304 stainless steel
• Defrost: automatic adaptive with condensate evaporation
• Internal lighting: full-height LED
