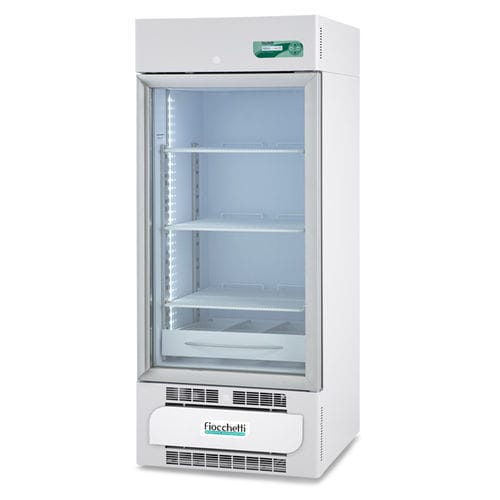

Laboratory refrigerator MEDIKA 200 ECT-F

for vaccinesfor pharmacieshospital

Pharmaceutical and vaccine refrigerator with glass door
MEDIKA® series refrigerators for pharmaceuticals and vaccines feature a clean, functional design with a tempered glass door and adjustable compartments to optimize storage. Designed for pharmacies, hospital wards, medical and dental clinics, ophthalmology, laboratories and pharmaceutical industry use. The glass door complies with IEC 61010-1 safety standards and is low-emissivity, anti-fog. Full-length ergonomic handle, magnetic gasket on all four sides, automatic return spring closing and 90° door stop with reversible opening direction.

Main features

• Temperature range: +2 / +15°C
• Capacity / Volume: 221 L (7.80 cu ft)
• External dimensions (W×D×H): 60 × 66 × 146 cm
• Electronic controller type: ECT-F

Structure and refrigeration

• Internal dimensions: 50 × 48.5 × 90 cm
• Nominal capacity: 200 L (7.06 cu ft)
• Net capacity: 221 L (7.80 cu ft)
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, eco-friendly water injection
• Insulation thickness: 70 mm (rear) / 50 mm (sides)
• Structure: one-piece white coated steel (internal/external) with certified antibacterial treatment or internal AISI 304 18/10 stainless steel; rounded corners and basin-shaped bottom
• Mobility: 4 unidirectional rollers included and two front feet
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost type: automatic adaptive with condensation evaporation

ECT-F electronic controller
Temperature display and setting with 0.1°C resolution and ±0.3°C accuracy via a 16-character alphanumeric backlit LCD. Keyboard with 4 membrane keys for intuitive user interaction. Display configurable in multiple reading modes and customizable in 5 languages. Password protection for power on/off and set-point changes. Alarms: the controller signals three main temperature alarm types and logs 12 events.

Accessories available on request

• Lock with key
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Steel wire rack 14 × 42 × 15 cm (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Front plexiglass riser for drawer
• Sliding wire drawer on guides for models 170-200-250-400
• Drawer with lock for narcotics
• Wheel kit (2 with brake) for models 170-200-250-400
• Internal power outlet
• Cable passthrough hole Ø 35 mm with cap
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Crate packaging

Notes
Product designed for control and storage of pharmaceuticals and vaccines in environments such as pharmacies, laboratories, hospitals and private clinics.

Technical specifications

• Product code: MED0201
• Commercial name: MEDIKA 200 ECT-F
• Refrigerant gas: R290
• Consumption: 0.6 kWh/24h
• Power consumption / Current: kW 0.17 / A 1
• Inrush current: A 3
• Noise: <45 dBA
• Heat emitted (EN 12900): W 25
• Maximum number of grids: 5
• Grid dimensions: 46 × 45 cm
• Maximum number of drawers: 8
• Internal drawer dimension with dividers (W×D×H) (x no. spaces): 11.8 × 40 × 7.5 cm (3)
• Internal drawer dimension without dividers (W×D×H): 39 × 40 × 7.5 cm
• Maximum number of wire drawers: 8
• Internal wire drawer dimension (W×D×H): 43.5 × 40.5 × 6.2 cm
