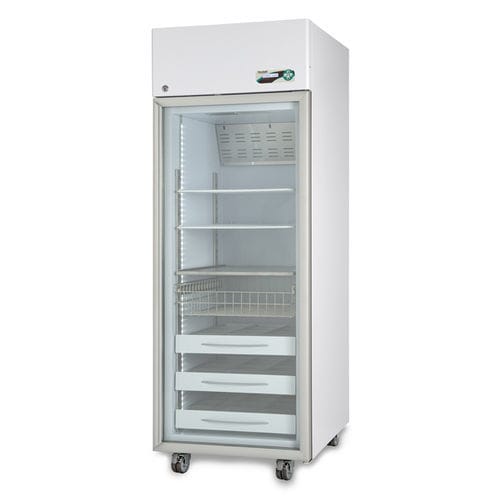

Pharmacy refrigerator MEDIKA 700 ECT-F PLUS

for drugsupright1-door

Pharmaceutical and vaccine refrigerator with glass door
Large upright refrigerator for pharmaceutical products and vaccines with glass door and positive temperature range, suitable for pharmacies, laboratories, hospitals and private clinics. The MEDIKA series features a clean, functional design with glass door and internally configurable shelving, drawers or baskets to optimise storage of medical supplies.

Key features

• Temperature range: +2 / +15°C
• Net capacity: 620 L — nominal capacity: 700 L
• External dimensions (WxDxH): 75 x 84.5 x 210 cm
• Controller type: ECT-F PLUS
• Product code: Cod. MED0703

Structure and refrigeration

• Internal dimensions: 60 x 68 x 150 cm
• Nominal capacity: 700 L — Net capacity: 620 L
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, eco-friendly water blown injection
• Insulation thickness: 75 mm
• Construction: single-shell white plastic-coated steel internal/external with certified antibacterial treatment or internal AISI 304 18/10 stainless steel; rounded corners and sump base
• 4 height-adjustable feet for maximum stability
• Internal lighting: full-height LED
• Refrigeration type: professional ventilated
• Defrost type: adaptive automatic with condensate evaporation

ECT-F PLUS ELECTRONIC CONTROLLER

• Temperature display and setting with 0.1°C resolution, accuracy +/- 0.3°C
• 16-character backlit alphanumeric LCD, configurable in 5 languages
• Keypad: 4 membrane keys
• Backup battery for power-failure alarm up to 48 hours
• Min/max temperature memory and 16 event logs, resettable by user
• Clean contact on electronic board for remote alarm connection
• Display configurable in four reading modes; customizable password for power on/off and set-point change protection

TECHNICAL DATA
Refrigerant type: R290
Energy consumption: 1 kWh/24h
Power absorption/Current: kW 0.12 / A 0.7
Start-up current: A 2.5
Noise level: 50 dBA
Heat emission EN 12900: W 40
Max number of grids: 7
Grid dimensions: 56 x 65 cm
Max number of drawers: 14
Internal drawer size with dividers (WxDxH) (x n.spaces): 15 x 60 x 7.5 cm (3)
Internal drawer size without dividers (WxDxH): 49 x 60 x 7.5 cm
Max number of wire baskets: 7
Wire basket internal size (WxDxH): 53.8 x 60.5 x 14.8 cm
Max number of wire drawers: 14
Wire drawer internal size (WxDxH): 53.8 x 60.5 x 6.2 cm

Available accessories

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Chart recorder
• Stainless steel shelves and trays for models 700-1500
• Wire racks and sliding drawers (aluminium or wire) for models 700-1500
• Wheel kit (2 with brake) for model 700
• Internal power outlet, cable entry holes, probes (humidity, PT100) and power supplies 220V/115V
• Voltage stabiliser and crate packaging

Characteristics / Technical specifications

• Series: MEDIKA®
• Model: MEDIKA 700 ECT-F PLUS
• Use: storage of medicines and vaccines (+2/+15°C)
• Gross capacity: 700 L — Net capacity: 620 L
• Internal dimensions: 60 x 68 x 150 cm — External: 75 x 84.5 x 210 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 75 mm
• Doors: tempered anti-fog low-emissivity glass door, anodised aluminium profiles, magnetic gasket, automatic closing with 90° door stay and reversible opening
• Control: ECT-F PLUS with LCD, backup battery, alarms and clean contact for remote signalling
• Refrigerant: R290
• Energy consumption: 1 kWh/24h
• Noise level: 50 dBA
• Lighting: full-height internal LED
• Internal configuration: configurable shelves, drawers and baskets
