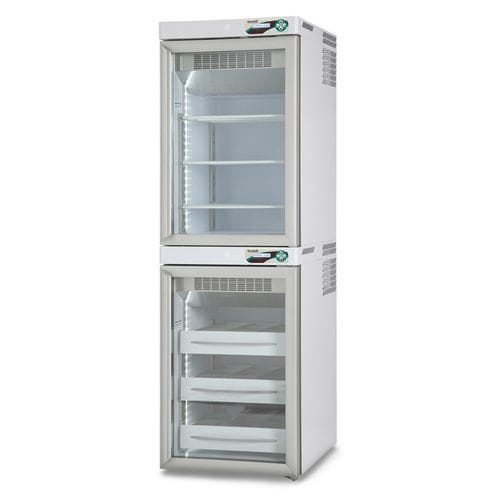

Pharmacy refrigerator MEDIKA 2T 280 ECT-F PLUS

for vaccinesfor healthcare facilitiesmedical

Brief description
Professional dual-temperature pharmaceutical refrigerator with dual compressors, total nominal capacity 280 L (140+140), two glass doors and both compartments set for positive temperature. Designed for pharmacies and medical facilities for storage of medicines and vaccines.

Main features

• Two independent compartments and dual compressors for storage at different setpoints
• Triple-layer tempered anti-condensation low-emissivity glass doors compliant with IEC 61010-1 safety standards
• Full-length ergonomic handle
• Magnetic gasket on four sides, automatic spring-closing and 90° door stop
• Fully customizable interior for stock organization and control
• Full-height internal LED lighting
• Professional ventilated refrigeration
• Adaptive automatic defrost with condensate water evaporation

Controller
ECT-F PLUS
Temperature display and setting with 0.1°C resolution and ±0.3°C accuracy; 16-character backlit alphanumeric LCD configurable in 5 languages. Membrane keypad with 4 keys, display configurable in four modes, customizable password for power on/off and set-point change. Backup battery for power-failure alarm up to 48 hours; min/max temperature memory and event logging; clean contact on the electronic board for remote alarm integration.

Structure and refrigeration

• Internal dimensions: 44 x 51.6 x 56 cm (x2)
• Nominal capacity: 140+140 L (4.94 + 4.94 cu ft)
• Net capacity: 128+128 L (4.53 + 4.53 cu ft)
• Insulation: highly dense injected polyurethane (43 kg/m3), CFC-free, eco-friendly water injection
• Insulation thickness: 40 mm
• Construction: single-shell white coated steel interior/exterior with certified antibacterial treatment; optional stainless steel AISI 304 interior; rounded corners and sump base
• 4 unidirectional rollers included for easy movement and two front feet for stability
• Refrigeration type: professional ventilated
• Internal lighting: full-height LED
• Defrost type: adaptive automatic with condensate evaporation

Technical data

• Refrigerant type: R290
• Consumption: 1 kWh/24h
• Absorbed power / Current: kW 0.14 + 0.14 / A 0.9 + 0.9
• Starting current: A 2.5 + 2.5
• Noise level: <45 dBA
• Heat emission (EN 12900): W 41
• Max number of shelves: 3+3
• Shelf dimensions: 40 x 47 cm
• Max number of drawers: 5+5
• Drawer dimensions with dividers (LxPxH) (n.spaces): 10 x 45 x 7.5 cm (3)
• Internal drawer dimensions without dividers (LxPxH): 33 x 45 x 7.5 cm
• Indicated temperature range: +2/+15°C | +2/+15°C
• Capacity (declared): 280 L (140+140) with alternative indication 306 L in specifications
• External dimensions (LxPxH): 52 x 66.5 x 166.5 cm
• Electronics type: ECT-F PLUS
• Product code: MET0283

Additional notes

• Tempered glass doors with anti-condensation treatment and anodized aluminium profiles
• Ergonomic handles and magnetic gaskets for thermal sealing
• Configurable display and alarms; event logging (16 events) and min/max temperature recording

Characteristics / technical specifications

• Series: MEDIKA 2T
• Commercial model: MEDIKA 2T 280 ECT-F PLUS
• Nominal capacity: 140+140 L (280 L total)
• Net capacity: 128+128 L
• Operating temperature: +2/+15°C (both compartments)
• Motorisation: dual compressors
• Refrigerant: R290
• Reported consumption: 1 kWh/24h
• Noise level: <45 dBA
• External dimensions: 52 x 66.5 x 166.5 cm
• Insulation: polyurethane 43 kg/m3, 40 mm thickness
• Lighting: full-height LED
• Controller: ECT-F PLUS with backup battery for alarms up to 48 hours
