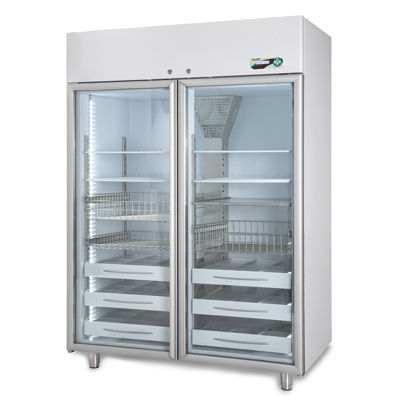

Laboratory refrigerator MEDIKA 1500 ECT-F PLUS

for vaccinesfor pharmaciesfor hospitals

Brief description
Large-capacity pharmaceutical and vaccine refrigerator with 2 glass doors and positive temperature range, suitable for pharmacies, laboratories, hospitals and private clinics.

MEDIKA® series overview
The MEDIKA® range of pharmaceutical and vaccine refrigerators features a clean, functional design with glass doors and customizable internal fittings (shelves, drawers or baskets) to optimise storage. Designed for pharmacies, hospital wards, medical, aesthetic, dental and ophthalmic offices, laboratories and the pharmaceutical industry. Compliant with international standards and available in multiple capacities and internal configurations.

Main features (summary)

• Temperature range: +2 / +15 °C
• Gross capacity: 1500 L (52.97 cu ft)
• Net capacity: 1355 L (48.87 cu ft)
• External dimensions (WxDxH): 144 x 83 x 207 cm
• Internal dimensions: 130 x 67 x 150 cm
• Electronics type: ECT-F PLUS

Structure and refrigeration
Internal dimensions: 130 x 67 x 150 cm
Nominal capacity: 1500 L (52.97 cu ft)
Net capacity: 1355 L (48.87 cu ft)
Insulation: injected high-density polyurethane (43 kg/m3), CFC-free, water-blown ecological injection.
Insulation thickness: 70 mm
Structure: single-shell construction in white coated steel, internal/external non-toxic coating with certified antibacterial treatment; optional AISI 304 stainless steel interior. Rounded corners and tank base. 4 adjustable feet for stability.
Internal lighting: full-height LED illumination.
Refrigeration: professional forced-air refrigeration.
Defrost: automatic, adaptive with condensate evaporation.

Doors and functional accessories
Doors in tempered safety glass according to IEC 61010-1, anti-condensation and low-emissivity glass for improved thermal performance, with anodised aluminium profiles. Full-length ergonomic handle. Magnetic gasket on all four sides. Automatic return closing with 90° door stay.

ECT-F PLUS electronic controller
Temperature display and setpoint with 0.1 °C resolution, accuracy +/- 0.3 °C via 16-character backlit alphanumeric LCD, configurable in 5 languages. 4-key membrane keypad.
Main controller functions:

• Backup battery for power-failure alarm up to 48 hours
• Min/max temperature memory and 16-event log, user-resettable
• Clean contact on the electronic board for remote alarm integration
• Display configurable in four reading modes
• Keypad with password option to protect power on/off and set-point changes
• Alarms for various conditions including high temperature due to power failure

Key technical data
Refrigerant type: R290
Consumption: 2.5 kWh/24h
Power absorbed / Current: 0.4 kW / 1.8 A
Inrush current: 6 A
Noise level: <55 dBA
Heat emitted (EN 12900): 125 W
Max number of shelves: 14 (shelf size: 56 x 65 cm)
Max number of drawers: 28
Drawer internal size with dividers (WxDxH) (x spaces): 15 x 60 x 7.5 cm (3)
Drawer internal size without dividers (WxDxH): 49 x 60 x 7.5 cm
Max number of wire baskets: 14
Wire basket internal size (WxDxH): 53.8 x 60.5 x 14.8 cm
Max number of wire drawers: 28
Wire drawer internal size (WxDxH): 53.8 x 60.5 x 6.2 cm

Accessories available on request

• Key lock
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Graphic chart recorder
• Shelf for models 700-1500
• Stainless steel shelf for models 700-1500
• Perforated stainless steel shelf for models 700-1500
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 700-1500
• Sliding aluminium drawer without dividers for models 700-1500
• Front plexiglass riser for drawer
• Sliding wire basket
• Sliding wire drawer on guides for models 700-1500
• Wheel kit (2 with brake) for model 1500
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Cage packaging

Operational notes
Ideal for pharmacy and vaccine storage, laboratories, hospitals and private clinics; internal configuration can be adapted with shelves, drawers and baskets according to storage needs.

Features / Technical specifications

• Model: MEDIKA 1500 ECT-F PLUS
• Product code shown on sheet: Cod. MED1503
• Operating temperature: +2 / +15 °C
• Gross / net capacity: 1500 L / 1355 L
• External dimensions (WxDxH): 144 x 83 x 207 cm
• Internal dimensions (WxDxH): 130 x 67 x 150 cm
• Insulation: polyurethane 43 kg/m3, 70 mm thickness, CFC-free
• Doors: tempered anti-condensation low-emissivity glass, anodised aluminium profiles, automatic closing, 90° stay
• Lighting: full-height LED
• Controller: ECT-F PLUS, 0.1 °C resolution, 16-char LCD, 48h alarm backup battery, event and min/max memory
• Refrigerant: R290
• Consumption: 2.5 kWh/24h
• Power absorbed: 0.4 kW; Current: 1.8 A; Inrush current: 6 A
• Noise: <55 dBA
• Heat emission EN12900: 125 W
• Accessory capacity: max shelves 14, drawers 28, baskets 14
