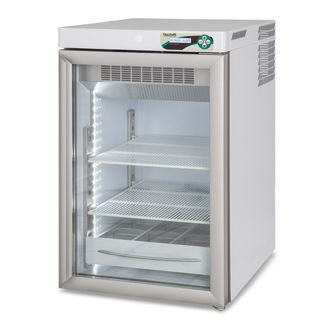

Pharmacy refrigerator MEDIKA 140 ECT-F PLUS

1-doorwith glass doorwith forced air cooling

Overview
Small undercounter medical refrigerator for storage of drugs and vaccines. Positive temperature range suitable for pharmacies, hospital wards, clinics and laboratories. MEDIKA® series combines a compact footprint with adjustable internal layout to meet pharmaceutical storage standards and daily operational needs.

Door and access features
The door is tempered triple-layer anti-fog low-emissivity glass mounted in anodized aluminium profiles. Full-length ergonomic handle, magnetic gasket on all four sides, automatic lock with return spring and door stop at 90°. Reversible opening side for flexible installation.

Structure and refrigeration

• Inner dimensions: 44 x 51.6 x 56 cm
• Nominal capacity: 140 L; Net capacity: 128 L
• PUF insulation injected at high density (43 kg/m3), 40 mm thickness, CFC-free
• Monocoque structure with plasticized atoxic white steel interior/exterior or inner 18/10 AISI 304 stainless steel; rounded inner corners
• Professional ventilated refrigeration with adaptive automatic defrost and condensate evaporation
• Full-length interior LED lighting; 4 adjustable feet H = 1.5 cm for stability

Controller (ECT-F PLUS)
Microprocessor controller with 16-character backlit alphanumeric LCD (customizable in 5 languages). Display resolution 0.1°C; accuracy ±0.3°C. Four membrane keys, configurable display modes, battery backup for power-failure alarm up to 48 hours. Min/max temperature recording, event log, potential-free dry contact for remote alarm and keyboard/password protection for set-point and ON/OFF changes.

Key technical data

• Refrigerant: R290
• Energy consumption: 0.6 kWh/24h
• Power absorption: 0.14 kW / Current 0.9 A
• Inrush current: 2.5 A
• Noise level: <40 dBA
• Heat rejection (EN 12900): 20 W
• Max shelves: 3 (wire shelves 40 x 47 cm)
• Max drawers: 3; drawer dims with dividers: 10 x 45 x 7.5 cm; without dividers: 33 x 45 x 7.5 cm

Applications
Designed for pharmacies, hospital wards, physicians' offices, aesthetic medicine, dental and ophthalmology practices, laboratories and pharmaceutical production environments.

Accessories available on request

• Lock with key
• External terminal board with dry contacts for ECT-F PLUS
• Antifreezing safety device
• DIN 13277 conformity option (ECT-F PLUS)
• Temperature chart recorder
• Shelves and pull-out aluminium drawers with/without dividers for selected models
• Plexiglass front for drawers; wheels kit (2 with brakes) and undirectional rollers
• Internal power socket; access ports Ø 35 mm and Ø 15 mm with stopper
• Humidity sensor; PT100 probe (free contacts)
• Power supply options: 220V/1~/60Hz or 115V/1~/60Hz; voltage stabiliser; wooden crate packaging

Note
Internal fittings and usable volumes can be customized to specific customer requirements.

Technical specifications

• Model: MEDIKA 140 ECT-F PLUS
• Brand: Fiocchetti
• Temperature range: +2 / +15 °C
• Nominal capacity: 140 L; Commercial capacity: 153 L; Net capacity: 128 L
• External dimensions (WxDxH): 52 x 63.5 x 83 cm
• Inner dimensions: 44 x 51.6 x 56 cm
• Insulation: PUF 43 kg/m3, thickness 40 mm
• Structure material: plasticized atoxic white steel or inner AISI 304 stainless steel
• Interior lighting: Full LED
• Refrigeration: professional ventilated; defrost: adaptive automatic
• Controller: ECT-F PLUS microprocessor, resolution 0.1°C, accuracy ±0.3°C, 4 membrane keys, battery backup up to 48 h, dry contact for remote alarm
• Refrigerant: R290
• Energy consumption: 0.6 kWh/24h
• Power/current: 0.14 kW / 0.9 A; Inrush: 2.5 A
• Noise level: <40 dBA
• Heat rejection EN 12900: 20 W
• Max shelves: 3; shelf dims: 40 x 47 cm
• Max drawers: 3; drawer dims with dividers: 10 x 45 x 7.5 cm; without dividers: 33 x 45 x 7.5 cm
• Door: Tempered triple-layer anti-fog low-emissivity glass, reversible opening, magnetic gasket, automatic lock
• Feet: 4, H = 1.5 cm
