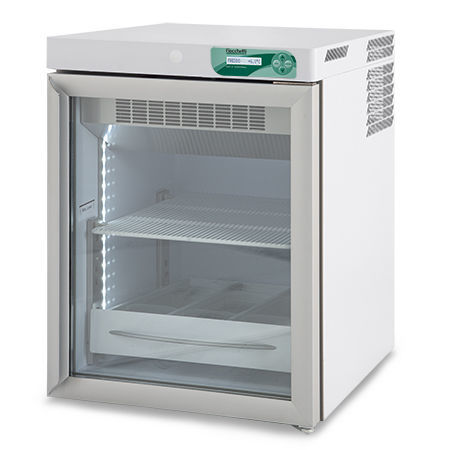

Pharmacy refrigerator MEDIKA 100 ECT-F

1-doorwith glass doorwith forced air cooling

Overview
Small undercounter refrigerator designed for safe storage of drugs and vaccines in pharmacies, clinics, hospitals and laboratories. Part of the MEDIKA® series with configurable compartments and a controller compliant with international standards for medical storage.

Design and doors
Tempered safety glass door per IEC 61010-1 with anti-fog and low-emissivity coating; anodized aluminium profiles; full-length ergonomic handle; magnetic gasket on four sides; automatic return lock and door stop at 90°. Reversible opening.

Features

• Dedicated undercounter refrigerator for medicines and vaccines
• Glass door, anti-fog, low-emissivity tempered glass
• Monocoque structure in plasticized atoxic white steel (option: inner AISI 304 stainless steel)
• Rounded inner corners and reinforced inner bottom
• 4 feet H=1.5 cm for stability
• Full‑height internal LED lighting
• Professional forced‑air refrigeration
• Automatic adaptive defrost with condensate vaporization

Controller (ECT-F microprocessor)
Temperature display and setting with 0.1 °C resolution and ±0.3 °C accuracy. Backlit 16‑character alphanumeric LCD customizable in 5 languages. 4 membrane keys; configurable display modes and user password to protect power and set‑point changes. Three temperature alarm types and 12‑event log.

Capacity & dimensions (high-level)

• Nominal capacity: 100 L
• Net capacity: 96 L
• Rated capacity shown: 126 L
• Internal (WxDxH): 44 x 51.6 x 42.1 cm
• External (WxDxH): 52 x 63.5 x 71 cm

Technical data

• Insulation: PUF injected at high density (43 kg/m3), CFC‑free, water‑based injection
• Insulation thickness: 40 mm
• Refrigerant: R290
• Energy consumption: 0.5 kWh/24h
• Power absorption / current: 0.14 kW / 0.9 A
• Inrush current: 2.5 A
• Noise level: <40 dBA
• Heat rejection (EN 12900): 20 W
• Max shelves: 2 (wire shelf 40 x 47 cm)
• Max drawers: 3 (with dividers: 10 x 45 x 7.5 cm each compartment; without dividers: 33 x 45 x 7.5 cm)

Additional product identifiers

• Code: MED0101
• Series / Controller family: MEDIKA - ECT-F

Accessories available on request

• Lock with key
• DMLP DIGITAL MONITOR
• Shelf for models 100-140-280-300
• Pull-out aluminium drawer with dividers for models 100-140-280
• Pull-out aluminium drawer without dividers for models 100-140-280
• Plexiglass front for drawers
• Wheels kit (2 with brakes) for mod.100-140-280
• Undirectional rollers
• Internal power socket
• Access port mm 35 with stopper
• Port hole mm 15
• Humidity sensor
• PT100 probe (free contacts)
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Wooden crate packaging

Notes
Glass door is designed to safety standards; internal fittings and controller configuration (alarms, password) are customizable to meet specific medical storage protocols.

Technical specifications

• Model: MEDIKA 100 ECT-F
• Brand: Fiocchetti
• Commercial code: MED0101
• Temperature range: +2 / +15 °C
• Capacity (product stat): 126 L; nominal 100 L; net 96 L
• External dimensions (WxDxH): 52 x 63.5 x 71 cm
• Internal dimensions (WxDxH): 44 x 51.6 x 42.1 cm
• Insulation: PUF 43 kg/m3, thickness 40 mm
• Structure: monocoque, plasticized atoxic white steel (option: inner AISI 304 stainless steel)
• Door: tempered glass, anti-fog, low emissivity, anodized aluminium profiles, reversible opening, magnetic gasket, automatic lock
• Refrigerant: R290
• Energy consumption: 0.5 kWh/24h
• Controller: ECT-F microprocessor, display res. 0.1 °C, accuracy ±0.3 °C, alarms and event log
