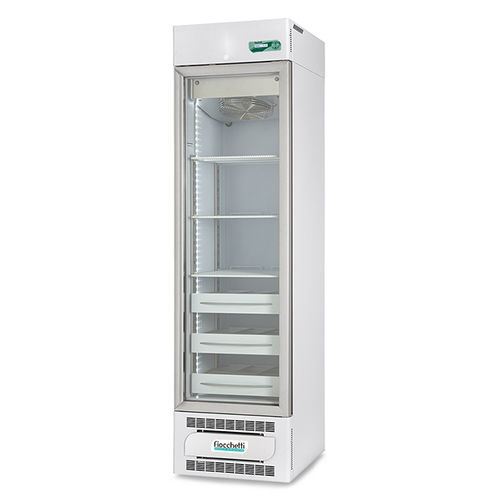

Pharmacy refrigerator MEDIKA 300 ECT-F

uprighton casters1-door

Overview
Mid-size refrigerator for medicines and vaccines with a 52 cm external width, glazed door and positive temperature range, suitable for pharmacies, laboratory areas, hospitals and private clinics.

Series and intended use
The MEDIKA series refrigerators feature a clean, functional design with a glass door and adjustable compartments to optimise storage of clinical material. They are designed for pharmacies, hospital wards, medical, dental and ophthalmic offices, aesthetic clinics, laboratories and the pharmaceutical industry. Conform to international standards and available in various capacities and internal configurations.

Door and closing
The door is made of tempered safety glass compliant with IEC 61010-1, anti-fog and low-emissivity glass for improved thermal performance with anodised aluminium profiles. Full-length ergonomic handle. Magnetic gasket on all four sides, automatic return spring closing with 90° door stop and reversible opening.

Key features

• Temperature range: +2 / +15°C
• Net capacity: 265 L (9.4 cu ft) - nominal capacity: 300 L (10.6 cu ft)
• External dimensions (WxDxH): 52 x 66 x 196 cm
• Electronics type: ECT-F

Construction and refrigeration

• Internal dimensions: 44 x 48.5 x 140 cm
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water-blown ecological injection
• Insulation thickness: 70 mm (rear) / 40 mm (sides)
• Structure: single-piece body in white coated non-toxic steel inside/outside with certified antibacterial treatment or internal AISI 304 18/10 stainless steel; rounded corners and sump base
• Handling: 4 unidirectional rollers included and 2 front feet for stability
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air ventilation
• Defrost type: automatic adaptive with condensation water evaporation

ECT-F electronic controller
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C. 16-character backlit alphanumeric LCD, configurable in 5 languages. 4-key membrane keypad with option to set a custom password to protect power on/off and setpoint changes. Alarms: multiple temperature alarms; event log up to 12 events.

Accessories available on request

• Lock with key
• Shelf for models 100-140-280-300
• Aluminium sliding drawer with dividers for models 600 2T - 300
• Aluminium sliding drawer without dividers for models 600 2T - 300
• Plexiglass front riser for drawer
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with volt-free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Cage packaging

Technical characteristics / specifications

• Product code: MED0301
• Refrigerant gas: R290
• Consumption: 1.2 kWh/24h
• Power absorption / Current: kW 0.19 / A 1.3
• Starting current: A 3
• Noise: <50 dBA
• Heat dissipation (EN 12900): W 30
• Maximum number of racks: 6
• Rack dimensions: 40 x 47 cm
• Maximum number of drawers: 12
• Internal drawer size with dividers (LxDxH) (x n.spaces): 9.8 x 40 x 7.5 cm (3)
• Internal drawer size without dividers (LxDxH): 33 x 40 x 7.5 cm
