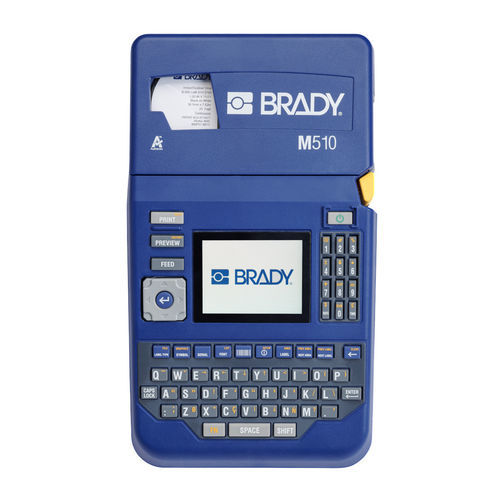

Laboratory labeler M510-KIT-UK-BWS

electricbarcode labelbarcode

Product overview
The M510 portable thermal transfer label printer kit is designed for professional use in labs, field work and industrial facilities. The kit ships with a hard case, rechargeable Li‑ion battery and a licence for a Brady® Workstation suite to create product, wire, safety or lab identification.

Featured benefits

• Edge-to-edge printing up to 38.10 mm for larger, clear labels
• Print speed up to 38.10 mm/s to increase throughput
• Compatible with 250+ drop-in cartridges and 26+ high-performance materials
• Input via QWERTY keypad, separate numeric keypad or PC for flexible data entry
• Backlit full-colour LCD graphics display for operation in low light
• Durable design rated to 1.2 m drop resistance
• High-capacity Li‑ion battery (2700 mAh) for extended runtime: up to 4,400 labels per charge (kit configuration dependent)

Key features

• Media: Continuous and die-cut labels
• Application examples: asset tracking, barcode labelling, circuit board and component marking, wire and cable identification, electrical and data/telecom labelling, facility and safety identification, laboratory labelling, inventory/inspection and 5S marking
• Colour capability: monocolour
• Max. label width: 38.10 mm; max. liner width: 45.72 mm; max. print width: 36.58 mm
• Print technology: Thermal transfer; resolution: 300 dpi; print speed: 38.10 mm/s
• Stand-alone and peripheral printing modes; PC connectivity via USB
• Internal memory: 512 MB RAM, 256 MB Flash
• Built-in symbols: 480; common barcode symbologies including Code 128, Code 39, EAN, UPC, Data Matrix, QR code

Includes
One M510 printer in hard case, rechargeable Li‑ion battery pack (2700 mAh, shipped in box), AC adapter, B-595 vinyl label cartridge, Quick Start Guide, magnet, utility hook, USB cable, Brady® Workstation licence (one suite) and USB flash drive with driver and user manual.

Warranty
2 years

Product overviews & guides (selected)

• Mobile Printer Selection Guide
• M510 Quick Start Guide
• M510 User Manual
• Safety Data Sheet and UN38.3 test summary for the Li‑ion battery
• REACH / safe use instructions

Multimedia

• Embedded product overview video: M510 Label Printer Overview

Materials & compatibility
Supports 250+ standard parts and a wide range of materials including BradyGrip® Polyester, FreezerBondz™ Polyester, heat-shrink polyolefin, metallised polyester, nylon cloth, polyethylene tag, polypropylene, reflective tape, repositionable vinyl, self-laminating polyester/vinyl, StainerBondz™ Polyester, tamper-resistant vinyl and water-dissolvable paper. Compatible media series: M4-, M4C-, M5-, M5C-.

Notes
Edge-to-edge printing and the full-colour backlit LCD enable larger, clearer labels and easier operation in low light. Product intended for professional/commercial use; ships with one Brady® Workstation suite licence.

Technical specifications (overview)

• Brand: Brady®
• Model: M510
• Article number: 322728
• Order reference / part number: M510-KIT-UK-BWS
• Package quantity: 1 kit
• Country of origin: Malaysia
• Dimensions (W x H x D): 146.05 mm x 95.25 mm x 254.00 mm
• Weight: 1.38 kg
• Display size: 71.12 mm colour LCD (backlit)
• Max. label width: 38.10 mm; max. print width: 36.58 mm; max. print length: 99.06 cm
• Print technology: Thermal transfer; resolution: 300 dpi; print speed: 38.10 mm/s
• Battery: Rechargeable Li‑ion 2700 mAh (included in kit); recharge time: 4 hours; auto shut-off: 10 minutes (user configurable)
• Operating temperature: 4°C - 43°C; storage: -18°C - 43°C
• Operating humidity: 20% - 90% non-condensing
• Durability: resistant to 1.2 m drops
• Connectivity: USB (PC); stand-alone or peripheral modes
• Memory: 512 MB RAM, 256 MB Flash
• Included consumable example: B-595 vinyl cartridge
• Warranty: 2 years
• Certifications: CE, FCC, UKCA; RoHS compliant (2011/65/EU with exemptions); REACH SVHC present (see data sheet)
