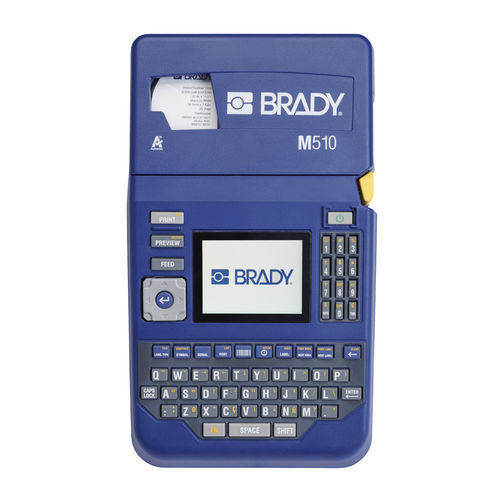

Thermal transfer label applicator printer M510-KIT-UK-BWS

multipurposemonochromeportable

Product overview
The M510 portable label printer kit delivers reliable, high-volume monochrome labels for labs, field service, facilities and industrial marking applications. Designed for standalone use or PC operation, the kit includes a Brady Workstation Suite license for fast label design and standardized outputs.

Included

• M510 Portable Label Printer Kit (UK) — part number M510-KIT-UK-BWS
• Brady Workstation Suite license

Key features

• Maximum print width: 38.10 mm; edge-to-edge printing with multiple text sizes
• Printing speed up to 38.10 mm/s for high productivity
• Supports 250+ drop-in cartridges and 26+ high-performance materials for diverse applications
• Input options: built-in QWERTY keyboard, numeric keypad or PC
• Color backlit graphical LCD to facilitate work in low-light environments
• Durable design: drop-tested to 1.2 m
• High-capacity Li‑ion battery (kit) capable of printing up to approximately 4,400 labels per charge
• USB connectivity and stand-alone or PC operation

Technical specifications (summary)

• Brand: Brady
• Model: M510
• Part number: M510-KIT-UK-BWS
• Printing technology: Thermal transfer
• Resolution: 300 dpi
• Max print speed: 38.10 mm/s
• Max print width: 36.58 mm (max label width supported: 38.10 mm)
• Memory: 512 MB RAM, 256 MB flash
• Interfaces: USB; PC connection; QWERTY keyboard
• Battery: Li‑ion rechargeable (2700 mAh in kit)
• Dimensions (W×H×D): 146.05 × 95.25 × 254.00 mm
• Weight: 1.38 kg
• Operating temperature: 4°C – 43°C; humidity: 20%–90% (non‑condensing)
• Certifications: CE, FCC, UKCA; RoHS and REACH information in technical documentation

Materials & compatibility

• Supported materials: polyester (including BradyGrip® and FreezerBondz™), vinyl (including tamper-evident and repositionable), polypropylene, polyethylene tags, shrinkable polyolefin, nylon cloth, reflective tape, water-soluble paper and more
• Color options include standard Brady material colors (e.g., blue, grey)

Kit contents

• M510 printer in a hard case
• Rechargeable Li‑ion battery (if specified in kit), AC adapter and charger
• B-595 vinyl label cassette (consumable included)
• Quick start guide, magnet, multi-use hook, USB cable
• Brady Workstation Suite license and USB flash drive with drivers and user manual
• Warranty: 2 years

Compliance & safety
Full safety instructions and conformity documentation (UN38.3, CE, FCC, UKCA) and RoHS/REACH details are provided in the technical documentation. Follow supplied guidance for battery transport and disposal.
