Laboratory labeler I7100-600-UK-BWS

electricautomaticbarcode label

Overview

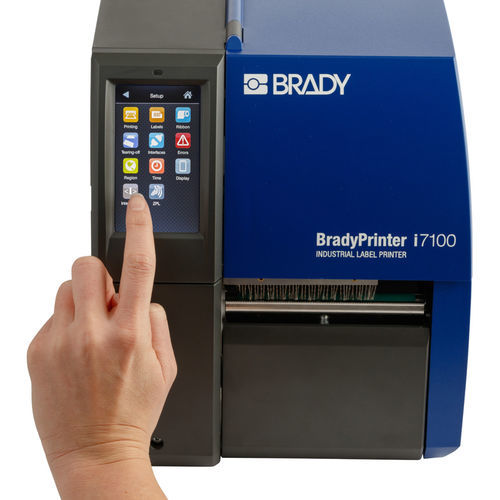

The BradyPrinter i7100 is an industrial thermal transfer desktop label printer designed for businesses that need high-volume, precise printing across a wide range of media. Typical applications include aerospace, defense, mass transit, electronics, automotive, logistics, electrical, datacom/telecom and laboratory identification. It prints accurately on heat-shrink sleeves, labels, ribbons, cable markers and other specialized materials.

Key benefits

• Print confidently on a broad range of materials, including difficult-to-print substrates.
• Peel-off configuration allows automatic label stripping from liner.
• Ultra-precise printing on labels as small as 4 mm.
• Engineered for continuous high-volume use—thousands of labels per day.
• Intuitive touchscreen interface for fast adjustment of print settings.
• Delivered with a license for the Brady Workstation suite of your choice (Product & Wire Identification, Safety & Facility Identification or Laboratory Identification) to simplify label and sign creation.

Main features (excerpt)

• Applications: barcode labeling, PCB/component labeling, equipment and asset marking, wire and cable identification, electrical labeling, laboratory labeling, inspection & inventory labeling, datacom/telecom identification, general identification.
• Connectivity: USB, Ethernet, Serial, I/O, Bluetooth (optional), Wi‑Fi (optional).
• Color capability: Monochrome.
• Resolution: 600 dpi.
• Supported label width: Min. 4.00 mm – Max. 109.98 mm (max print width 105.66 mm).
• Max print length: 249.00 mm.
• Recommended daily use: 7000 labels/day.

Specifications (summary)
Minimum order quantity: 1
Site item number: 322873
Order reference: i7100-600-EU-BWS
Quantity per package: 1 Piece / Box
Brand: Brady®
Commercial name: BradyPrinter i7100
Country of origin: Germany

Dimensions
Dimensions (W x H x D): 251.46 mm x 289.56 mm x 459.74 mm
Weight: 10 kg
Screen size: 52.00 x 92.00 mm
Minimum label height: 6.00 mm (standard), 4.00 mm (with specific peel-off version)

Supported materials
Diesel‑resistant polyolefin heatshrink sleeves; high‑temperature PVDF heatshrink; paper, repositionable paper, direct thermal paper; polyester (incl. tamper-evident, metallized, FreezerBondz™, laminated); polyethylene foam laminated polyester; polyimide; polyolefin; polypropylene; nylon fabric; vinyl (incl. tamper-evident, metallized) and other specialized media.

Product features (selection)
Battery type: Button cell (installed)
Media sensors: Gap, Reflective, Notch, Black mark
Available languages (UI): German, English, Arabic (Egypt), Bulgarian, Croatian, Danish, Spanish, Finnish, French, Greek, Hungarian, Italian, Lithuanian, Macedonian, Dutch, Norwegian, Persian (Farsi), Polish, Portuguese, Romanian, Russian, Serbian, Slovene, Swedish, Czech, Turkish
Calibration: Manual
Hardware options: I/O interface accessory, 101.60 mm media adapter, extended peel bar, peel sensor, WLAN USB stick with antenna, cleaning swabs, multiple core adapters, rewinder, auto cutter / catcher, perforating cutter for pre-cut media, peel-off kit.
OS compatibility: Windows® 7 / 8 / 10 / 11, Windows® Server 2012 / 2012 R2 / 2016
Operating temperature: 0°C - 40°C
Operating humidity: 10% - 85% RH (non‑condensing)
Power: AC adapter 100 - 240 V @ 50 - 60 Hz

Printing specifications (summary)
Technology: Thermal transfer, Direct thermal
Print speed: 150 mm/s
Display resolution: 480 x 272 pixels
Max media width: 114.05 mm
Max roll outer diameter: 204.98 mm
Max label thickness: 1.00 mm
Duty cycle: 24/7 capable
Programming & integration: Built‑in ZPL emulator, SAP integration, JScript, database connector, native abc compiler
Supported symbologies: Codabar (NW-7), Code 128, Code 39, Code 93, GS1-128, EAN/UPC, GS1 DataBar, DataMatrix, QR Code, PDF417, Aztec, MaxiCode, MicroPDF417, Codablock F and other common 1D/2D formats.

What's included
Printer in cardboard box with EU power cord, 2 empty ribbon cores, USB cable, product CD with driver, multilingual user manual, English configuration guide, printed quick start (EN) and a license for one Brady Workstation suite.
Warranty: 2 years

Compliance and certifications
UNSPSC: 45101519
RoHS: Compliant with RoHS Directive 2011/65/EU
REACH SVHC: No SVHCs present (candidate list as of 23 January 2024)
Approvals: CCC, CE, FCC class A, FCC class CB, UL

Characteristics / technical specifications

• Printing technology: Thermal transfer / Direct thermal
• Print resolution: 600 dpi
• Max print speed: 150 mm/s
• Max print width: 105.66 mm
• Max print length: 249.00 mm
• Max roll outer diameter: 204.98 mm
• Max label thickness: 1.00 mm
• Screen size: 52.00 x 92.00 mm (color LCD)
• Memory: 256 MB RAM, 50 MB IFFS flash, SD card up to 512 GB
• Connectivity: USB, Ethernet, Serial, I/O, Bluetooth (opt.), Wi‑Fi (opt.)
• Supported OS: Windows® 7/8/10/11, Windows Server 2012/2012 R2/2016
• Weight: 10 kg
• Dimensions (W x H x D): 251.46 x 289.56 x 459.74 mm
• Recommended usage: up to approx. 7000 labels/day
• Country of origin: Germany
• Included: EU power cord, 2 empty ribbon cores, USB cable, driver CD, manuals, Brady Workstation license
