Direct thermal label applicator printer I6100-300-P-UK-BWS

thermal transferbarcode labellaboratory

Description
The Brady® i6100 label printer delivers high-accuracy, heavy-duty performance for mid-to-high volume industrial labelling tasks. It supports both direct thermal and thermal transfer printing and is configurable with a Peel & Present option and Brady Workstation software for fast production workflows.

Key benefits

• Wide material compatibility for applications from general identification to specialised labelling
• Peel configuration automatically separates labels from the liner for easy application
• High print speed (254 mm/s) suitable for up to 4,000 labels/day
• Sturdy aluminium chassis designed for industrial environments
• Intuitive colour LCD and keypad for quick configuration
• Includes Brady Workstation Design & Print Pro license

Key features

• Media: Continuous and die-cut labels
• Applications: Barcode, component/equipment, wire & cable, electrical, laboratory, inventory/inspection, telecom/datacom, general identification
• Colour capability: Monocolour
• Max label width: 114.00 mm (max print width 105.70 mm)
• Print technology: Direct Thermal, Thermal Transfer
• Recommended daily usage: 4,000 labels
• Resolution: 300 dpi
• Stand-alone printing: Stand-alone & peripheral

Key characteristics
Article Number: 324887
Order Reference: i6100-300-P-UK-BWS
Total Qty per Pack: 1 Piece(s) / Box
Minimum Order Quantity: 1
Brand: Brady®
Trade Name: i6100 Label Printer
Ribbon series: R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6400, R6600, R6700, R6800
Country of origin: Korea (the Republic of)

Dimensions
Width: 269.00 mm
Height: 324.00 mm
Depth: 490.00 mm
Weight: 13.98 kg
Core diameter: 76.20 mm
Display size: 88.90 mm
Minimum label height: 4.75 mm

Material characteristics
Supported materials: Direct thermal paper; FreezerBondz™ polyester; heat-shrink polyolefin; metallic and metallised polyester; non-metal polyester; polyester with overlaminate; nylon cloth; paper; polyester; polyimide; polyolefin; repositionable paper; self-laminating polyester/vinyl; StainerBondz™; static dissipative polyester; tamper-evident materials; vinyl; water-dissolvable paper; water-indicating laminates
Colour (housing): Blue, Grey

Product features
Battery: Internal non-removable lithium-manganese (shipped installed)
Battery weight: 3.200 (metric)
Media sensors: Black mark, gap sensor, head open, notch, reflective, ribbon end, see-through
Language support (UI): English, French, German, Spanish
Calibration: Manual
Connectivity: Ethernet, RS232, USB 2.0, USB Host
Custom labels: Yes
Cutter: Optional auto-cutter accessory available
Display: Colour LCD screen (88.9 mm)
Memory: 512 MB SDRAM, 512 MB Flash
Barcode symbologies: Extensive 1D/2D (Code 39, Code 128, EAN, UPC, GS1 DataBar, QR, Data Matrix, PDF417, Aztec, MaxiCode, MicroPDF417, Composite, etc.)
Operating humidity: 10% - 85% RH (non-condensing)
Operating temperature: 5°C - 40°C
Power: AC adaptor 100 - 240 V @ 50 - 60 Hz

Printing specifications
Print technology: Direct Thermal; Thermal Transfer
Print speed: 254 mm/s
Printing functions: Peel and Present (Peel & Present)
Resolution: 300 dpi
Max label width: 114.00 mm
Max liner width: 114.00 mm
Max print width: 105.70 mm
Max print length: 2.50 m
Max roll outer diameter: 203.00 mm
Max label thickness: 0.30 mm
Min label width: 4.00 mm
Recommended usage per day: 4000 labels
Programming language: Built-in ZPL emulator

Compatibility
Software compatibility: Brady Workstation; Windows-based drivers for third-party software
Supported B-numbers and media prefixes: extensive list (see product specifications)
Min label length: 4.75 mm

What's included

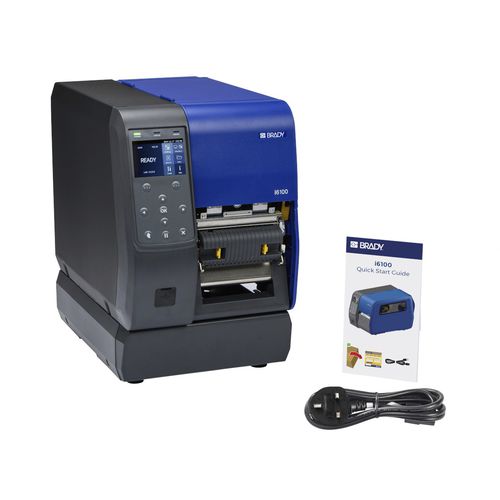

This i6100 ships in a cardboard box and includes a Brady Workstation Design & Print Pro software license, a quick-start guide and a UK power plug.

Technical specifications (summary)

• Model: i6100
• Resolution: 300 dpi
• Print speed: up to 254 mm/s (est. throughput up to 4,000 labels/day)
• Max print width: 105.70 mm
• Media compatibility: broad (paper, polyester, vinyl, metallised, heat-shrink, cloth, specialty materials)
• Connectivity: Ethernet, RS232, USB 2.0, USB Host
• Memory: 512 MB SDRAM, 512 MB Flash
• Dimensions: 269 x 324 x 490 mm
• Weight: 13.98 kg
• Included software: Brady Workstation Design & Print Pro (license)
• Warranty: 2 years
