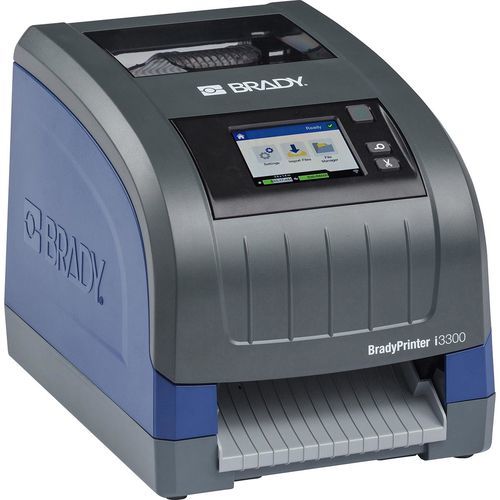

Thermal transfer label applicator printer BradyPrinter i3300

barcode labelfor bar code labelswireless

Overview
The BradyPrinter i3300 is a mid‑volume industrial thermal transfer label printer designed for facility‑wide identification tasks. It offers fast setup with snap‑in labels and ribbons, one‑label printing accuracy and Wi‑Fi connectivity for flexible data access.

Benefits

• Wi‑Fi connectivity enables easy data access from multiple sources
• Ideal for mid‑volume identification across facilities: wires, panels, safety and general facility labels
• Print Smart technology prints correctly on the first label, including sleeves and very small labels
• Drop‑in label rolls and ribbons snap into place for rapid changeovers (~20 seconds)
• Supports more than 825 parts and 70 material options for comprehensive identification needs
• Compatible with Brady Workstation Software Suites to simplify label design and management

Key features

• Continuous vs Die Cut Labels: Continuous, Custom, Die‑cut
• Applications: Asset tracking; Barcode labelling; Circuit board labelling; Component and equipment labelling; Data and telecommunications labelling; Electrical labelling; Facility identification; General identification; Hazard communication identification; Inventory and inspection labelling; Laboratory labelling; Lean and 5S labelling; Pipe and valve marking; Warehouse marking; Wire and cable labelling
• Colour Capability: Monocolour
• Max. Label Width: 107.95 mm
• Print Technology: Thermal Transfer
• Recommended Usage per Day: 3000 labels (throughput estimate)
• Resolution: 300 dpi
• Stand Alone Printing: Peripheral (requires connection to PC / touchscreen for operation)

Key characteristics (table)
Article Number: 149556
Order Reference: i3300-300-C-UK-WF
Total Qty per Pack: 1 Piece(s) / Pack
Minimum Order Quantity: 1
Brand: Brady®
Trade Name: BradyPrinter i3300
Ribbon Series: B30 Series
Additional information: For Wire ID and small OEM labels: 1000 labels per day
For Safety labels: 600 (50.80mm x 101.60mm) labels per day, 300 larger labels per day
Operational Hours: 8 hours / 5 days
* throughput indication not a guarantee of performance; depends on label size, text printed and other factors

Technical specifications

• Model: BradyPrinter i3300
• Part number (page): I3300-300-C-UK-WF
• Print technology: Thermal Transfer
• Resolution: 300 dpi
• Print speed: 101.60 mm/s
• Max. print width: 101.98 mm
• Max. label width / liner width: 107.95 mm
• Max. print length: 1524.00 mm
• Max. roll outer diameter: 109.00 mm
• Maximum label thickness: 1.77 mm
• Min. label height: 6.35 mm
• Min. label length: 6.35 mm
• Text sizes: 4 - 250 pt
• Font styles: Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, Verdana
• Colour capability: Monocolour
• Display type: Colour LCD Touchscreen (display resolution 320 x 240 pixels; display size 88.90 mm)
• Internal memory: 512 MB RAM, 195 MB IFFS Flash
• Connectivity options: Ethernet, USB, USB 2.0, Wi‑Fi
• Interface type: PC, Touchscreen
• Hardware options / accessories: Cleaning kit, Cleaning swabs, Cutter cleaning tool, Media wipers, Power cord, USB cable
• Cutter type: Auto Cutter (cut at end of print jobs, cut between labels, full cut)
• Stand-alone printing: Peripheral (requires connection to computer or app)
• Power source: AC Adaptor; Power supply voltage: 100 - 240 V @ 50 - 60 Hz
• Operating temperature: 10°C - 40°C
• Operating humidity: 10% - 85% RH (non-condensing)
• Storage temperature: -20°C - 50°C; Storage humidity: 15% - 90% RH (non-condensing)
• Units supported: Inches, Millimetres, Points
• Max. label width reported (page): 107.95 mm; Max. print width reported: 101.98 mm
• Minimum label width reported: 6.35 mm
• Materials supported: FreezerBondz™ Polyester; Heat-shrink Polyolefin; High Temperature Heat-shrink PVDF Sleeve; Magnetic Polyester; Metal-detectable Polyester; Metallic; Non-metal Polyester; Metallised Polyester (with or without polyester overlaminate); Nylon Cloth; Paper; Phosphorescent Polyester; Polyester; Polyimide; Polyolefin; Polypropylene; Polyvinylfluoride; Reflective Tape; Self-laminating Polyester; Self-laminating Vinyl; StainerBondz™ Polyester; Static Dissipative Polyester; Tamper-evident Metallised Polyester; Vinyl; Vinyl Cloth
• Minimum label height: 6.35 mm
• Maximum label thickness: 1.77 mm
• Maximum liner width: 107.95 mm
• Number of stock parts: 800+ standard parts (page)
• On screen indicators: Data reception, Error messaging, Ethernet status, Ribbon and label part number recognition, Ribbon remaining, Supply remaining, WiFi
• Barcode symbologies supported (examples): Code 128, Code 39, Code 93, EAN-13, EAN-8, UPC-A, Aztec, Data Matrix, MicroPDF417, PDF417, QR code
• Programming language / emulation: Brady Custom ZPL Emulation Solution; Brady Script Emulator for ZPL (accessory required)
• Smart Cell: Yes
• Includes (box contents per page): power cord, Brady Workstation Basic Suite, USB cable, product CD (manual), cleaning kit and printed quick start guide
• Warranty: 1 year
• Dimensions (W x H x D): 228.60 mm x 241.30 mm x 304.80 mm
• Weight: 5.22 kg
• Recommended usage per day (estimate): 3000
• Country of origin (page): Malaysia
• Compliance / approvals (page): CE, cUL, EAC, KCC, RCM, RoHS, UL
• REACH / RoHS notes (page): RoHS: Compliant with 2011/65/EU with exemptions; REACH: Part contains an SVHC; REACH candidate list date on page: 25 June 2025
