Direct thermal printer I7100-600P-UK-BWS

thermal transferfor bar code labelsfor labels

Description

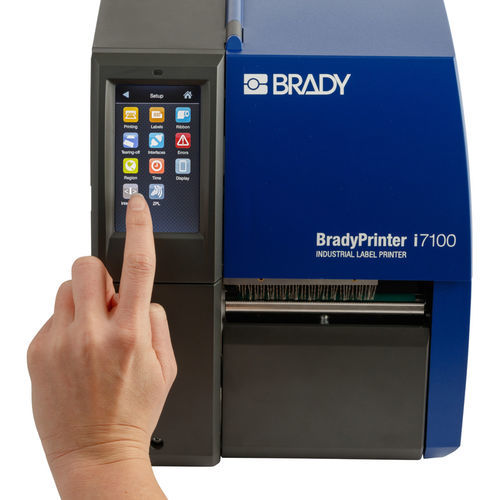

The BradyPrinter i7100 is an industrial desktop thermal transfer printer designed for high-volume, multi-media printing in sectors such as aerospace, defence, public transport, electronics, automotive, logistics, electrical, datacom/telecom and laboratories. It produces precise prints on sleeves, labels, tapes and cable markers, including very small labels down to 4 mm.

Key advantages

• Print reliably on a wide range of materials, including hard-to-print media
• Peel configuration automatically removes labels from the liner for immediate application
• High-precision printing on labels as small as 4 mm
• Engineered for thousands of labels per day
• Easy-to-use touchscreen to quickly adjust print settings
• Supplied with a license for one Brady Workstation suite to simplify label and panel design

Main features

• Applications: barcode labelling, PCB/components, asset and equipment marking, wires and cables, electrical, laboratory, inspection and inventory, datacom/telecom, general identification
• Connectivity options: Bluetooth (optional), Serial, Ethernet, I/O, USB, Wi‑Fi (optional)
• Colour: monochrome
• Max label width: 109.98 mm
• Min label width: 4.00 mm
• Max print length: 249.00 mm
• Print resolution: 600 dpi
• Recommended daily use: 7000 labels

Dimensions
251.46 mm (W) x 289.56 mm (H) x 459.74 mm (D)
Weight: 10 kg
Display size: 52.00 x 92.00 mm

Technical specifications

• Printing technology: thermal transfer and direct thermal
• Print speed: up to 150 mm/s
• Max print width: 105.66 mm
• Max roll outer diameter: 204.98 mm
• Max label thickness: 1.00 mm
• Max media liner width: 114.05 mm
• Minimum label height: 4–6 mm with peel sensor (4 mm printable)
• Display resolution: 480 x 272 pixels
• Memory: 256 MB RAM, 50 MB IFFS Flash, SD card up to 512 GB
• Interface languages on display: multiple languages including English, French, German, Spanish, Italian, Portuguese, Russian, Arabic, etc.
• Supported barcode symbologies: wide 1D/2D support (Code 128, Code 39, GS1-128, EAN/UPC, Data Matrix, QR, PDF417, Aztec, MaxiCode, MicroPDF417, GS1 DataMatrix, Codablock F, etc.)
• Supported media formats: continuous, die-cut, custom and bulk rolls
• Example supported materials: heat-shrink polyolefin sleeves, paper, removable paper, direct thermal paper, polyester (various types), polyimide, polypropylene, vinyl, nylon, PVDF, etc.
• Antistatic brush pre-installed for electrostatic dissipation
• Hardware options: I/O interface accessory, 101.60 mm media adapter, extended peel bar, peel sensor, USB WLAN key with antenna, different platen rollers, rewinder, auto-cutter, cutter with tray, perforating cutter, etc.
• Standalone/PC-free printing: standalone and peripheral modes available
• OS compatibility: Windows 7/8/10/11; Windows Server 2012/2012 R2/2016
• Power: AC adapter 100–240 V @ 50–60 Hz
• Battery: included (button cell installed)
• Operating temperature: 0°C – 40°C
• Operating humidity: 10% – 85% RH (non-condensing)
• Storage temperature: 0°C – 60°C
• Storage humidity: 20% – 85% RH (non-condensing)
• Packaging contents: printer with preinstalled peel module, EU power cable, 2 empty ribbon cores, USB cable, product CD (driver), multilingual manuals, configuration guide (English), printed manual (English), and license for one Brady Workstation suite
• Warranty: 2 years
• Compliance/certifications: RoHS, REACH (no SVHC), CCC, CE, FCC class A, UL (see documentation)
