Thermal transfer printer I5300-C-UK-BWS

direct thermalbarcode labelfor labels

Product overview
The BradyPrinter i5300 is an industrial thermal-transfer and direct-thermal label printer designed for high-mix, high-volume labeling. It combines fast printing, easy consumable changes and integrated software licensing to streamline production and identification workflows.

Key benefits

• Precision printing at 300 dpi (600 dpi option) for small text and detailed barcodes
• No manual calibration required — stable print quality without fine-tuning temperature or speed
• Consumable changeovers in ≈20 seconds; label width range 5.08–107.95 mm
• Pause/resume and protected print queue for secure job management
• Large 177.8 mm color touchscreen and integrated automatic cutter
• Durable metal chassis for industrial environments
• Includes a license for a Brady Workstation suite (product/cable, safety/building or lab identification options)

Main specifications (summary)

• Print technology: Thermal transfer and direct thermal
• Resolution: 300 dpi (600 dpi optional)
• Max print speed: up to 254 mm/s
• Max print width: 101.98 mm
• Supported label width: 5.08–107.95 mm
• Memory: 512 MB RAM, 195 MB IFFS Flash
• Interfaces: USB, USB host, Ethernet, touchscreen

Specifications
Minimum order quantity: 1
Item number: 322890
Order reference: i5300-C-EU-BWS
Country of origin: Malaysia
Recommended daily use: up to 5,000 labels/day
Warranty: 2 years

Dimensions & weight
Dimensions (W×H×D): 284.48 × 279.40 × 401.32 mm
Display size: 177.80 mm (color touchscreen)
Weight: 15.0 kg

Materials & compatibility

• Supports a wide range of materials including polyester (and metallized/laminated variants), polyimide, polyolefin (including heat-shrink), polyvinylidene fluoride heat-shrink sleeves, polypropylene, vinyl, thermal paper, reflective and magnetic materials, fabrics (nylon, vinyl) and specialty materials (FreezerBondz™, phosphorescent, antistatic)
• Compatible with Brady B30 ribbon series and multiple stock material families

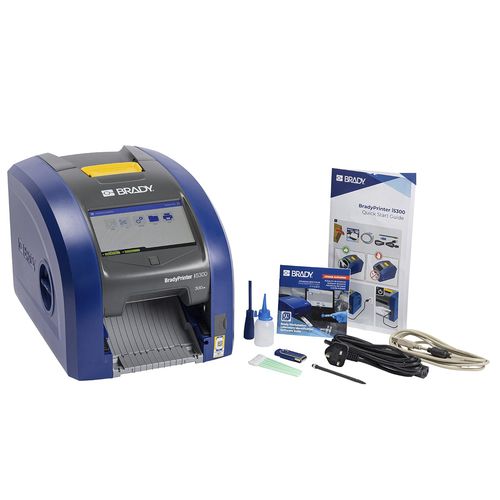

Included in the box

• BradyPrinter i5300 (specified model)
• License for one Brady Workstation software suite (chosen version)
• Power cable and USB cable
• Stylus
• Cleaning kit
• Quick start guide and USB drive with tutorial videos and Windows driver

Technical details

• Display resolution: 1024 × 800 (equivalent)
• Max roll outer diameter: 109.22 mm
• Min label width for printing: 5.08 mm (typical min print width 6.35 mm depending on configuration)
• Supported barcode symbologies: Code 128, Code 39, EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, Codabar, MSI, Code 93, Aztec, Data Matrix, PDF417, QR code
• Operating temperature: 10°C – 40°C; storage: -20°C – 50°C
• Power: AC adapter 100–240 V, 50–60 Hz; battery (button cell) installed
• Operating humidity: 10%–85% RH (non-condensing)

Compliance & certifications

• Approvals: CE, cULus, EAC, FCC, UKCA
• RoHS and REACH information available from manufacturer
