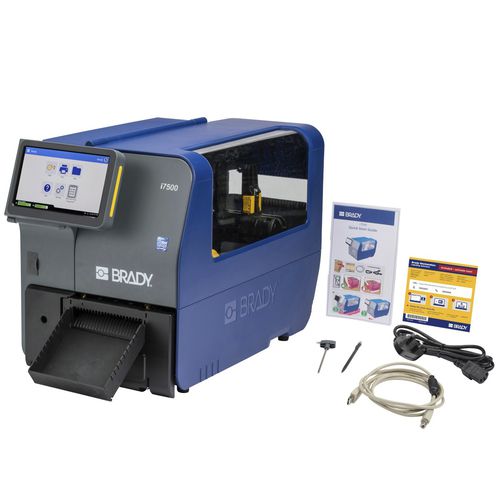

Direct thermal printer I7500-300-C-UK-BWS

thermal transferfor labelsbarcode label

Presentation
High-performance label printing on 76.2 mm cores with workflow features to minimise setup time and material waste. Change media in 40 seconds without manual adjustments, print tests or wasted labels. LabelSense(TM) enables communication between the printer, Brady i75 consumables and Brady software to automate settings and eliminate manual calibration and label waste.

Key benefits

• No need to set print speed, temperature, offsets, mode or sensor position — the i7500 configures these automatically without unnecessary print tests.
• No manual calibration or wasted blank labels — the i7500 detects label size and spacing and prints from the first label.
• i75 ribbons auto-centre and the ink orientation is validated; the i7500 alerts if ribbon type does not match installed media.
• Over 4,000 i75 label and ribbon part numbers in more than 80 materials support smart mode.
• Rolls with 76.2 mm core and ribbons with 25.4 mm core can also be used in manual mode, where the operator configures print parameters, sensor tuning and ribbon/media combinations.
• The included Brady Workstation software suite detects installed media for one‑click, driverless setup and fast label file creation; a Windows driver is available for third‑party applications.
• 300 dpi print resolution is supplied for general daily printing; an optional 600 dpi printhead can be fitted quickly without calibration or firmware update.
• The automatic cutter configuration includes a heavy‑duty guillotine cutter for full cuts after a job, after each row, after a defined count or no cut.

Main features

• Applications: Barcode labelling, PCB labelling, Wire & cable labelling, Solar panel labelling, Tamper-evident labelling, Electrical labelling, Laboratory labelling, Inspection & inventory identification, Telecom/datacom, General identification, Warehouse marking, Asset tracking.
• Connectivity options: Bluetooth, Ethernet, USB, Wi‑Fi.
• Colour capability: Monochrome.
• Maximum label width: 107.95 mm.
• Minimum label width: 4.01 mm.
• Maximum print length: 1.524 m.
• Resolution: 300 dpi (300 dpi printhead supplied; 600 dpi optional).
• Recommended daily volume: 7,000 (estimate).

Specifications / technical details

• Order reference (displayed SKU): I7500-300-C-EU-BWS
• Product number: 323188
• Minimum order quantity: 1
• Quantity per package: 1 Piece / Box
• Brand: Brady®
• Commercial name / model: i7500
• Printing technology: Thermal transfer, Direct thermal
• Print speed: up to 304.80 mm/s
• Maximum print width: 105.66 mm
• Maximum media width: 114.05 mm
• Minimum label width: 4.01 mm (min) / Minimum label height indicated 3.18 mm
• Maximum print length: 1.524 m
• Maximum roll outer diameter: 215.90 mm
• Maximum label thickness: 1.956 mm
• Dimensions (W x H x D): 292.10 mm x 370.84 mm x 530.86 mm
• Weight: 18.14 kg
• Core support diameter: 76.20 mm
• Screen size: 177.80 mm (colour touchscreen LCD)
• Display resolution: 1024 x 600 pixels
• Memory: 512 MB RAM, 195 MB IFFS Flash
• Screen indicators: job preview, Bluetooth/Ethernet/Wi‑Fi status, consumable identification, remaining quantity, error messages, etc.
• Supported barcode symbologies: Code 39, Code 128, GS1-128, EAN, UPC, Aztec, Data Matrix, GS1 DataMatrix, MicroPDF417, PDF417, QR code, and others via software.
• Hardware options: I/O accessory, cleaning swabs, narrow platen rollers, 300 dpi or 600 dpi printheads, Wi‑Fi upgrade modules, automatic cutter (supplied).
• Power: mains; Voltage: 100 - 240 V @ 50 - 60 Hz
• Operating temperature: 10°C - 40°C
• Operating humidity range: 10% - 85% RH (non‑condensing)
• Device languages: German, English, French, Spanish, Italian, Dutch, Polish, Russian, Japanese, Chinese, Korean and others.
• Country of origin: Malaysia
• Warranty: 2 years
• Compatible / stock references: More than 4,500 standard references (i75 consumables compatible in smart mode)
