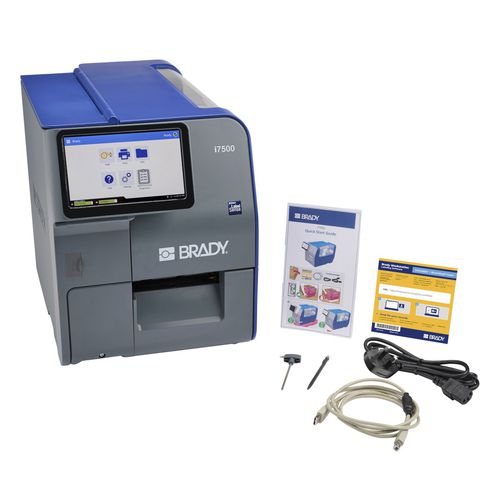

Thermal transfer label applicator printer I7500-300-UK

direct thermalbarcode labellaboratory

Product Overview
High-performance 76.2 mm core industrial label printer for thermal transfer and direct thermal applications. The Brady® i7500 automates material detection with LabelSense™ technology, enables rapid part changeovers and supports 300 dpi standard or field-exchangeable 600 dpi printheads for high-resolution needs.

Main Benefits

• Automatic print speed, heat and sensor configuration—reducing setup time and wasted labels.
• Automatic part-size detection and first-label printing without manual calibration.
• Smart ribbon pairing: i75-Series ribbons auto-center and warn on ink/material mismatch.
• Supports 4,000+ stock i75-Series parts in full smart mode; also accepts manual rolls and ribbons for custom setups.
• Brady WorkStation Basic (included) provides driverless 1-click setup and label creation; standard drivers available for third-party software.
• 300 dpi standard; quick field-exchange to 600 dpi with no firmware update required.

Key Features

• Application(s): Asset tracking, barcode labelling, circuit board labelling, data & telecommunications, electrical, inventory & inspection, laboratory, solar panel, tamper-indicating, warehouse marking, wire & cable labelling.
• Colour Capability: Monocolour.
• Max. Label Width: 107.95 mm (Max. print width 105.66 mm).
• Max. Print Length: 1.524 m.
• Resolution: 300 dpi (field-exchangeable to 600 dpi).
• Connectivity: Bluetooth, Ethernet, USB, Wi‑Fi.

Key Characteristics (table)

• Minimum Order Quantity: 1
• Article Number: 323175
• Order Reference: i7500-300-UK
• Total Qty per Pack: 1 piece / box
• Application(s): Asset tracking, barcode labelling, circuit board labelling, data & telecommunications labelling, electrical labelling, general identification, inventory & inspection labelling, laboratory labelling, solar panel labelling, tamper indicating labels, warehouse marking, wire & cable labelling
• Quantity: 1
• Brand: Brady®
• Trade Name: i7500
• Ribbon Series: i75-R4300, i75-R4400-BL, i75-R4400-GR, i75-R4400-RD, i75-R4400-WT, i75-R4500-BL, i75-R4500-RD, i75-R4500-SV, i75-R4900, i75-R6000, i75-R6200, i75-R6300, i75-R6400, i75-R6600, i75-R6700, i75-R6800
• Country of Origin: Malaysia

Dimensions (table)

• Size - Width: 292.10 mm
• Size - Height: 370.84 mm
• Size - Depth: 530.86 mm
• Weight: 18.14 kg
• Core - Diameter: 76.20 mm
• Display Size: 177.80 mm
• Minimum Label Height: 3.18 mm
• Dimensions summary: 292.10 mm (W) x 370.84 mm (H) x 530.86 mm (D)

Material Characteristics (table)

• Materials Supported: Polyester, vinyl, heat-shrink sleeves, metallised and tamper-evident materials, nylon cloth, paper, polyimide, polypropylene, polyethylene foam laminate, repositionable paper, self-laminating materials and others (80+ Brady materials).
• Colour: Blue, Grey

Product Features (table)

• Auto Shut Off: Yes
• Battery Type: Internal coin/button cell (not removable)
• Media Sensor: Black mark, Continuous, Gap sensor, Notch
• Language Support: Multiple languages including English, French, German, Spanish, Chinese, Japanese, Korean
• Calibration: Automated with i75-Series consumables
• Cutter Type: Tear bar standard; auto cutter options available
• Display Type: Colour LCD touchscreen (7")
• Hardware Options: Auto cutter, cleaning swabs, I/O interface accessory, narrow-width rollers, 300 dpi or 600 dpi printhead
• Memory: 512 MB RAM, 195 MB IFFS Flash

Printing Specifications (table)

• Print Technology: Direct Thermal and Thermal Transfer
• Print Speed: up to 304.80 mm/s
• Resolution: 300 dpi (field-exchangeable to 600 dpi)
• Display Resolution: 1024 x 600 pixels
• Max. Liner Width: 114.05 mm
• Max. Print Width: 105.66 mm
• Max. Print Length: 1.524 m
• Max. Roll Outer Diameter: 215.90 mm
• Maximum Label Thickness: 1.956 mm
• Barcode Symbologies: Code 39, Code 128, EAN, GS1-128, ITF-14, UPC, Aztec, Data Matrix, QR, PDF417 and more
• Programming Language: Built-in ZPL emulator

Compatibility & Software (table)

• Continuous vs Die Cut Labels: Bulk and custom
• Software Compatibility: Brady WorkStation, Express Labels Mobile App, SDK; Windows drivers for 3rd party software
• Compatible Media prefixes: 2FR-, 2HT-, 2HX-, 2LSZH-, 3FR-, 3HT-, 3PS-, APL-, DR-, DT-, FR-, HCM-, HSNX-, HT-, HX-, i75-, LSZH-, PS-, THT- series, etc.
• Min. Label Length: 3.18 mm

What’s Included

• Serrated tear bar (installed)
• T-20 wrench (177738)
• Power cord (UK plug)
• USB cable
• Brady WorkStation Basic software
• QuickStart Guide

Warranty

• 2 years warranty.

Compliance

• RoHS: Compliant with 2011/65/EU with exemptions
• REACH: Product contains an SVHC (see specifications)
• CE compliant. Patent pending.

Technical specifications

• Model: i7500
• Print resolution: 300 dpi (user-exchangeable 600 dpi)
• Max print width: 105.66 mm
• Max label width: 107.95 mm
• Max print length: 1.524 m
• Print speed: up to 304.80 mm/s
• Core diameter supported: 76.20 mm
• Max roll outer diameter: 215.90 mm
• Minimum label width: 4.01 mm; minimum label length: 3.18 mm
• Supported materials: 80+ Brady materials
• Connectivity: Bluetooth, Ethernet, USB, Wi‑Fi
• Memory: 512 MB RAM, 195 MB IFFS Flash
• Display: 7" colour LCD touchscreen (177.8 mm)
• Power: 100–240 V, 50–60 Hz
• Operating temp/humidity: 10°C–40°C; 10%–85% RH non-condensing
• Weight: 18.14 kg
• Dimensions (W×H×D): 292.10 × 370.84 × 530.86 mm
• Included software: Brady WorkStation Basic
• Included accessories: Serrated tear bar, T-20 wrench, power cord (UK), USB cable, QuickStart Guide
• Warranty: 2 years
