Laboratory labeler M410-KIT-UK-BWS

electricadhesive labelbarcode label

Product overview

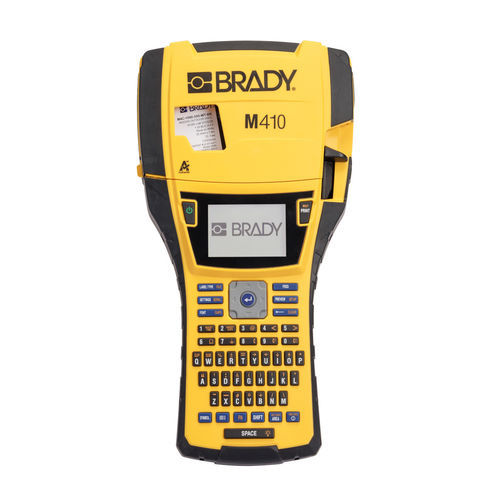

The M410 portable label printer kit (M410-KIT-EU-BWS) by Brady® is a field-ready thermal-transfer solution for on-site identification tasks. It supports edge-to-edge printing up to 25.40 mm and can be used standalone via the built-in QWERTY keypad or connected to a PC with the included Brady Workstation licence.

Features

• Print pre-sized or continuous labels up to 25.40 mm wide with edge-to-edge printing
• 110+ drop-in cartridges across 12+ purpose-built materials (polyester, vinyl, heat-shrink, reflective, self-laminating, etc.)
• Easy-swap cartridge locking with a view window for quick material checks
• Dual creation modes: on-device QWERTY or PC via Brady Workstation
• Backlit monochrome LCD for low-light operation
• Device drop resistance to 1.2 m and jobsite-visible exterior colours
• Ships with a Brady Workstation licence (Product & Wire ID, Safety & Facility ID, or Lab ID)

Applications

• Wire and cable labelling
• Electrical and component labelling
• Data and telecommunications identification
• Asset tracking and inventory/inspection labelling
• Facility identification and general identification
• Laboratory labelling

Key specifications

• Print technology: Thermal transfer, 300 dpi
• Max print/label width: 25.40 mm (min 6.10 mm)
• Max print length: 990.60 mm
• Print speed: 33.02 mm/s
• Internal memory: 48 MB (~25,000 labels)
• Display: Monochrome LCD, 240 x 160 pixels (34.92 x 50.80 mm)
• Battery: Rechargeable NiMH 1200 mAh (installed), charge time 4 h
• Recommended usage per day: 250 labels

Dimensions & weight

• Dimensions (W x H x D): 152.40 mm x 292.10 mm x 88.90 mm
• Weight: 1.18 kg

Materials & compatibility

• Supported materials: BradyGrip® Polyester; FreezerBondz™ Polyester; Heat-shrink Polyolefin; Metallised Polyester; Nylon Cloth; Paper; Polyester; Polypropylene; Reflective Tape; Self-laminating Polyester; Self-laminating Vinyl; Vinyl; Vinyl Cloth
• Compatible cartridges / B-numbers: B-342, B-403, B-412, B-414, B-417, B-422, B-423, B-425, B-427, B-428, B-430, B-483, B-483A, B-488, B-498, B-499, B-581, B-584, B-595, B-7425, B-7641
• Software: Brady Workstation (licence included); Windows driver for 3rd party use

Printing & functionality

• Print functions: Auto format, Banner, Date/Time stamp, Fixed length, Mirror, Vertical, Print preview, Reverse, Serialisation
• Barcode symbologies: Code 128, Code 39 (more via Brady Workstation)
• Keyboard: Full QWERTY on-device; PC input supported
• Smart Cell: Automatic cartridge recognition and calibration
• Cutter: Single-hand manual straight cut with label retention

What’s included
Hardcase with M410 printer, rechargeable NiMH battery (installed), AC adapter, B-595 vinyl label cartridge, magnet, utility hook, quick start guide, USB cable, Brady Workstation licence, USB flash drive with driver and manual.

Compliance & warranty

• Approvals: CE, UKCA
• RoHS: Compliant with 2011/65/EU (with exemptions)
• REACH: Contains an SVHC (candidate list date: 04 February 2026)
• Warranty: 2 years
