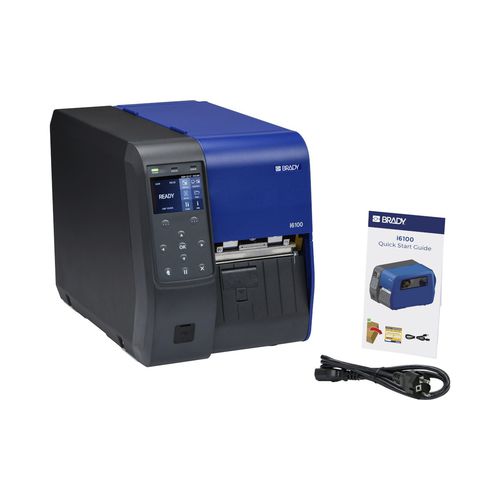

Laboratory labeler I6100-300-UK-BWS

electricbarcode labelfor bar code labels

Product overview
The i6100 label printer is designed for mid-to-high volume industrial labelling workflows. It supports direct thermal and thermal transfer printing at 300 dpi with a maximum print width suitable for labels up to 114 mm. Brady Workstation Design & Print Pro is included.

Highlights

• Supports a wide range of media types for general identification, wire/cable, electrical, laboratory and inventory applications
• Print speed up to 254 mm/s — recommended for up to 4,000 labels/day
• Industrial chassis with aluminium components for on-site use
• Colour LCD and keypad for local configuration
• Includes Brady Workstation Design & Print Pro software license

Key features

• Continuous and die-cut label handling
• Applications: barcode labelling, component/equipment labelling, data & telecommunications, electrical identification, inventory & inspection, laboratory labelling, wire & cable labelling
• Monocolour printing
• Max. label width: 114.00 mm
• Print technologies: Direct Thermal, Thermal Transfer
• Recommended daily usage: 4,000 labels
• Resolution: 300 dpi
• Stand-alone and PC-peripheral printing modes

Key characteristics
Article Number: 324882
Order Reference: i6100-300-UK-BWS
Total qty per pack: 1 Piece(s) / Box
Minimum order quantity: 1
Brand: Brady®
Trade name: i6100 Label Printer
Compatible ribbon series: R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6400, R6600, R6700, R6800
Country of origin: Korea (the Republic of)

Dimensions
Width: 269.00 mm
Height: 324.00 mm
Depth: 490.00 mm
Weight: 13.98 kg
Core diameter: 76.20 mm
Display size: 88.90 mm
Minimum label height: 4.75 mm
Overall: 269.00 mm (W) x 324.00 mm (H) x 490.00 mm (D)

Material characteristics
Supported media: direct thermal paper; FreezerBondz™ polyester; heat-shrink polyolefin; metallic; non-metal polyester; metallised polyester; metallised polyester with polyester overlaminate; nylon cloth; paper; polyester; polyimide; polyolefin; repositionable paper; self-laminating polyester; self-laminating vinyl; StainerBondz™ polyester; static dissipative polyester; tamper-evident metallised polyester; tamper-evident polyester; vinyl; vinyl cloth; water-dissolvable paper; water-indicating polyester/paper laminate
Colours (consumables examples): Blue, Grey

Product features
Battery type: Internal, non-removable lithium-manganese (shipped installed)
Battery weight (metric): 3.200
Media sensors: Black mark, gap sensor, head open, notch, reflective sensor, ribbon end, see-through
Language support: English, French, German, Spanish
Calibration: Manual
Connectivity: Ethernet, RS232, USB 2.0, USB Host
Custom labels: Yes
Cutter: None (auto cutter accessory available)
Display: Colour LCD screen
Hardware options: Auto cutter, peel & present, cleaning swabs
Internal memory: 512 MB SDRAM, 512 MB Flash
Barcode symbologies: Extensive 1D & 2D support (Code 39, Code 128, EAN, UPC, GS1 DataBar, QR, Data Matrix, PDF417, MicroPDF417, MaxiCode, Aztec, Codabar, Codablock, etc.)
Operating humidity: 10%–85% RH (non-condensing)
Operating system compatibility: Windows® 10, Windows® 11, Windows® Server 2019, Windows® Server 2022
Operating temperature: 5°C–40°C
Power source: AC adaptor (100–240 V, 50–60 Hz)
Storage humidity: 20%–85% RH (non-condensing)
Storage temperature: -20°C–60°C
Units: Inches, Millimetres, Points

Printing specifications
Print technology: Direct Thermal, Thermal Transfer
Print speed: 254.00 mm/s
Colour capability: Monocolour
Resolution: 300 dpi
Max. label width: 114.00 mm
Max. liner width: 114.00 mm
Recommended usage per day: 4,000 labels
Max. print width: 105.70 mm
Max. print length: 2.50 m
Max. roll outer diameter: 203.00 mm
Max. label thickness: 0.30 mm
Min. label width: 4.00 mm
Min. label length: 4.75 mm
Programming language: Built-in ZPL emulator

Compatibility
Label types: Continuous, Die-cut
Software compatibility: Brady Workstation; Windows drivers for third-party software
Supported B-numbers and media prefixes: B-109, B-312, B-338, B-342, B-348, B-350, B-388, ...; prefixes 2HT-, 3HT-, APL-, DR-, DT-, HX-, LSZH-, PS-, THT-, THTEL-, XTHT-, ZH-

What's included
Contents: i6100 printer, Brady Workstation Design & Print Pro license, Quick-start Guide, UK power plug
Warranty: 2 years
Software package: License for Brady WorkStation software suites

Compliance
UNSPSC: 45101519
RoHS: contact supplier for details
REACH SVHC: Part contains an SVHC
REACH candidate list date: 25 June 2025
Approvals: CE, FCC, UL
Shipping markets: multiple European and regional markets (see product page for eligible countries)

Technical specifications (summary)

• Model: i6100 Label Printer
• Resolution: 300 dpi
• Max print speed: 254 mm/s (recommended up to ~4,000 labels/day)
• Max label width: 114.00 mm (max print width 105.70 mm)
• Print technologies: Direct Thermal & Thermal Transfer
• Connectivity: Ethernet, RS232, USB 2.0, USB Host
• Memory: 512 MB SDRAM, 512 MB Flash
• Display: 88.90 mm colour LCD with keypad
• Dimensions (W x H x D): 269 x 324 x 490 mm
• Weight: 13.98 kg
• Accessories: Auto cutter, Peel & Present, Cleaning swabs
• Included software: Brady Workstation Design & Print Pro
• Warranty: 2 years
