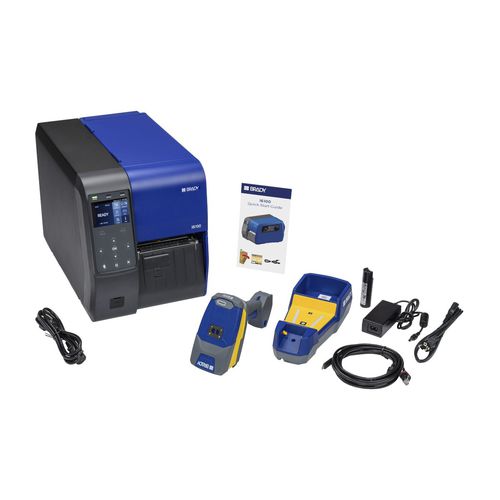

Laboratory labeler I6100-V3200-KIT-UK

high-speedbarcode labelfor bar code labels

Overview
Reliable and precise, the i6100 label printer is designed for medium-to-high volume and performance labelling tasks in industrial environments. Supplied with Brady Workstation basic Design & Print suite and a kit including the wireless V3200 barcode reader, Bluetooth dock, battery and cables.

Benefits

• Print on a wide range of materials to cover medium-to-high performance labelling needs.
• High print speed (254 mm/s) enabling up to 4,000 labels per day.
• Durable aluminium housing built for industrial use.
• Easy adjustment of print settings via the LCD screen and keypad.
• Includes Brady Workstation Design & Print (basic) software.
• V3200 barcode reader delivers consistent, accurate reads across skill levels.
• Cortex Decoder technology improves reading of very small barcodes and glossy or difficult surfaces.
• Wireless operation with Bluetooth range up to 100 m and battery capacity for approx. 100,000 reads on a charge.

Key applications
Barcode labelling; Component and equipment identification; Wire and cable labelling; Electrical labelling; Laboratory labelling; Inspection and stock identification; Telecom/datacom labelling; General identification

Main specifications
Print without PC connection: Standalone & connected
Colour capability: Monochrome
Max label width: 114.00 mm
Resolution: 300 dpi
Print technology: Thermal transfer, Direct thermal
Recommended daily use: 4000 labels

Specifications (excerpt)
Minimum order quantity: 1
Item number: 324892
Product kit reference: I6100-V3200-KIT-EU
Total quantity per pack: 1 Piece(s) / Box
Commercial name: i6100 Label Printer
Brand: Brady®
Compatible ribbon ranges: R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6400, R6600, R6700, R6800
Country of origin: Korea (the Republic of)

Dimensions
Dimensions (W x H x D): 269.00 mm x 324.00 mm x 490.00 mm
Weight: 13.98 kg
Media core diameter: 76.20 mm
Display size: 88.90 mm
Minimum label height: 4.75 mm

Materials & consumables
Supported materials: Paper; Removable paper; Water-soluble paper; Direct thermal paper; Polyester (various including antifraud, metallized, FreezerBondz™, StainerBondz™); Polyimide; Polyolefin (incl. heat-shrink); Nylon fabric; Cloth vinyl; Vinyl; Self-laminating vinyl
Consumable colours (optional): Blue, Grey

Product hardware features
Battery type: Lithium manganese, internal, non-removable (supplied installed)
Battery weight: 63.000 g
Media sensors: Cover open; Gap sensor; Reflective sensor; Notch; Ribbon end; Black mark; Transparent
Available languages: German, English, Spanish, French
Calibration: Manual (manual calibration recommended for optimal performance)
Connection options: USB host, Ethernet, RS232, USB 2.0
Display type: Colour LCD
Hardware options: Peel-off module; Cleaning swabs; Auto-cutter (optional)
Internal memory: 512 MB SDRAM, 512 MB Flash
Barcode symbologies supported: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, MSI, POSTNET, UPC-A, UPC-E, GS1 DataBar, Aztec, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR code, Composite Codes, Code 49, Codablock, and other 1D/2D
Operating humidity: 10% - 85% RH (non-condensing)
Operating temperature: 5°C - 40°C
Supported OS: Windows 10, Windows 11, Windows Server 2019, Windows Server 2022

Print specifications
Print speed: 254.00 mm/s
Max print width: 105.70 mm
Max print length: 2.50 m
Max roll outer diameter: 203.00 mm
Max label thickness: 0.30 mm
Min label width: 4.00 mm
Programming language: Built-in ZPL emulator
Recommended duty cycle: 8 h/day, 5 d/week (estimated 4000 labels/day)

Compatibility & what's included
Software compatibility: Brady Workstation; Windows driver for third-party software
Supported Brady part numbers (examples): B-109, B-312, B-338, B-342, B-348, B-350, ... (over 2,000 standard references)
Included in the box: Brady Workstation Design & Print (basic); Quick start guide; EU power cord; V3200 wireless barcode reader; V1300 Bluetooth dock; V1200 Li-ion battery; 1 m USB cable; AC adapter
Warranty: 2 years

Compliance
Certifications/approvals: CE, FCC, UL
RoHS: Compliant with RoHS Directive 2011/65/EU
REACH: Product contains an SVHC (candidate list reference provided on product sheet)

Technical features / specifications

• Model: i6100
• Product kit reference: I6100-V3200-KIT-EU
• Price (excl. VAT) shown on product page: 1,749.00 EUR
• Units: 1 piece / box
• Technology: Thermal transfer / Direct thermal
• Resolution: 300 dpi
• Print speed: 254 mm/s
• Max media width: 114 mm (max print width 105.7 mm)
• Weight: 13.98 kg
• Power: AC adapter 100 - 240 V @ 50 - 60 Hz
• Connectivity: USB, Ethernet, RS232, Bluetooth (for V3200 reader)
• Included accessories: V3200 reader, V1300 dock, V1200 battery, USB cable, AC adapter
• Warranty: 2 years
