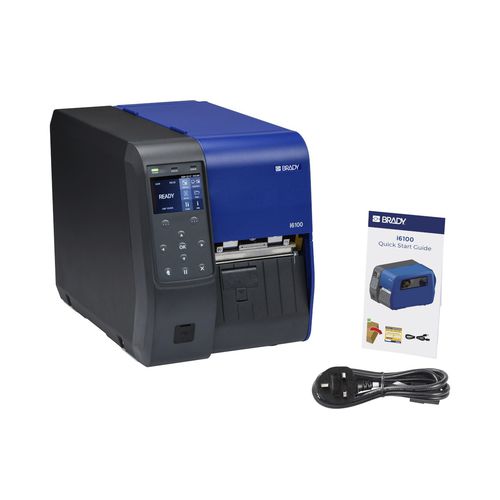

Direct thermal label applicator printer I6100-300-UK-BWS

thermal transferfor bar code labelsbarcode label

Description
The i6100 label printer delivers industrial-grade printing for medium to high volumes and mid-to-high performance needs. Designed for workshop and production environments, it provides 300 dpi resolution and versatile media compatibility.

Key benefits

• Prints on a wide range of media to cover diverse industrial labeling needs.
• High print speed (254 mm/s) enabling up to 4,000 labels per day.
• Durable aluminum chassis engineered for industrial environments.
• Easy parameter adjustments via color LCD and keypad.
• Supplied with Brady Workstation "Design & Print Pro" suite for label creation and workflow integration.

Main features

• Applications: barcode labeling, component & equipment identification, wire & cable labeling, electrical labeling, laboratory labeling, inspection & inventory identification, telecom/datacom, general identification.
• Continuous / die-cut: Continuous and die-cut media supported.
• Standalone / PC printing: Standalone & peripheral modes.
• Color capacity: Monochrome.
• Max label width: 114.00 mm.
• Resolution: 300 dpi; Print speed: 254 mm/s; Recommended daily usage: 4000 labels.

Specifications (excerpt)
Minimum order quantity: 1
Article number: 324881
Manufacturer reference: i6100-300-EU-BWS
Total quantity per package: 1 Piece / Box
Brand: Brady®
Commercial name: i6100 Label Printer
Ribbon series: R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6400, R6600, R6700, R6800
Country of origin: Korea (the Republic of)
Dimensions (W x H x D): 269.00 mm x 324.00 mm x 490.00 mm
Weight: 13.98 kg
Core diameter (mandrel): 76.20 mm
Display size: 88.90 mm
Min. label height: 4.75 mm
Supported media: paper, removable paper, water-soluble paper, direct thermal paper, polyester (various types), polyester FreezerBondz™, metallized polyester, polyimide, polyolefin, heat-shrink polyolefin, nylon fabric, vinyl, self-laminating vinyl, and more
Color: Blue, Grey
Battery type: Internal non-removable lithium-manganese (battery weight: 3.200)
Media sensors: Cover open, Gap sensor, Reflective sensor, Notch, Ribbon end, Black mark, Transparent
Display languages: German, English, Spanish, French
Calibration: Manual
Connection options: USB host, Ethernet, RS232, USB 2.0
Custom labels available: Yes
Display type: Color LCD
Hardware options: Peel & Present, cleaning swabs, automatic cutter
Battery shipped installed in equipment
Interface type: Buttons, PC
Internal memory: 512 MB SDRAM, 512 MB Flash
Supported symbologies: Codabar (NW-7), Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2 of 5, Interleaved 2 of 5, MSI, POSTNET, UPC-A, UPC-E, GS1 DataBar, PDF417, QR Code, Data Matrix, Aztec, MaxiCode, MicroPDF417, and other 1D/2D formats
Operating humidity: 10% - 85% RH (non-condensing)
Operating temperature: 5°C - 40°C
Power supply: AC adapter (100 - 240 V @ 50 - 60 Hz)
Shipped with battery: Yes
Storage humidity: 20% - 85% RH (non-condensing)
Storage temperature: -20°C - 60°C
Units: Millimetres, Points, Pouches
Max print width: 105.70 mm
Max print length: 2.50 m
Max roll outer diameter: 203.00 mm
Max label thickness: 0.30 mm
Min label width: 4.00 mm
Programming language: Built-in ZPL emulator
Stock references indicated: Over 2,000 standard references
Certifications / compliance: CE, FCC, UL

What is included
i6100 printer; Brady Workstation "Design & Print Pro" software license; quick start guide; EU power plug. Warranty: 2 years

Technical specifications / compliance

• Model: i6100 Label Printer
• Resolution: 300 dpi
• Print technology: Direct thermal & thermal transfer
• Print speed: 254 mm/s
• Max label width: 114.00 mm (max liner width 114.00 mm)
• Max print width: 105.70 mm
• Max print length: 2.50 m
• Min label width: 4.00 - 4.75 mm (varies by media)
• Max roll outer diameter supported: 203.00 mm
• Max label thickness: 0.30 mm
• Memory: 512 MB SDRAM, 512 MB Flash
• Interfaces: Ethernet, Host USB, RS232, USB 2.0
• Display: Color LCD
• Dimensions (W×H×D): 269 × 324 × 490 mm
• Weight: 13.98 kg
• Power: 100-240 V, 50-60 Hz (AC adapter)
• Recommended use: approx. 4,000 labels/day
• Supported media: wide range including paper, polyester, vinyl, polyimide, polyolefin
• Supported OS: Windows 10, Windows 11, Windows Server 2019, Windows Server 2022
• Certifications: CE, FCC, UL
