Thermal transfer printer I7100-300-UK-BWS

direct thermalfor plasticsfor labels

Description

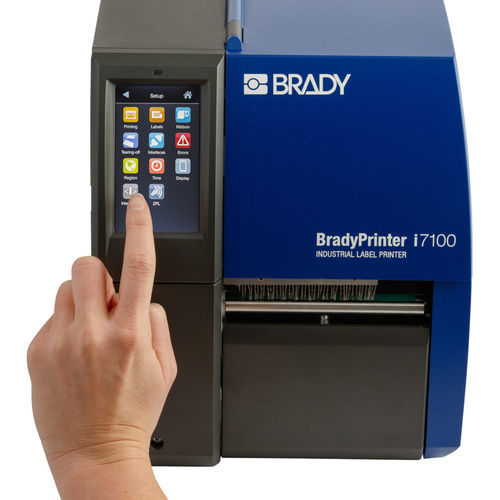

The BradyPrinter i7100 is an industrial thermal transfer benchtop printer designed for reliable, high-volume printing across a wide range of materials. Suited to aerospace, defence, mass transit, electronics, automotive, logistics, electrical, voice/datacom and laboratory environments, it prints accurately on sleeves, tags, labels, tapes and cable markers.

Benefits

• Print on the widest range of materials, including difficult-to-print substrates
• Peel configuration automatically separates labels from the liner for inline use
• Ultra-sharp printing on labels as small as 4 mm
• Engineered for thousands of labels per day with continuous operation capability
• Easy-to-use colour touch screen for rapid configuration and status feedback
• Supplied with a Brady Workstation licence (Product & Wire ID, Safety & Facility ID or Lab ID) for fast label creation

Key Features

• Applications: barcode labelling, PCB labelling, component & equipment labelling, data/telecom labelling, electrical labelling, inventory & inspection, laboratory labelling, wire & cable labelling
• Colour capability: Monocolour
• Resolution: 300 dpi
• Max. label width: 109.98 mm
• Min. label width: 4.00 mm
• Max. print length: 249.00 mm
• Recommended usage per day: 7000 labels
• Connectivity: USB, Ethernet, Serial, I/O; Bluetooth and Wi‑Fi optional

Key characteristics
Article Number: 322871
Order Reference: i7100-300-UK-BWS
Total qty per pack: 1 Piece(s)
Minimum order quantity: 1
Brand: Brady®
Trade name: BradyPrinter i7100
Ribbon series: Heatex, R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6300, R6400, R6600, R6700, R6800
Additional information: Pre-installed anti-static brush dissipates electrostatics after printing
Country of origin: Germany

Dimensions
Width: 251.46 mm
Height: 289.56 mm
Depth: 459.74 mm
Weight: 10 kg
Display size: 52.00 x 92.00 mm
Minimum label height: 6.00 mm
Overall dimensions: 251.46 mm (W) x 289.56 mm (H) x 459.74 mm (D)

Material characteristics
Supported materials include: diesel-resistant heat-shrink polyolefin sleeves; high-temperature heat-shrink PVDF sleeves; FreezerBondz™ polyester; metallised and non-metallised polyester; polyimide; nylon cloth; various vinyls (including tamper-evident and self-laminating); polyethylene foam laminate polyester; direct thermal paper and other specialist substrates
Colour options: Blue, Grey

Product features
Battery type: Coin/button cell (shipped installed)
Media sensors: Black mark, gap, notch, reflective sensor
Language support: Multiple languages (interface options available)
Calibration: Manual calibration for optimal performance
Display type: Colour LCD touch screen
Internal memory: 256 MB RAM; 50 MB IFFS Flash; SD card support up to 512 GB
Hardware options: media adapter (101.60 mm), auto cutter, extended peel plate, rewinders, I/O interface accessories, WLAN USB stick with antenna, cleaning swabs and more

Printing specifications
Print technology: Thermal transfer and direct thermal
Print speed: up to 150 mm/s
Resolution: 300 dpi
Max. print width: 105.66 mm
Max. liner width: 114.05 mm
Max. roll outer diameter: 204.98 mm
Maximum label thickness: 1.00 mm
Font styles & barcodes: wide 1D/2D symbology support including Code 128, Code 39, GS1-128, EAN/UPC, QR, Data Matrix, PDF417, Aztec and more
Operation: Stand-alone or peripheral; designed for 24/7 operation

Compatibility
Continuous vs die-cut: Bulk, continuous, custom, die-cut
Software compatibility: Brady Workstation; Windows-based driver for third-party software use
Supported media prefixes and B-numbers: wide compatibility across Brady consumables (see product documentation for full list)

What's included
Printer in cardboard box; EU power cord; 2 empty ribbon cores; USB cable; product CD with driver; multilingual user manual; configuration manual (English); printed quick start (English); Brady Workstation licence
Warranty: 2 years

Compliance
UNSPSC: 45101519
RoHS: Compliant with 2011/65/EU with exemptions
REACH SVHC: Part contains an SVHC (see product documentation)
Approvals: CCC, CE, FCC class A, UL

Technical summary

• Model: BradyPrinter i7100
• Resolution: 300 dpi
• Print speed: up to 150 mm/s
• Max. label width: 109.98 mm (max print width 105.66 mm)
• Min. label width: 4.00 mm
• Recommended daily volume: 7000 labels
• Connectivity: USB, Ethernet, Serial, I/O; optional Bluetooth/Wi‑Fi
• Power: AC adaptor 100–240 V, 50–60 Hz
• Weight & dimensions: 10 kg; 251.46 x 289.56 x 459.74 mm
• Warranty: 2 years
