Laboratory labeler BBP12-UK-U-BWS

automaticelectricbarcode label

Overview
The BBP®12 label printer is a compact thermal-transfer system designed for industrial labeling tasks that require high resolution and flexible media handling.

Key benefits

• Single device supports a wide range of basic label types, reducing equipment count and downtime.
• Compatible with over 800 label varieties including external-feed bulk rolls and custom parts for wire marking, asset tracking and general identification.
• Small-core media rolls and ribbon options speed loading and minimize change-over time.
• Centering ribbon spindle reduces ribbon wrinkle and improves print consistency.
• Compact footprint suitable for bench or workstation installation.
• Ships with a Brady Workstation licence to create product, wire, safety and lab labels and signs.

Applications

• Asset tracking
• Barcode labeling
• PCB and component labeling
• Wire and cable identification
• General facility and equipment identification

Materials and consumables compatibility

• Supported media: direct thermal paper; polyester variants (FreezerBondz™, StainerBondz™, metallised, self-laminating); vinyl, tamper-resistant vinyl, nylon cloth; polyimide; polyolefin (including heat-shrink); polypropylene; polyvinylfluoride; repositionable paper.
• Compatible ribbon series: R4300, R4400, R4500, R4900, R6000HF, R6100, R6200, R6400, R6600.

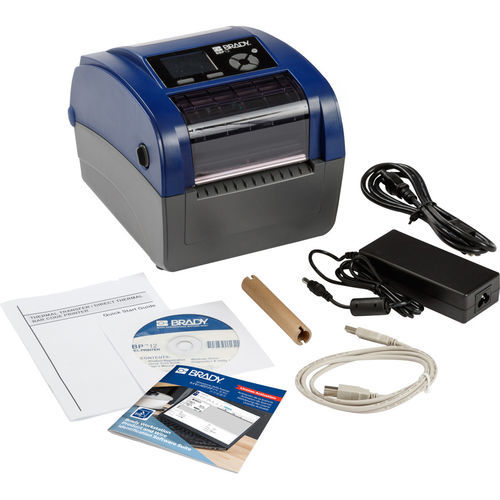

Included

• BBP®12 printer packed in cardboard box
• External unwinder (media holder), USB cable, power cord
• Product CD, Quick Start Guide
• License for Brady Workstation software suites

Warranty & compliance

• Warranty: 1 year
• Approvals / compliance: CE, cUL, EAC, RoHS, UL
• RoHS status: Compliant with 2011/65/EU (with exemptions)

Technical specifications

• Model: BBP®12
• Print technology: Thermal Transfer
• Resolution: 300 dpi
• Print speed: 101.60 mm/s
• Max label width: 116.84 mm (max print width: 105.41 mm)
• Max print length: 11.43 m
• Min label width: 6.00 mm; Min label height: 10.00 mm
• Max roll outer diameter: 127.00 mm; Core diameter: 25.40 mm
• Memory: 128 MB Flash, 64 MB SDRAM; SD card up to 32 GB
• Connectivity: Ethernet, Serial, USB
• Power: AC adaptor 110–240 V
• Display: Colour LCD (320 x 240 px)
• Weight & dimensions: 2.3 kg; 202.95 mm (W) x 190.50 mm (H) x 259.33 mm (D)

Printing specifications

• Print rotation: 0°, 90°, 180°, 270°
• Max label thickness: 0.19 mm
• Max roll size and media types: bulk, continuous, custom, die-cut
• Programming language: Built-in ZPL emulator
• Recommended daily usage: up to 1000 labels

Compatibility & software

• Software: Brady Workstation; Windows drivers for 3rd-party software
• OS compatibility: Windows® 7, 8, 10, 11
• Barcode symbologies supported: Code 128, Code 39, EAN-13/8, GS1-128, QR code, DataMatrix, PDF417, Aztec and more
