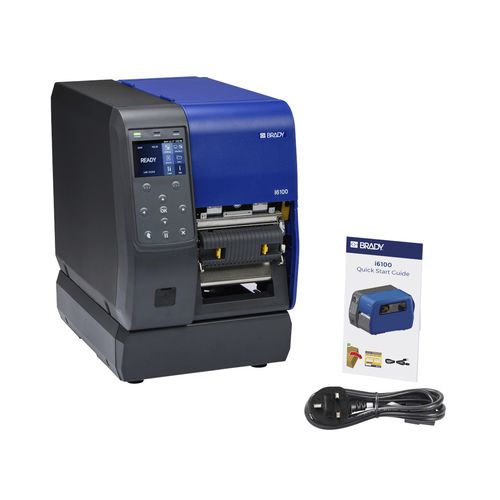

Thermal transfer label applicator printer I6100-300-P-UK-BWS

direct thermalbarcode labelmonochrome

Product overview
The Brady® i6100 is a heavy‑duty, high‑accuracy industrial label printer designed for mid-to-high volume labelling tasks. It supports Direct Thermal and Thermal Transfer printing at 300 dpi and is built for continuous operation in industrial environments.

Key benefits

• Wide material compatibility to cover general identification, wire/cable, laboratory, electrical and inventory labelling needs
• Peel configuration automatically peels labels from the liner for efficient application
• High print speed (up to 254 mm/s) — typical throughput up to 4,000 labels/day
• Sturdy aluminium frame suited to industrial use
• Intuitive colour LCD and keypad for quick setting changes
• Includes Brady Workstation Design & Print Pro for label design and production

Key features

• Label types: Continuous and die-cut
• Applications:
  • Barcode labelling
  • Component and equipment labelling
  • Data & telecommunications labelling
  • Electrical labelling
  • General identification
  • Inventory and inspection labelling
  • Laboratory labelling
  • Wire and cable labelling
• Colour capability: Monocolour
• Max. label width: 114.00 mm (max. print width: 105.70 mm)
• Print technology: Direct Thermal, Thermal Transfer
• Resolution: 300 dpi
• Recommended usage per day: up to 4,000 labels
• Stand-alone printing: Stand-alone & Peripheral modes

Technical specifications (summary)

• Brand: Brady®
• Trade name: i6100 Label Printer
• Article number: 324887
• Order reference / SKU: I6100-300-P-UK-BWS
• Quantity per pack: 1 piece / box — Minimum order quantity: 1
• Country of origin: Korea (the Republic of)
• Dimensions (W x H x D): 269.00 mm x 324.00 mm x 490.00 mm — Weight: 13.98 kg
• Core diameter: 76.20 mm — Display size: 88.90 mm
• Minimum label height: 4.75 mm — Minimum label width: 4.00 mm
• Supported materials (selected): Direct Thermal Paper; FreezerBondz™ Polyester; Heat-shrink Polyolefin; Metallic and Metallised Polyester; Polyester (self-laminating, tamper-evident variants); Nylon cloth; Paper; Polyimide; Polyolefin; Repositionable paper; Vinyl; Water-dissolvable paper; others
• Colours (housing): Blue, Grey
• Battery: Internal non-removable lithium-manganese (shipped installed)
• Media sensors: Black mark, gap, notch, reflective, head open, ribbon end, see-through
• Language support (UI): English, French, German, Spanish
• Calibration: Manual
• Connectivity: Ethernet, RS232, USB 2.0, USB Host
• Cutter: None (auto cutter available as accessory)
• Display type: Colour LCD screen
• Hardware options: Auto cutter, Cleaning swabs, Peel & Present
• Memory: 512 MB SDRAM, 512 MB Flash
• Supported barcodes (selected): Code 39, Code 128, EAN-13, UPC-A, Interleaved 2 of 5, GS1 DataBar, QR Code, Data Matrix, PDF417, Aztec, MaxiCode, MicroPDF417
• Operating temperature: 5°C - 40°C — Operating humidity: 10% - 85% RH (non-condensing)
• Power source: AC adaptor (100 - 240 V @ 50 - 60 Hz)
• Print speed: up to 254.00 mm/s — Max. print length: 2.50 m — Max. roll outer diameter: 203.00 mm — Max. label thickness: 0.30 mm
• Programming language: Built-in ZPL emulator — Compatibility: Brady Workstation, Windows drivers
• Hours of operation (typical): 8 hours/day, 5 days/week — Warranty: 2 years

What's included

• i6100 printer, Brady Workstation Design & Print Pro software license, Quick-start Guide, UK power plug

Compliance

• CE, FCC, UL
