Thermal transfer label applicator printer I6100-300-P-UK

direct thermalbarcode labellaboratory

Product overview
The i6100 industrial desktop label printer from Brady® delivers precise thermal transfer and direct thermal printing for mid- to high-volume labelling. It supports a wide range of materials and an optional Peel & Present configuration for automated label peeling.

Featured benefits

• Supports many media types for industrial, electrical, laboratory and cable identification
• Peel configuration automatically peels labels from the liner for fast application
• Print speed up to 254 mm/s for up to ~4,000 labels/day (recommended)
• Sturdy aluminium frame designed for industrial environments
• Easy configuration via colour LCD and keypad; ships with Brady Workstation Design & Print Essentials

Key Features

• Print technologies: Direct Thermal, Thermal Transfer
• Resolution: 300 dpi
• Print speed: 254 mm/s
• Max. label width: 114.00 mm; max. print width: 105.70 mm
• Recommended usage/day: 4,000 labels
• Media: Continuous and die-cut labels
• Applications: Barcode, component/equipment, wire & cable, electrical, labelling for inspection, inventory, tele/data

Specifications (key table)
Article Number: 324884
Order Reference: i6100-300-P-UK
Brand: Brady®
Trade Name: i6100 Label Printer
Ribbon Series: R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6400, R6600, R6700, R6800
Country of Origin: Korea (the Republic of)

Dimensions
Size (W x H x D): 269.00 mm x 324.00 mm x 490.00 mm
Weight: 13.98 kg
Core diameter: 76.20 mm
Display size: 88.90 mm
Min. label height: 4.75 mm

Material characteristics

• Supported materials include: Direct thermal paper; various polyesters (FreezerBondz™, metallised, self-laminating), polyimide, polyolefin (including heat-shrink), nylon cloth, vinyl, paper (including water-dissolvable, repositionable), tamper-evident and static-dissipative options
• Housing colours: Blue, Grey

Product features

• Battery: internal Li‑Mn (shipped installed)
• Media sensors: Black mark, Gap, Head open, Notch, Reflective, Ribbon end, See-through
• Connectivity: Ethernet, RS232, USB 2.0, USB Host
• Memory: 512 MB SDRAM, 512 MB Flash
• Barcode symbologies: wide 1D/2D support (Code 39, Code 128, EAN/UPC, GS1 DataBar, PDF417, Data Matrix, QR code, etc.)
• Display: Colour LCD; Interface: Buttons, PC
• Operating temp/humidity: 5°C–40°C; 10%–85% RH (non-condensing)

Printing specifications

• Print technology: Direct Thermal, Thermal Transfer
• Print speed: 254 mm/s
• Resolution: 300 dpi
• Max. print length: 2.50 m
• Max. roll outer diameter: 203 mm; max. label thickness: 0.30 mm
• Programming language: Built-in ZPL emulator

What’s included and warranty

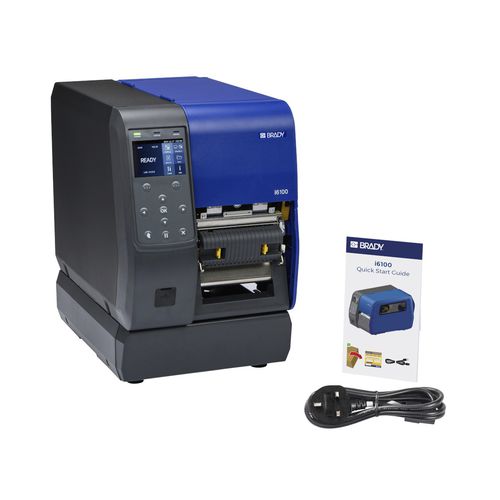

• Includes: i6100 printer, Brady Workstation Design & Print Essentials software, Quick-start Guide, UK power plug
• Warranty: 2 years

Notes
Designed for industrial use with broad consumable compatibility. Manual calibration is required for optimal performance. Optional hardware: auto cutter, Peel & Present, cleaning swabs.
